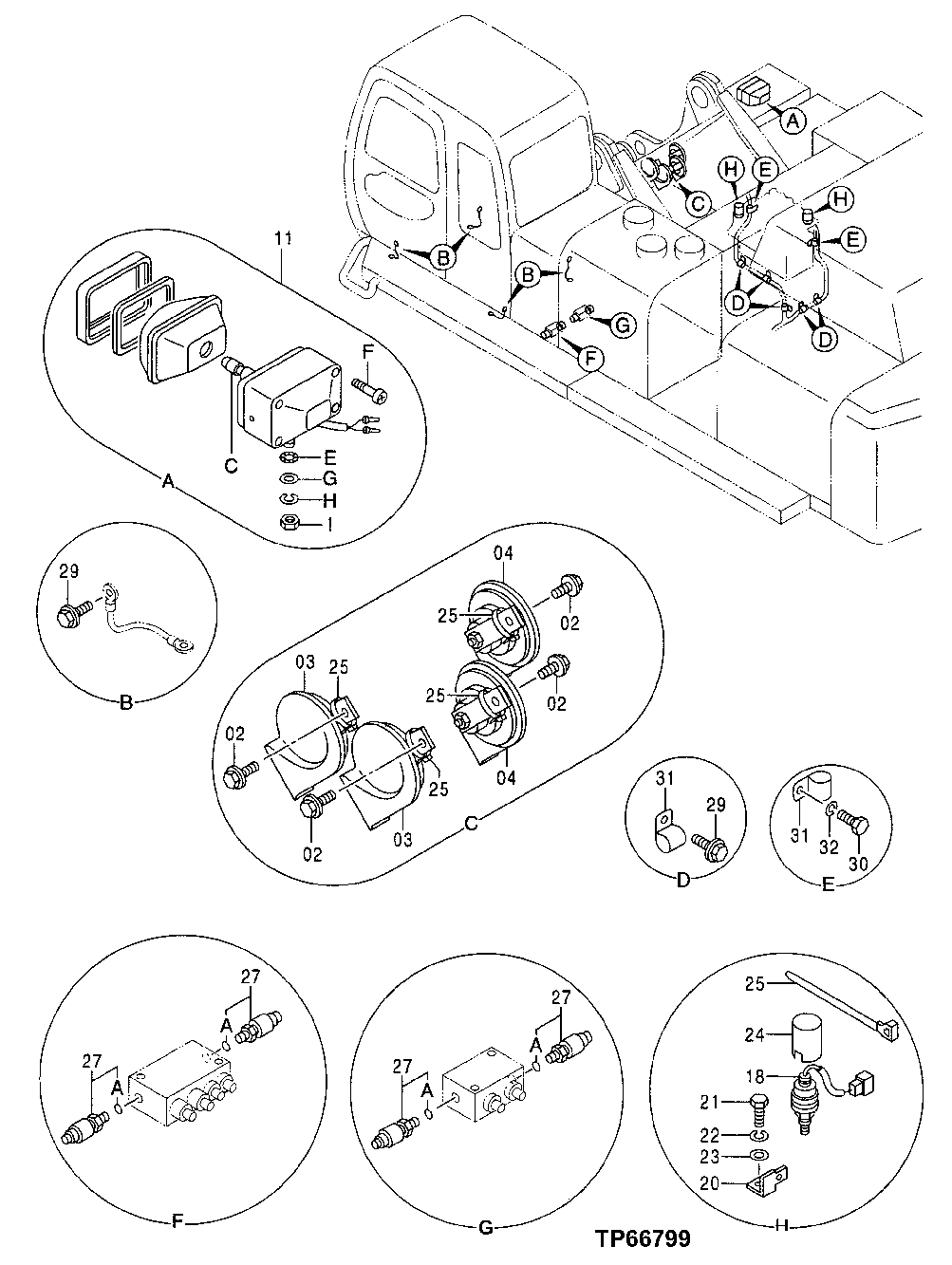

Запчасти John Deere 50 37 - ELECTRIC PARTS 1674 Wiring Harness And Switches

2

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

3

4341191

High Note Horn

SUB FOR AT184705

2шт.

4

4341190

High Note Horn

SUB FOR AT184706

2шт.

5

4254603

Wiring Harness

USE WITH 4341190; NOT ILLISTRATED

2шт.

11

4326800

Lamp

1шт.

11C

AT135758

Bulb

1шт.

11E

4307026

Washer

SUB FOR T144361

1шт.

11F

37H19

Screw

SUB FOR T144362 OR 4307027

1шт.

11G

24M7085

Washer

15 X 28 X 2.500 mm

1шт.

11H

12H317

Lock Washer

9/16"

1шт.

11I

14M7345

Nut

M14 SUB FOR J952014; SUB FOR TH103791

1шт.

18

Sensor

4381082 NLA, SUB FOR TH4381082

2шт.

20

4252767

Bracket

SUB FOR AT154206

2шт.

21

19M7923

Cap Screw

M6 X 12

2шт.

22

12M7006

Lock Washer

6 mm

2шт.

23

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

24

4386855

Cap

SUB FOR TH4386855

2шт.

25

H77698

Tie Band

2шт.

27

4254563

Pressure Switch

SUB FOR AT154212

4шт.

27A

CH19111

O-Ring

7.645 X 1.778 mm (0.301" X 0.070")

1шт.

29

19M7938

Cap Screw

M10 X 20

10шт.

12M7066

Lock Washer

10 mm

10шт.

30

19M8017

Cap Screw

M12 X 20

2шт.

31

4190261

Clip

SUB FOR TH109649

8шт.

32

12H301

Lock Washer

1/2"

2шт.
