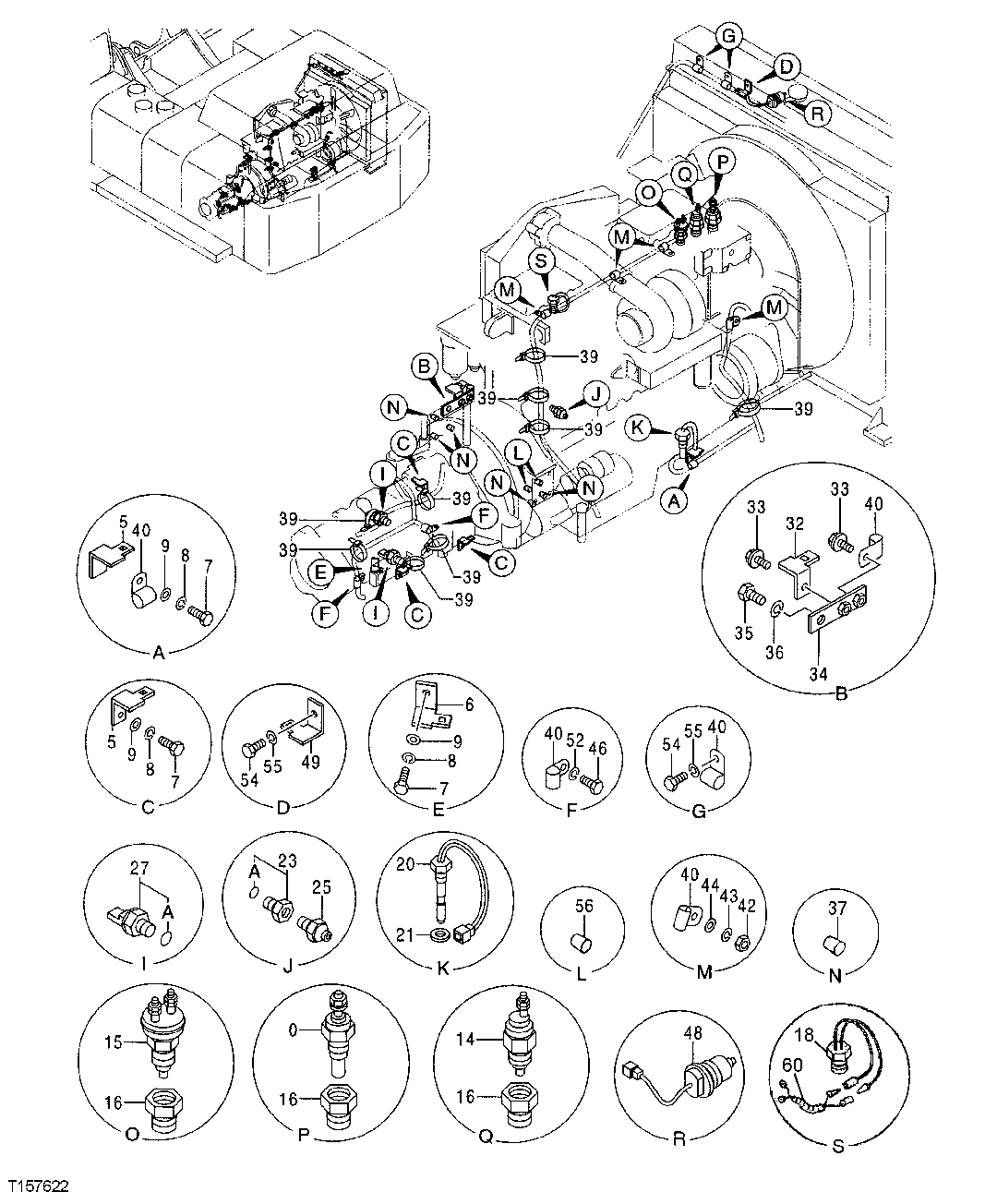

Запчасти John Deere 50 36 - Electric Parts 1674 Wiring Harness And Switches

0

4257129

Sensor

Engine Coolant Temperatu re Sensor SUB FOR AP34305

1шт.

5

4336874

Bracket

SUB FOR AT202391

4шт.

6

4252767

Bracket

SUB FOR AT154206

1шт.

7

19M7923

Cap Screw

M6 X 12

5шт.

8

12M7006

Lock Washer

6 mm

5шт.

9

24M7054

Washer

6.400 X 12 X 1.600 mm

5шт.

14

4149335

Switch

SUB FOR TH4149335; THERMO

1шт.

15

4375390

Switch

SUB FOR TH4375390; THERMO

1шт.

16

4087499

Adapter Fitting

SUB FOR AT202394

3шт.

18

4487038

Switch

SUB FOR 4271489; WHEN REPLACIN G 4271489, ALSO ORDER 4485007

1шт.

20

4270206

Switch

SUB FOR TH4270206; LEVEL

1шт.

21

A890022

Washer

SUB FOR TH102169

1шт.

23

4297309

Adapter Fitting

SUB FOR TH4297309

1шт.

23A

O-Ring

4298748NLA, SUB FOR TH4298748

1шт.

25

4099039

Pressure Switch

SUB FOR TH4099039; PRESSURE

1шт.

27

4436271

Sensor

SUB FOR AT175981 OR 4355012; PRESSURE

2шт.

27A

TH102560

O-Ring

15.800 X 2.400 mm (0.622" X 3/32")

1шт.

32

4257159

Bracket

SUB FOR AT154243

1шт.

33

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

34

9745938

Bracket

SUB FOR TH9745938

1шт.

35

19H1833

Cap Screw

5/8" X 1-1/4"

1шт.

36

12H294

Lock Washer

5/8"

1шт.

37

428028

Plug

SUB FOR AT121659

5шт.

39

H77698

Tie Band

13шт.

40

4190261

Clip

SUB FOR TH109649

10шт.

42

14H611

Nut

5/16"

4шт.

43

Washer

12M7065 NLA

4шт.

44

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

46

19M7872

Cap Screw

M12 X 25

2шт.

48

4259787

Switch

SUB FOR AT154937; LEVEL

1шт.

49

4257159

Bracket

SUB FOR 4336875

1шт.

52

12H301

Lock Washer

1/2"

2шт.

54

19M7938

Cap Screw

M10 X 20

3шт.

55

12M7066

Lock Washer

10 mm

3шт.

56

428028

Plug

SUB FOR AT121659

2шт.

60

4485007

Wiring Harness

USE WITH 4487038 SWITCH

1шт.
