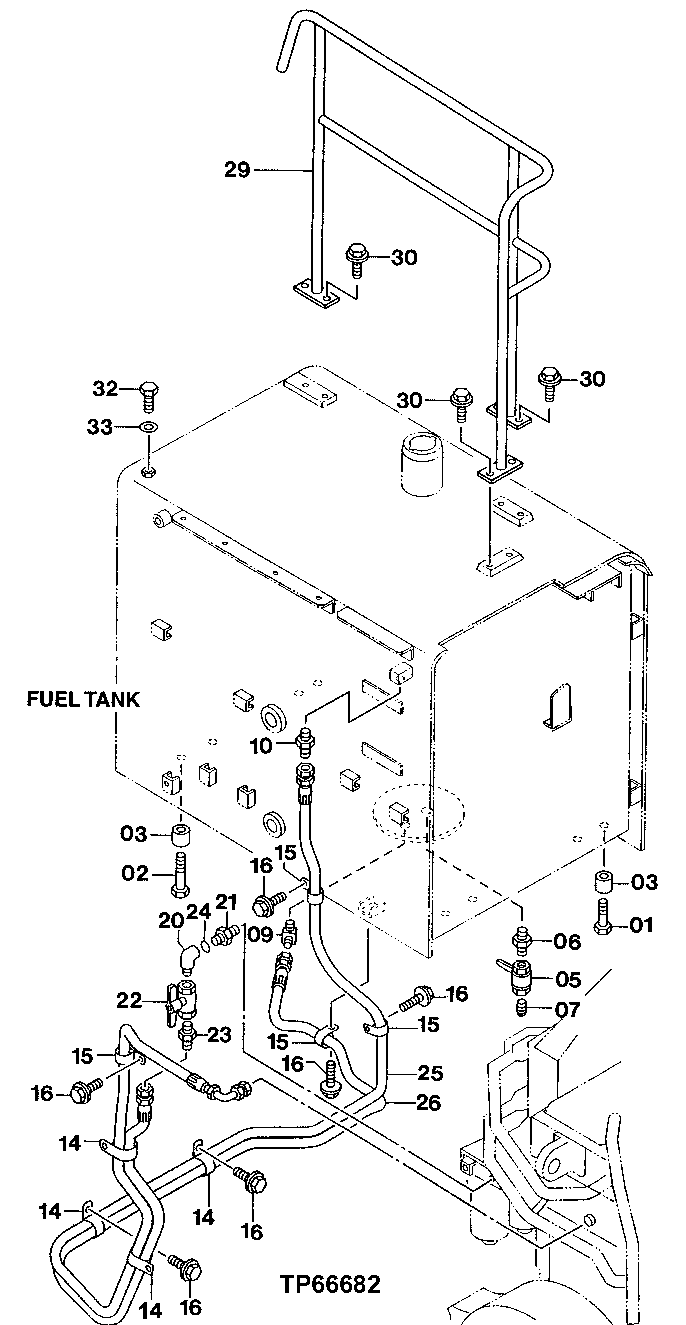

Запчасти John Deere 50 28 - FUEL PIPINGS 0560 External Fuel Supply Systems

1

THJ921880

Bolt

4шт.

2

19M8333

Cap Screw

M18 X 110

4шт.

3

4404209

Spacer

(SUB FOR TH4404209)

8шт.

5

4209782

Hand Operated Valve

(SUB FOR AT128432)

1шт.

6

94-1702

Adapter Fitting

(SUB FOR TH102949)

1шт.

7

94-2023

Fitting Plug

(SUB FOR TH100667)

1шт.

9

4187486

Elbow Fitting

(SUB FOR TH4187486)

1шт.

10

4187487

Fitting

(SUB FOR TH4187487)

1шт.

14

XCL-19

Hose Clamp

(SUB FOR TH110522 OR 4193848)

4шт.

15

T24432

Clamp

4шт.

16

19M7938

Cap Screw

M10 X 20

6шт.

12M7066

Lock Washer

10 mm

6шт.

20

94-0633

Elbow Fitting

(SUB FOR TH101968)

1шт.

21

4366569

Fitting

(SUB FOR TH4366569)

1шт.

22

4203434

Hand Operated Valve

(SUB FOR TH4203434)

1шт.

23

4320866

Fitting

(SUB FOR TH4320866)

1шт.

24

R26906

O-Ring

19.177 X 2.464 mm (0.755" X 0.097")

1шт.

25

4353329

Hydraulic Hose

(SUB FOR TH4353329)

1шт.

26

4353330

Hydraulic Hose

(SUB FOR TH4353330)

1шт.

29

7038222

Handrail

(SUB FOR 7030822)

1шт.

30

19M8011

Cap Screw

M12 X 30

6шт.

12H301

Lock Washer

1/2"

6шт.

24M7047

Washer

13 X 24 X 2.500 mm

6шт.

32

19M8231

Cap Screw

M12 X 16

1шт.

33

24M7047

Washer

13 X 24 X 2.500 mm

1шт.
