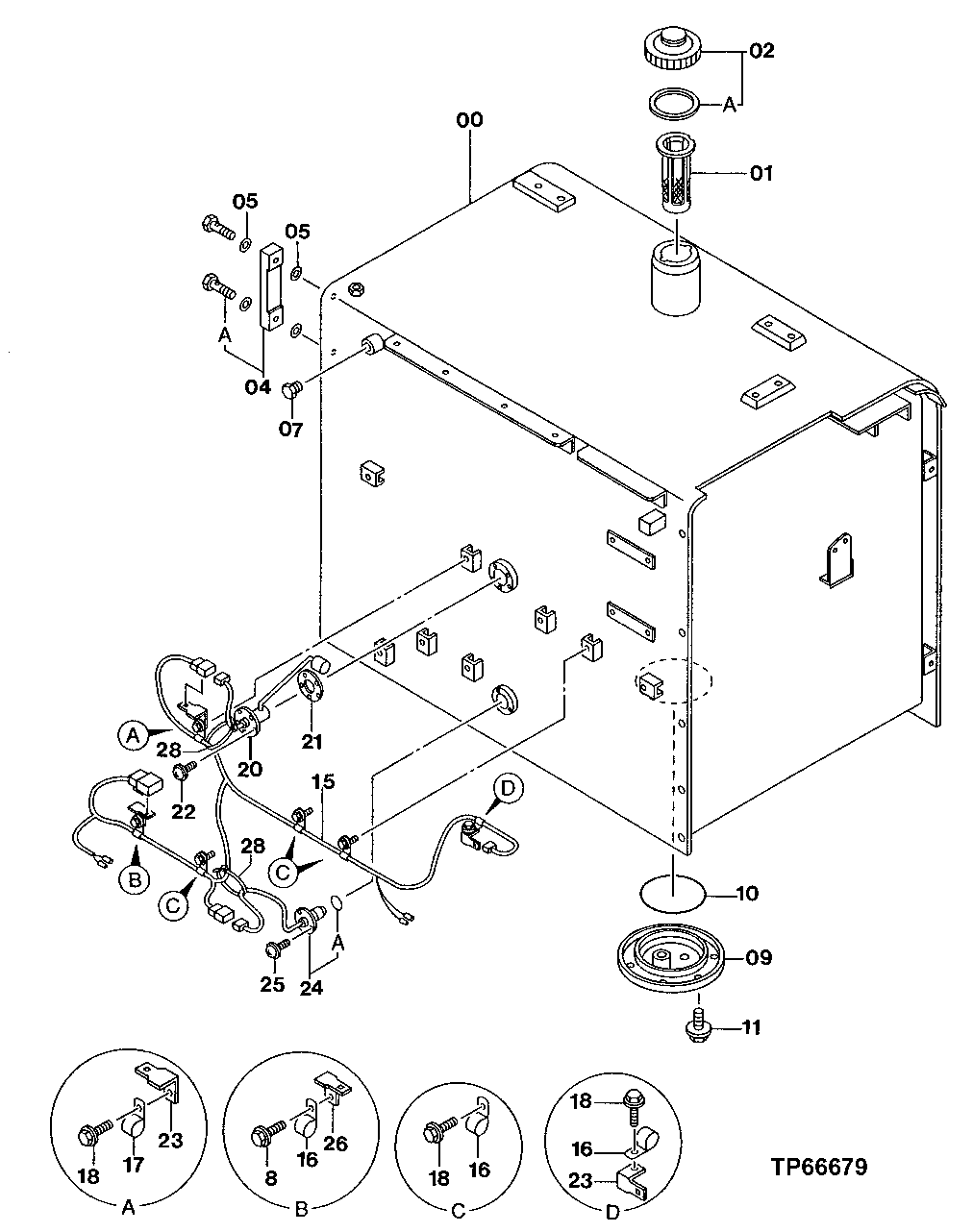

Запчасти John Deere 50 27 - Fuel Tank 0560 External Fuel Supply Systems

0

6014463

Fuel Tank

SUB FOR TH6014463

1шт.

1

4121496

Fuel Filter

SUB FOR TH100509

1шт.

2

4361638

Cap

KEY LOCKABLE, ORDER KEY SEPARATELY

1шт.

AT323462

Filler Cap

SUB FOR 4361638, CAN BE LOCKED W ITH PADLOCK, PADLOCK NOT INCLUDED

1шт.

2A

4168820

Packing

SUB FOR TH103384

1шт.

4

8033923

Level Gauge

SUB FOR TH108250

1шт.

4A

4100967

Bolt

SUB FOR TH101894

2шт.

5

449558

Washer

SUB FOR TH100675

4шт.

7

4187322

Plug

SUB FOR TH4187322

1шт.

9

8062320

Cover

SUB FOR TH8062320

1шт.

10

TH100679

O-Ring

159.300 X 5.700 mm (6.272" X 0.224")

1шт.

11

19M7402

Cap Screw

M10 X 25

6шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

6шт.

15

3073394

Wiring Harness

SUB FOR TH3073394

1шт.

16

4190275

Clamp

SUB FOR TH108598

5шт.

17

4190261

Clip

SUB FOR TH109649

1шт.

18

19M7402

Cap Screw

M10 X 25

6шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

6шт.

20

4660782

Float

SUB FOR AT154239 OR 4257128

1шт.

21

T211051

Gasket

SUB FOR U42323

1шт.

22

21M7278

Screw

M5 X 10

5шт.

23

4257159

Bracket

SUB FOR AT154243

2шт.

24

4129941

Fuel Sender

SUB FOR TH4129941

1шт.

24A

4141171

O-Ring

SUB FOR TH4141171

1шт.

25

Screw With Washer

J450512 NLA SUB FOR AT203685

3шт.

21M7158

Screw

M5 X 12

3шт.

12M7064

Lock Washer

5 mm

3шт.

26

4257159

Bracket

SUB FOR 4336875

1шт.

28

H77698

Tie Band

2шт.
