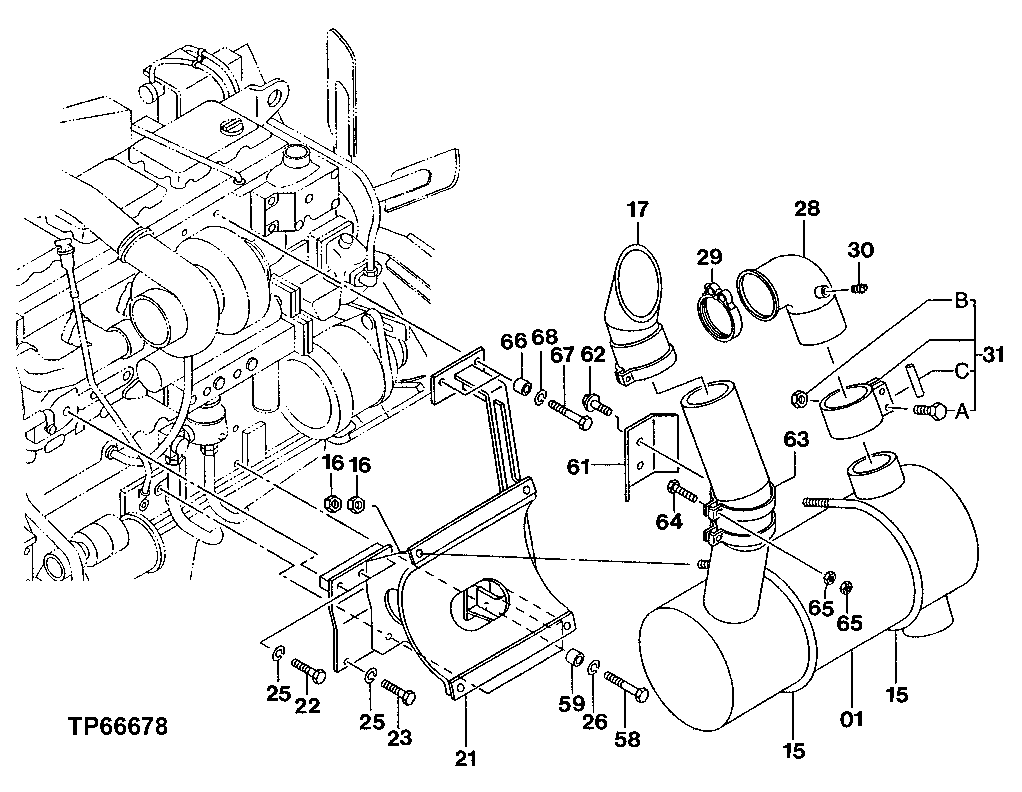

Запчасти John Deere 50 26 - Muffler 0530 External Exhaust Systems

1

4462760

Muffler

(SUB FOR 4346631)

1шт.

15

4346116

U-Bolt

(SUB FOR TH4346116)

2шт.

16

14M7275

Nut

M12

8шт.

17

7042943

Exhaust Pipe

(SUB FOR 4358064)(INCLU DES CLAMP AND HARDWARE)

1шт.

21

6015359

Bracket

(SUB FOR TH6015359)

1шт.

22

19H2644

Cap Screw

1/2" X 2-1/2"

3шт.

23

4070418

Bolt

(SUB FOR TH4070418)

1шт.

25

12H301

Lock Washer

1/2"

4шт.

26

12H304

Lock Washer

3/8" (SUB FOR THJ219083 OR 12H304)

4шт.

28

8063801

Exhaust Pipe

(SUB FOR TH8063801)

1шт.

29

4S00286

Hose Clamp

(SUB FOR TH4223909)

1шт.

30

T115963

Fitting Plug

1шт.

31

4255002

Clamp

(SUB FOR TH4255002)

1шт.

31A

4162836

Bolt

(SUB FOR AT154914)

2шт.

31B

H80440

Lock Nut

11.125 mm (7/16")

2шт.

31C

T130341

Gasket

1шт.

58

4382233

Bolt

(SUB FOR TH4382233)

4шт.

59

4258197

Spacer

(SUB FOR TH4258197)

4шт.

61

4382734

Plate

(SUB FOR TH4382734)

1шт.

62

19M8017

Cap Screw

M12 X 20 (SUB FOR AT200005 OR J011220 USE ALONG WITH 12M7067)

2шт.

12M7067

Lock Washer

12 mm

2шт.

63

9747954

Clamp

(SUB FOR TH9747954)

2шт.

64

19M7363

Cap Screw

M12 X 60

2шт.

65

14M7275

Nut

M12

4шт.

66

4406617

Spacer

(SUB FOR TH4406617)

2шт.

67

19H2549

Cap Screw

3/8" X 1-7/8"

2шт.

68

12H304

Lock Washer

3/8" (SUB FOR THJ219083 OR 12H304)

2шт.
