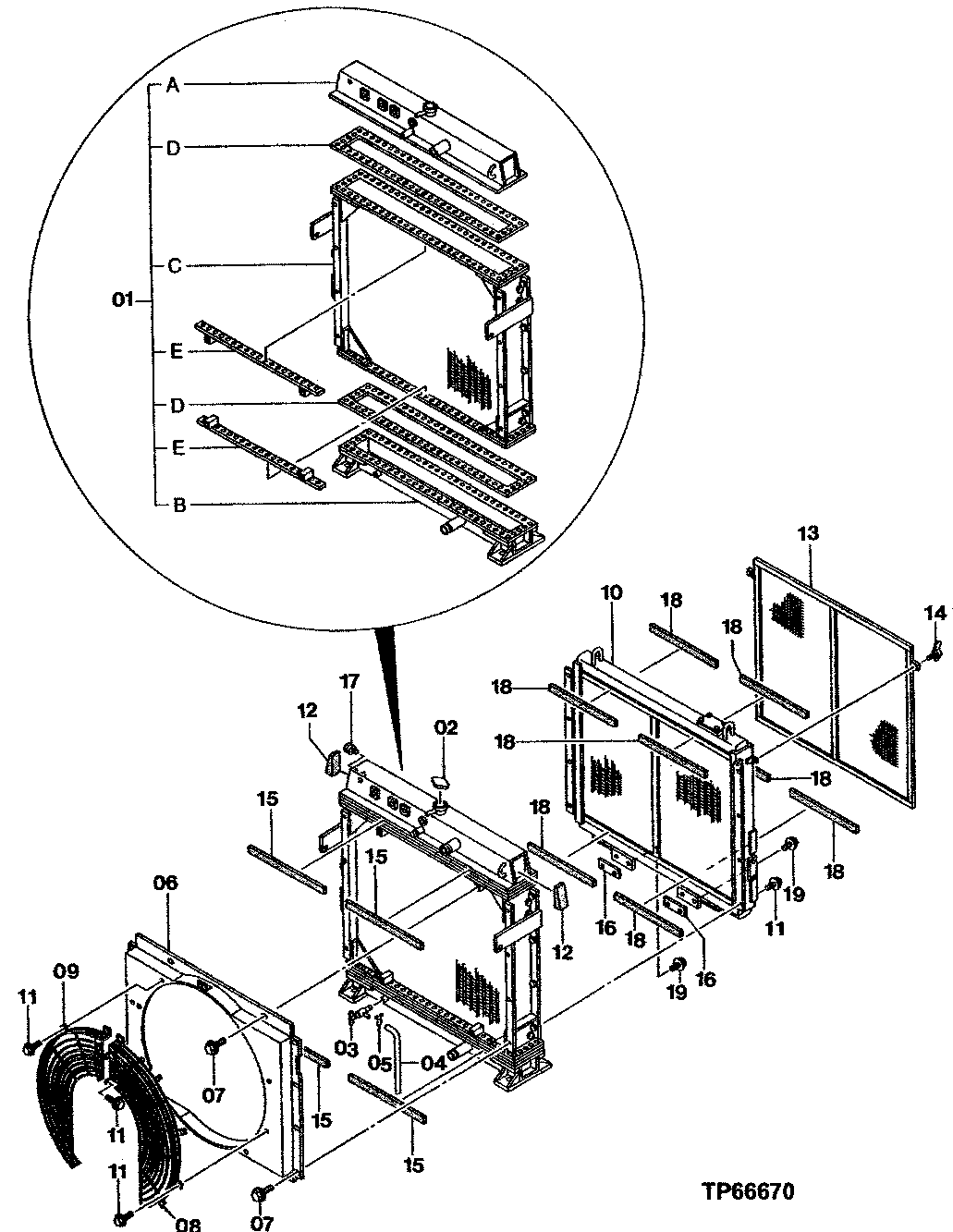

Запчасти John Deere 50 20 - Radiator 0510 Engine Cooling Systems

1

4397903

Radiator

(SUB FOR TH4397903)

1шт.

1A

4397914

Radiator

(SUB FOR TH4397914)

1шт.

1B

4397915

Base

(SUB FOR TH4397915)

1шт.

1C

Frame

(SUB FOR TH4397916)( 439 7916 NO LONGER AVAILABLE)

1шт.

1D

4377119

Gasket

(SUB FOR TH4377119)

2шт.

1E

4410968

Isolator

(SUB FOR TH4410968)

1шт.

1F

4336283

Bolt

(NOT ILLUSTRATED)

ARшт.

2

4231888

Filler Cap

(SUB FOR AT122559)

1шт.

3

4248510

Drain Plug

(SUB FOR TH4248510)

1шт.

4

Hydraulic Hose

(SUB FOR TH4397904)( 4397904 NO LONGER AVAILABLE FOR SERVICE) (FURNISH PMK010-1 014 BULK MATERIAL CUT TO 500 MM LENGTH)

1шт.

5

4143888

Hose Clamp

(SUB FOR TH4143888)

1шт.

6

4397905

Shroud

(SUB FOR TH4397905)

1шт.

7

19M7662

Cap Screw

M10 X 30

12шт.

12M7066

Lock Washer

10 mm

12шт.

24M7028

Washer

10.500 X 20 X 2 mm

12шт.

8

4397906

Guard

(SUB FOR TH4397906)

1шт.

9

4397907

Guard

(SUB FOR TH4397907)

1шт.

10

4397908

Oil Cooler

(SUB FOR TH4397908)

1шт.

11

19M7402

Cap Screw

M10 X 25

20шт.

12M7066

Lock Washer

10 mm

20шт.

24M7028

Washer

10.500 X 20 X 2 mm

20шт.

12

4252612

Isolator

(SUB FOR TH4252612)

2шт.

13

4397909

Screen

(SUB FOR TH4397909)

1шт.

14

21M1690

Wing Screw

M6 X 16

2шт.

15

4397910

Isolator

(SUB FOR TH4397910)

4шт.

16

4257370

Shim

(SUB FOR TH4257370)

1шт.

17

4397917

Sight Plug

(SUB FOR TH4397917)

1шт.

18

4397913

Isolator

(SUB FOR TH4397913)

8шт.

19

19M8011

Cap Screw

M12 X 30

4шт.

12H301

Lock Washer

1/2"

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.
