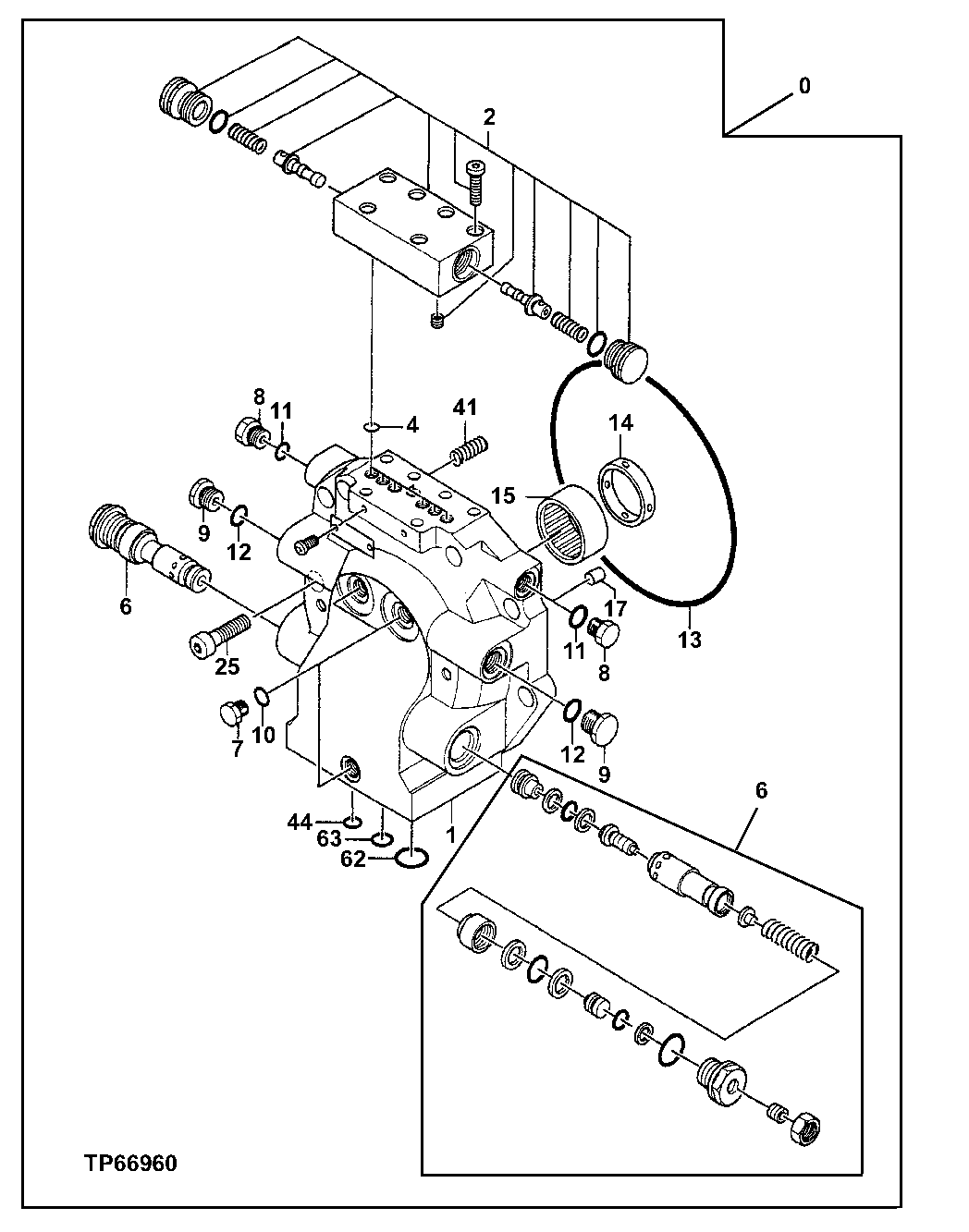

Запчасти John Deere 50 11 - Propel Motor Components 0260 HYDRAULIC SYSTEM

0

4395028

Oil

NLA, (ORDER 4395028EX)

1шт.

4395028EX

Hydraulic Motor Reman

(REMAN FOR 4395028)

1шт.

1

Cover

1шт.

2

0446402

Flow Control Hyd. Valve

(SUB FOR AT201564)

1шт.

4

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

7шт.

6

0702201

Pressure Relief Valve

(SUB FOR TH0702201)

2шт.

7

0419902

Fitting Plug

(SUB FOR AT201563)

3шт.

8

0218608

Drain Plug

(SUB FOR TH110243)

2шт.

9

0251321

Plug

(SUB FOR AT201969)

2шт.

10

M800650

Packing

3шт.

11

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

2шт.

12

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

2шт.

13

0419806

O-Ring

(SUB FOR AT201977)

1шт.

14

0352211

Bushing

(SUB FOR AT132248)

1шт.

15

CE15060

Needle Bearing

1шт.

17

0682803

Pin

(SUB FOR TH0682803)

1шт.

25

0288618

Bolt

(SUB FOR AT127285)

8шт.

41

0682804

Spring

(SUB FOR TH0682804)

12шт.

44

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

4шт.

62

AT264348

O-Ring

(SUB FOR TH102788)

2шт.

63

CH12329

Packing

2шт.
