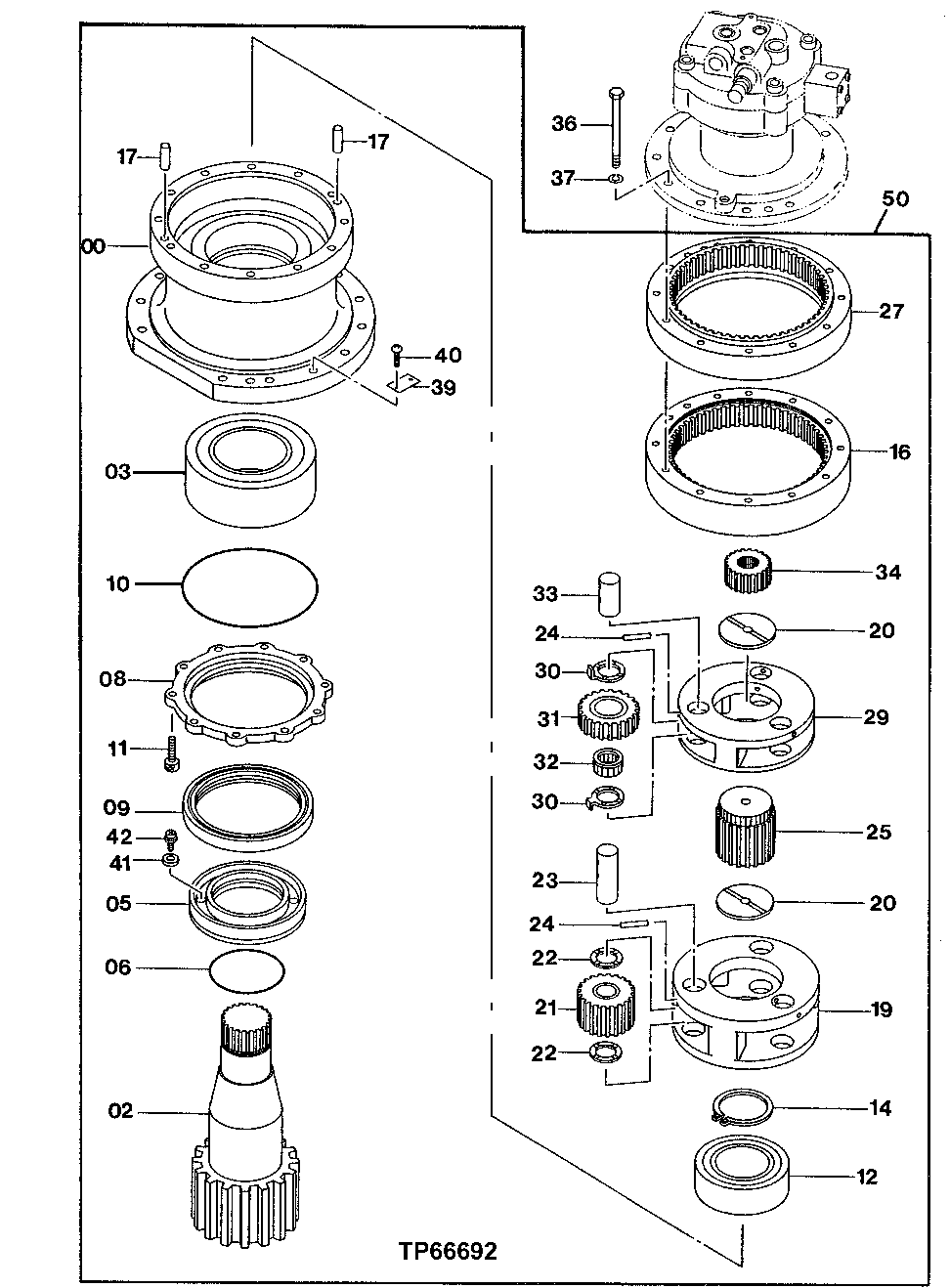

Запчасти John Deere 50 216 - Swing Device 4360 Hydraulics

0

1020440

Housing

SUB FOR TH1020440

1шт.

2

2036267

Pinion Shaft

SUB FOR TH2036267

1шт.

3

FYB00002804

Ball Bearing

SUB FOR 4375201 OR TH4375201

1шт.

5

3069880

Sleeve

SUB FOR TH3069880

1шт.

6

4217350

O-Ring

SUB FOR AT219661

1шт.

8

2036875

Cover

SUB FOR TH2036875

1шт.

9

4424982

Seal

SUB FOR TH4338381 Warm and Mild Climate Applications

1шт.

4604377

Seal

4412061 NLA Cold Climate Applications

1шт.

10

4217351

O-Ring

SUB FOR TH4217351

1шт.

11

19M8395

Screw

M12 X 40

10шт.

12

FYB00002803

Ball Bearing

SUB FOR 4375200 OR TH4375200

1шт.

14

991354

Snap Ring

SUB FOR TH111641

1шт.

16

2036466

Ring Gear

SUB FOR TH2036466

1шт.

17

J401640

Dowel Pin

SUB FOR TH110085

2шт.

19

1020438

Planet Pinion Carrier

SUB FOR TH1020438

1шт.

20

4194454

Washer

SUB FOR TH111267

2шт.

21

9729474

Gear

SUB FOR TH9729474

3шт.

22

4266934

Plate

SUB FOR AT154772

6шт.

23

4250580

Pin

SUB FOR TH4250580

3шт.

24

34M5564

Spring Pin

6 X 70 mm

6шт.

25

3040887

Sun Gear

SUB FOR TH3040887

1шт.

27

2036866

Ring Gear

SUB FOR TH2036866

1шт.

29

2036868

Planet Pinion Carrier

SUB FOR TH2036868

1шт.

30

4338181

Thrust Washer

SUB FOR TH4338181

6шт.

31

3069820

Gear

SUB FOR TH3069820

3шт.

32

4333265

Needle Bearing

SUB FOR TH4333265

3шт.

33

4216851

Pin

SUB FOR TH4216851

3шт.

34

3069819

Sun Gear

SUB FOR TH3069819

1шт.

36

19M7645

Screw

M20 X 200

12шт.

37

12M7070

Lock Washer

20 mm

12шт.

39

Identification Plate

1шт.

40

37H99

Screw

0.100" X 1/4"

2шт.

41

4204644

Magnet

SUB FOR TH108284

4шт.

42

21M7265

Screw

M5 X 12

4шт.

50

9174425

Drive

SUB FOR TH9134738

2шт.
