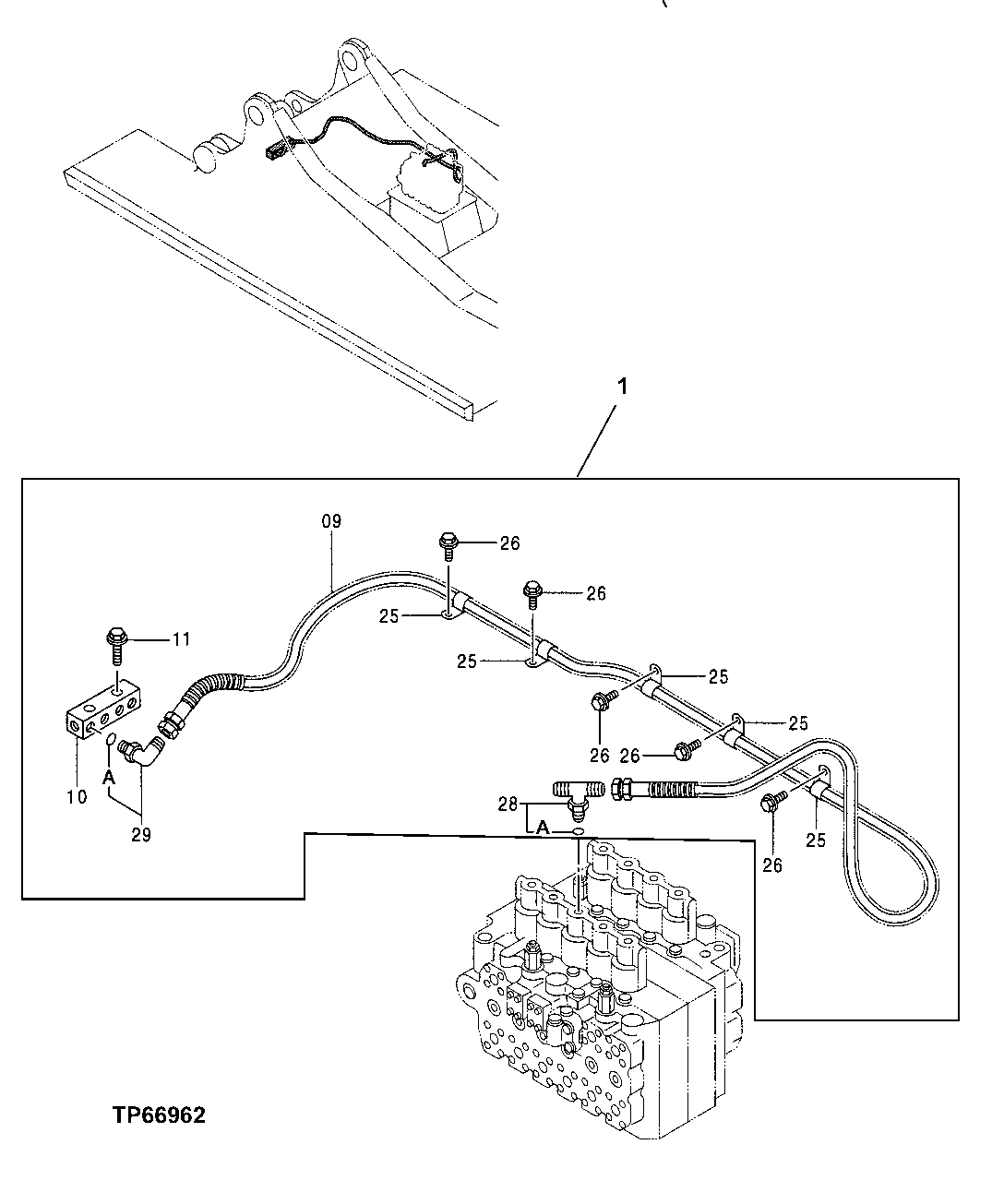

Запчасти John Deere 50 211 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 HYDRAULIC SYSTEM

1

Kit

( AT188670 NO LONGER AVAILABLE) WHOLEGO ODS (BOOM CYLINDER LOAD LOWERING VALVE) ( CONTAINS ALL ITEMS ON THIS PAGE - ADDITIO NAL COMPONENTS LISTED ON PREVIOUS PAGES)

1шт.

9

4402317

Hydraulic Hose

(SUB FOR TH4402317)

1шт.

10

3077734

Junction Block

(SUB FOR TH3077734)

1шт.

11

19M7753

Cap Screw

M12 X 70

2шт.

12H301

Lock Washer

1/2"

2шт.

25

T28949

Clamp

(SUB FOR TH108458 OR 4190274)

5шт.

26

19M7938

Cap Screw

M10 X 20

5шт.

12M7066

Lock Washer

10 mm

5шт.

28

4208911

Tee Fitting

(SUB FOR AT126456)

1шт.

28A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

29

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

29A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
