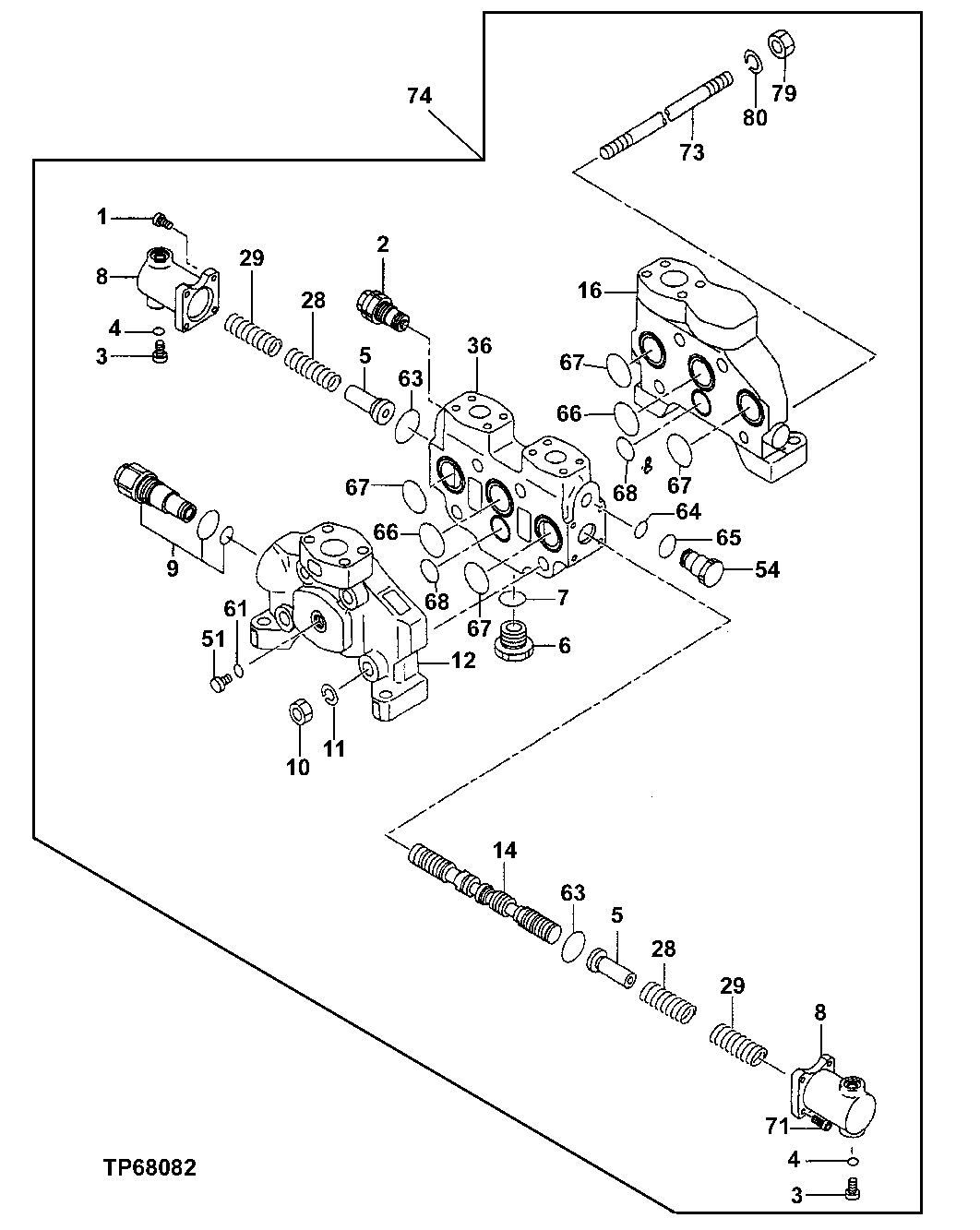

Запчасти John Deere 50 206 - Flow Control Valve 3360 HYDRAULIC SYSTEM

1

0428901

End Plate

SUB FOR TH0428901

1шт.

2

0728907

Pressure Relief Valve

SUB FOR TH0728907

1шт.

3

0629404

Fitting Plug

SUB FOR AT213630

2шт.

4

O-Ring

2шт.

5

0470815

Plate

SUB FOR TH0470815

2шт.

6

0272417

Fitting Plug

SUB FOR TH0272417

1шт.

7

AT264360

O-Ring

SUB FOR TH0199005, 0199005, 4506430

1шт.

8

0728903

Cover

SUB FOR TH0728903

2шт.

9

0728906

Pressure Relief Valve

SUB FOR TH0728906

1шт.

10

Nut

8шт.

11

Washer

8шт.

12

Identification Plate

1шт.

14

0441006

Valve Spool

SUB FOR TH0441006

1шт.

16

0728902

End Plate

SUB FOR TH0728902

1шт.

28

0728904

Spring

SUB FOR TH0728904

2шт.

29

0728905

Spring

SUB FOR TH0728905

2шт.

36

Housing

1шт.

51

0629404

Fitting Plug

SUB FOR AT213630

1шт.

54

0303604

Fitting Plug

SUB FOR TH0303604

1шт.

61

CH11561

Packing

SUB FOR TH0179107

1шт.

63

4292942

O-Ring

SUB FOR AT201627

2шт.

64

O-Ring

1шт.

65

0976602

O-Ring

SUB FOR TH0448701, 0448 701, 0682324 OR 4S00734

1шт.

66

970860

O-Ring

SUB FOR TH0231606, 0231606

2шт.

67

O-Ring

4шт.

68

0448704

O-Ring

SUB FOR TH0448704

2шт.

71

0408007

Bolt

SUB FOR TH0173608

8шт.

73

0633904

Cap Screw

SUB FOR TH0633904

4шт.

74

4394030

Hyd Actuated Control Valve

SUB FOR TH4394030

1шт.
