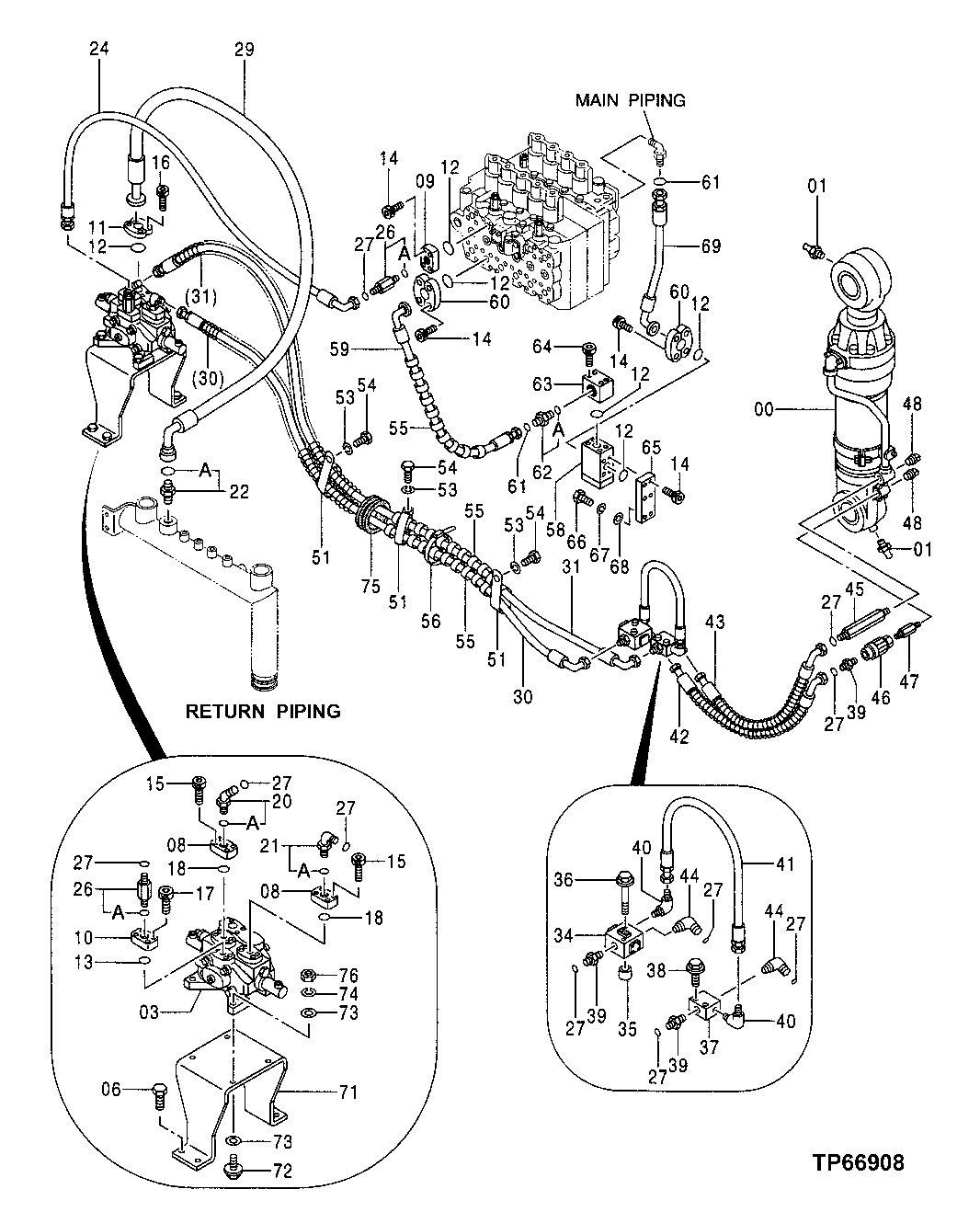

Запчасти John Deere 50 204 - HIGH PRESSURE PIPING REMOVAL DEVICE 3360 HYDRAULIC SYSTEM

0

4392996

Cylinder

SUB FOR TH4392996

1шт.

1

TH100074

Lubrication Fitting

2шт.

3

4394030

Hyd Actuated Control Valve

SUB FOR TH4394030

1шт.

6

19M7409

Cap Screw

M16 X 50

4шт.

8

4395530

Flange Fitting

SUB FOR TH4395530

2шт.

9

4395369

Flange Fitting

SUB FOR TH4395369

1шт.

10

4395346

Flange Fitting

SUB FOR TH4395346

1шт.

11

R29867

Flange Fitting

2шт.

12

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

6шт.

13

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

14

19M8734

Screw

M14 X 45

16шт.

15

19M8447

Screw

M10 X 35

8шт.

16

19M8169

Screw

M12 X 30 SUB FOR 19M8127

4шт.

17

19M8341

Screw

M12 X 45

4шт.

18

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

2шт.

20

4260154

Elbow Fitting

SUB FOR TH4260154

1шт.

20A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

21

4205382

Elbow Fitting

SUB FOR TH4205382

1шт.

21A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

22

4042035

Adapter Fitting

SUB FOR TH4042035

1шт.

22A

970860

O-Ring

37.700 X 3.500 mm (1-31/64" X 0.138") SUB FOR TH104634

1шт.

24

4397430

Hydraulic Hose

SUB FOR TH4397430

1шт.

26

P64907

Adapter Fitting

2шт.

26A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

27

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

10шт.

29

4395792

Hydraulic Hose

SUB FOR TH4395792

1шт.

30

4395356

Hydraulic Hose

SUB FOR TH4395356

1шт.

31

4395352

Hydraulic Hose

SUB FOR TH4395352

1шт.

34

4240863

Flow Control Hyd. Valve

SUB FOR AT132548

1шт.

35

4131346

Spacer

10.900 X 17.300 X 16 mm (0.429" X 0.681" X 0.630") SUB FOR AT132491

2шт.

36

19M7875

Cap Screw

M10 X 70 SUB FOR AT133602

2шт.

12M7066

Lock Washer

10 mm

2шт.

37

4240862

Manifold

SUB FOR AT132547

1шт.

38

19M8655

Cap Screw

M10 X 55

2шт.

12M7066

Lock Washer

10 mm

2шт.

39

4217265

Adapter Fitting

SUB FOR TH4217265

3шт.

40

4154656

Elbow Fitting

SUB FOR TH101588

2шт.

41

AT126482

Hydraulic Hose

1шт.

42

4395934

Hydraulic Hose

SUB FOR TH4395934

1шт.

43

4395931

Hydraulic Hose

SUB FOR TH4395931

1шт.

44

4274178

Elbow Fitting

SUB FOR AT170146

2шт.

45

3081079

Adapter Fitting

SUB FOR TH3081079

1шт.

46

4221984

Valve

SUB FOR AT132492

1шт.

47

4261624

Adapter Fitting

SUB FOR TH4261624

1шт.

48

94-2024

Fitting Plug

SUB FOR TH101292

2шт.
