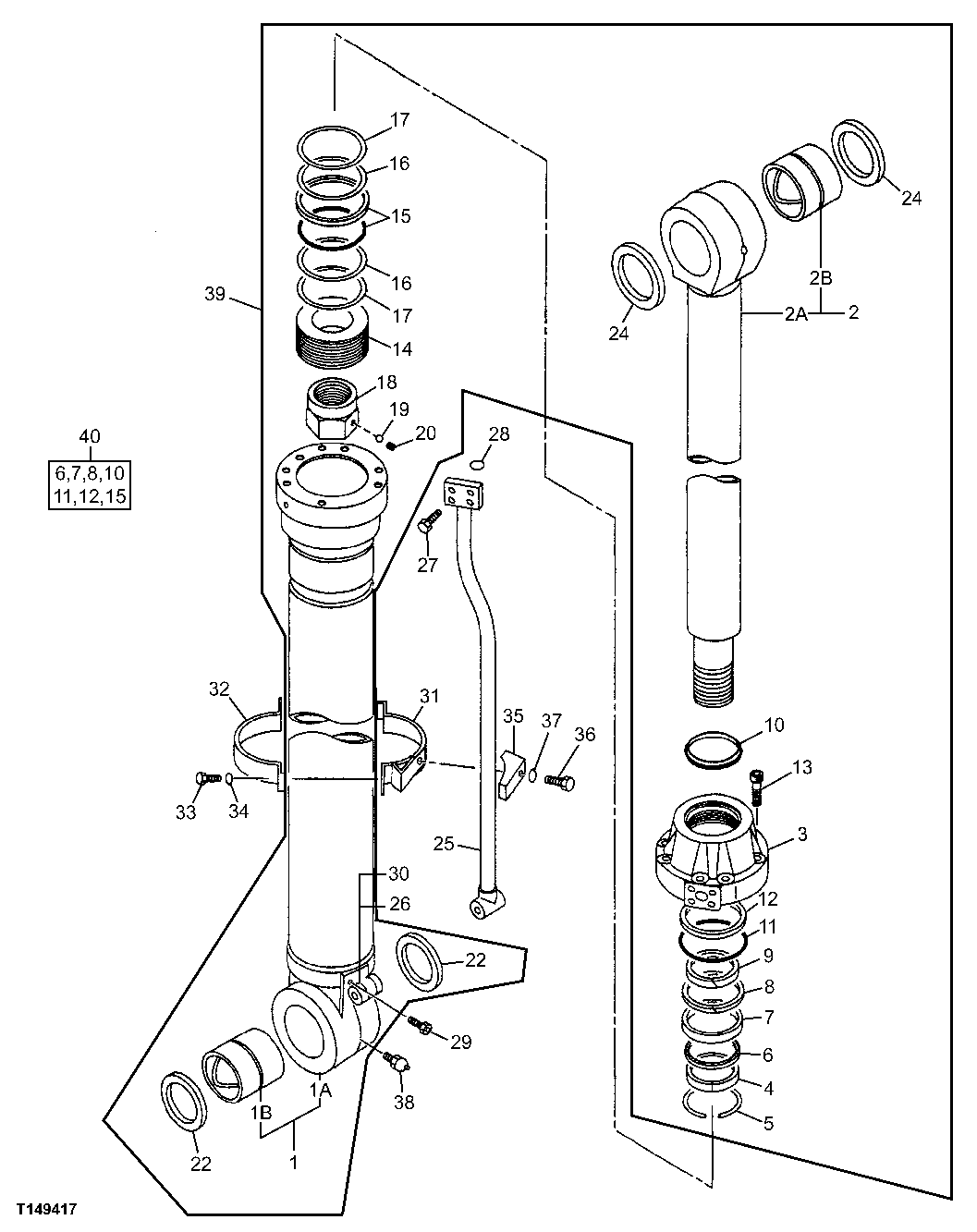

Запчасти John Deere 50 201 - Hydraulic Cylinder 3360 HYDRAULIC SYSTEM

1

4402170

Hydraulic Cylinder Barrel

SUB FOR TH4402170

1шт.

1A

Tube

1шт.

1B

4609091

Bushing

SUB FOR AT132309 OR 0352905

1шт.

2

4402022

Rod

SUB FOR TH4402022

1шт.

2A

Rod

1шт.

2B

4660855

Bushing

SUB FOR AT202246 OR 0420102

1шт.

3

0704403

Hydr. Cylinder Rod Guide

SUB FOR AT217067

1шт.

4

AT264291

Bushing

SUB FOR AT217060 OR 0450506

1шт.

5

0133103

Snap Ring

SUB FOR AT127275

1шт.

6

AT264292

Ring

SUB FOR AT217061 OR 0450507

1шт.

7

T207118

Seal

SUB FOR TH104996, 4069711 OR AT264368

1шт.

8

AT264369

Back-Up Ring

SUB FOR TH104997

1шт.

9

0450508

Ring

SUB FOR AT217062

1шт.

10

AT264283

Ring

SUB FOR 0239504 OR 4438199

1шт.

11

AT264240

O-Ring

SUB FOR AT132154 OR TH4061790

1шт.

12

AT264252

Back-Up Ring

SUB FOR AT132399

1шт.

13

0191412

Bolt

SUB FOR AT217053

8шт.

14

0704405

Piston

SUB FOR AT217069

1шт.

15

AT264253

Ring

SUB FOR AT132400

1шт.

16

AT264289

Ring

SUB FOR AT201577

2шт.

17

AT264248

Ring

SUB FOR AT132175

2шт.

18

0443902

Nut

SUB FOR AT217059

1шт.

19

0353011

Ball

SUB FOR AT132320

1шт.

20

0353012

Set Screw

SUB FOR AT132321

1шт.

22

0420403

Ring

SUB FOR AT201589 OR 4S00854

2шт.

24

AT201578

Ring

2шт.

25

0666701

Oil Line

SUB FOR TH0666701

1шт.

26

0493410

Oil Line

SUB FOR TH0493410

1шт.

27

19M8395

Screw

M12 X 40

4шт.

28

AT264348

O-Ring

SUB FOR TH102788

1шт.

29

T116311

Bolt

4шт.

30

0976602

O-Ring

SUB FOR TH103574, 4S00734 OR AT264354

1шт.

31

Band

0352719 NLA SUB FOR AT132298

1шт.

0875612

Half Clamp

1шт.

32

0352721

Band

SUB FOR AT132300

1шт.

33

19M7550

Cap Screw

M10 X 35

2шт.

34

12M7066

Lock Washer

10 mm

2шт.

35

H238070

Clamp

SUB FOR T108036

1шт.

36

19M7361

Cap Screw

M12 X 50

1шт.

37

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

38

TH100074

Lubrication Fitting

2шт.

39

4402168

Hydraulic Cylinder

SUB FOR TH4402168 Counterweight Lifting

1шт.

40

4405053

Seal Kit

1шт.
