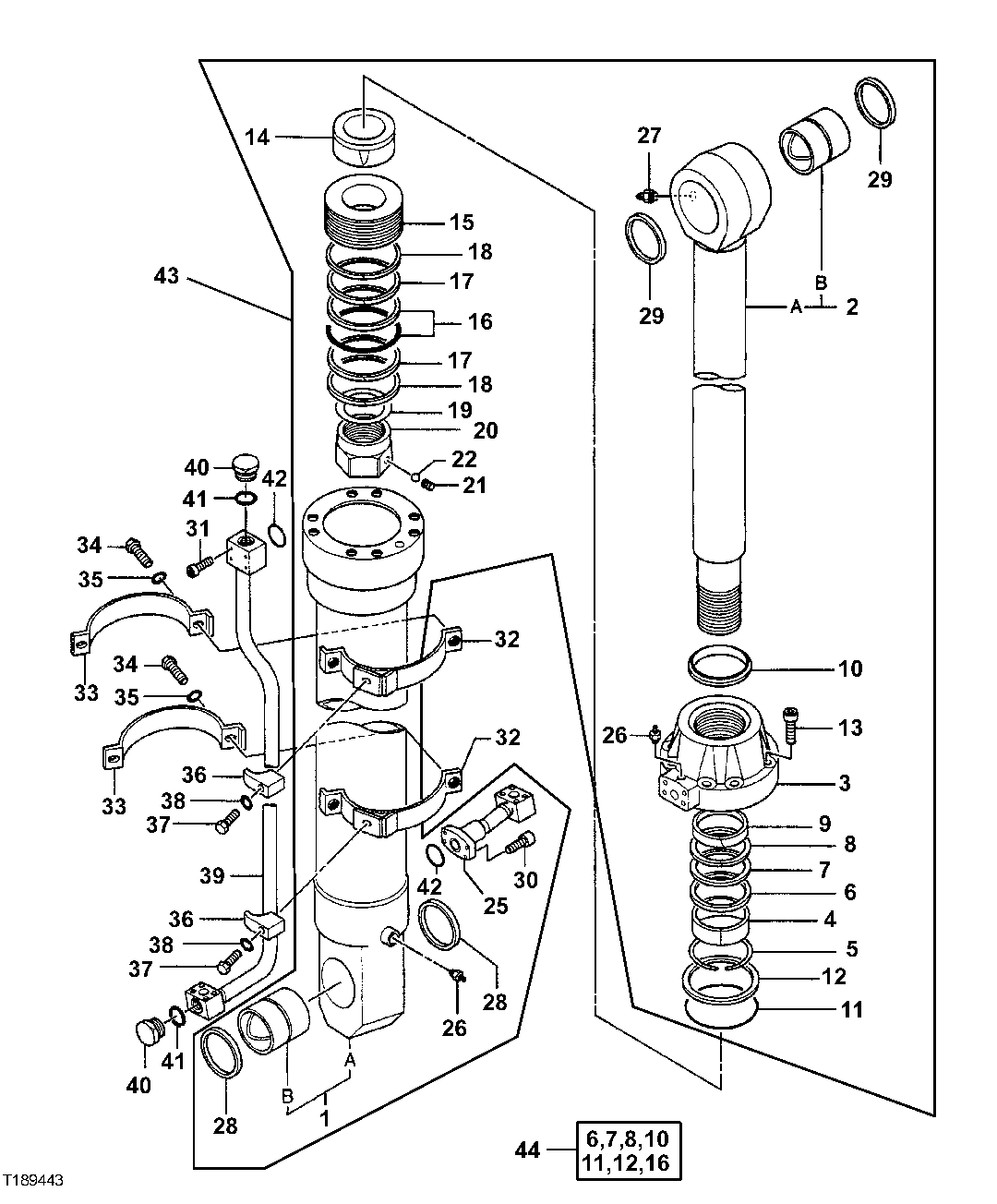

Запчасти John Deere 50 197 - Hydraulic Bucket Cylinder 3360 HYDRAULIC SYSTEM

1

4391315

Hydraulic Cylinder Barrel

SUB FOR TH4391315

1шт.

Hyd Cylinder Barrel Reman

PG201420 NLA, ORDER 4391315, REMAN

1шт.

1A

Tube

1шт.

1B

4609099

Bushing

SUB FOR TH0379902 OR 0379902

1шт.

2

4391316

Rod

SUB FOR TH4391316

1шт.

PG201422

Hyd Cylinder Rod Reman

1шт.

2A

Rod

1шт.

2B

4609100

Bushing

SUB FOR TH0380003 OR 0380003

1шт.

3

0702801

Hydr. Cylinder Rod Guide

SUB FOR TH0702801

1шт.

4

AT264250

Bushing

SUB FOR AT132313 OR 0353004

1шт.

5

0133709

Snap Ring

SUB FOR TH104999

1шт.

6

AT264251

Ring

SUB FOR 0941506, AT132 314, 0353005 OR 4S00045

1шт.

7

AT264242

Seal

SUB FOR AT132164 OR 4S00037

1шт.

8

AT264246

Back-Up Ring

SUB FOR AT132173 OR 4S00038

1шт.

9

0353006

Ring

SUB FOR AT204901 OR AT132315

1шт.

10

AT264282

Ring

SUB FOR AT132174, AT191199 OR 4437982

1шт.

11

AT264241

O-Ring

SUB FOR AT132155 OR A811180

1шт.

12

AT264243

Back-Up Ring

SUB FOR AT132168 OR 4S00079

1шт.

13

4104472

Bolt

SUB FOR AT132322

8шт.

14

0380005

Bushing

SUB FOR TH0380005

1шт.

15

0646404

Piston

SUB FOR TH0646404

1шт.

16

T201905

Seal

SUB FOR 4S00081 OR AT132169

1шт.

17

AT264290

Ring

SUB FOR AT201586

2шт.

18

AT264245

Wear Ring

SUB FOR AT132170

2шт.

19

0353010

Shim

SUB FOR AT132319

1шт.

20

0353009

Nut

SUB FOR AT132318

1шт.

21

0353012

Set Screw

SUB FOR AT132321

1шт.

22

0353011

Ball

SUB FOR AT132320

1шт.

25

0998506

Oil Line

SUB FOR 0380008

1шт.

26

0643016

Bleed Valve

SUB FOR TH0643016

2шт.

27

TH100074

Lubrication Fitting

1шт.

28

4251767

Seal

SUB FOR TH4251767

2шт.

29

4251753

Seal

SUB FOR TH4251753

2шт.

30

19M8734

Screw

M14 X 45 SUB FOR TH0158883

4шт.

31

0171719

Cap Screw

SUB FOR TH0171719

4шт.

32

0353017

Band

SUB FOR AT132326

2шт.

33

0353018J

Half Clamp

SUB FOR 0353018 OR AT132327

2шт.

34

19M7550

Cap Screw

M10 X 35

4шт.

35

12M7066

Lock Washer

10 mm

4шт.

36

0972307

Clamp

SUB FOR AT132325, 0353016 OR 0353016J

2шт.

37

19M4789

Cap Screw

M14 X 80

2шт.

38

12H317

Lock Washer

9/16"

2шт.

39

0764903

Line

ALSO ORDER (4) 19M8734; SUB FOR 0494403

1шт.

40

0379823

Plug

SUB FOR TH0379823

2шт.

41

985098

O-Ring

SUB FOR TH102528

2шт.

42

985098

O-Ring

SUB FOR TH102528

2шт.

43

Hydraulic Cylinder Reman

4391314EX NLA, SUB FOR TH4391314, REMAN S tandard Arm, Heavy Duty Arm, Semi-Long Arm

1шт.

44

4S00956

Seal Kit

SUB FOR 4437964

1шт.
