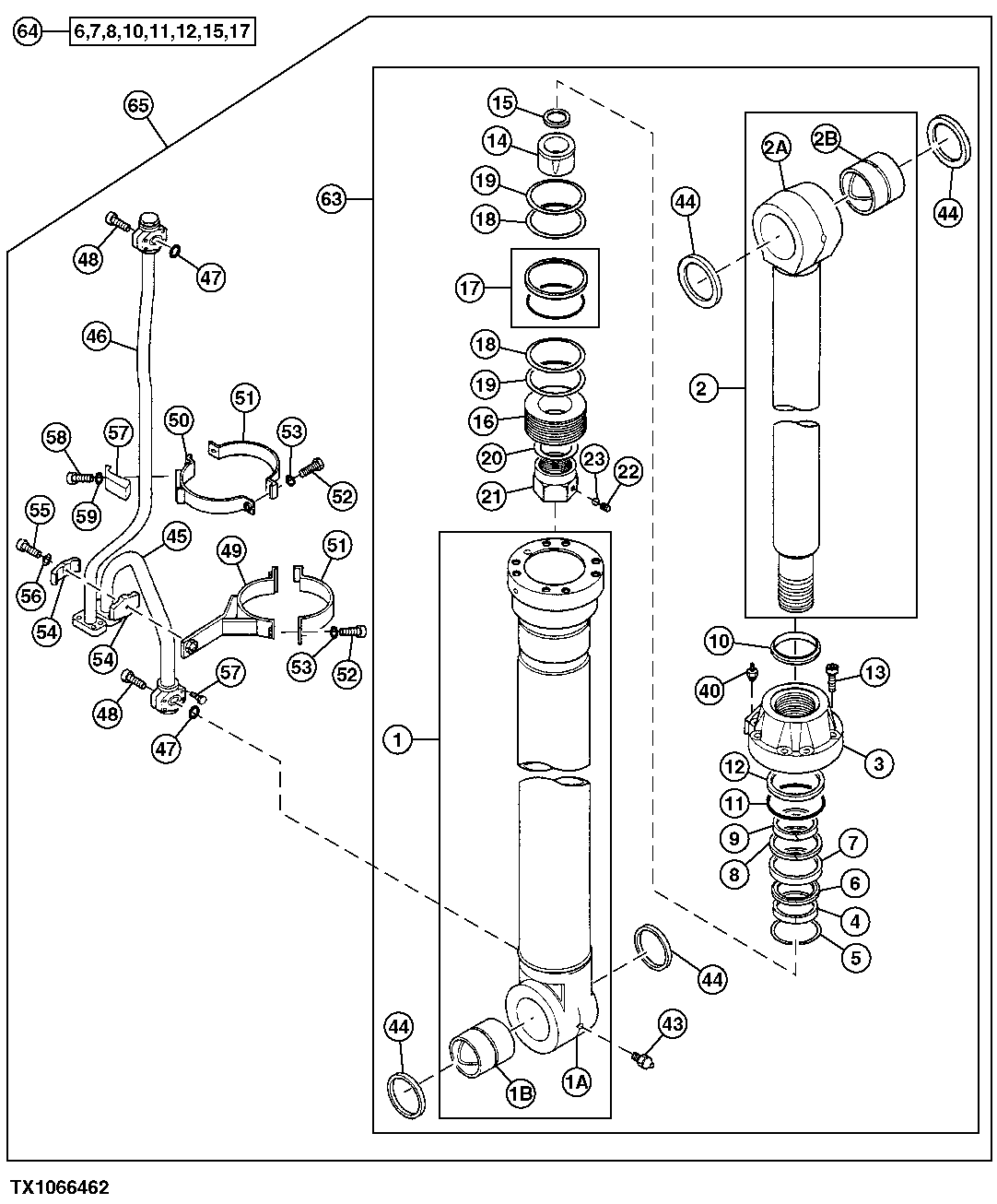

Запчасти John Deere 50 194 - HYDRAULIC BOOM CYLINDER, RIGHT 3360 HYDRAULIC SYSTEM

1

4391318

Hydraulic Cylinder Barrel

1шт.

PG201417

Hyd Cylinder Barrel Reman

REMAN

1шт.

1A

Tube

NSEP

1шт.

1B

4609098

Bushing

0702501

1шт.

2

4391319

Rod

1шт.

PG201419

Hyd Cylinder Rod Reman

REMAN

1шт.

2A

Rod

NSEP

1шт.

2B

4660858

Bushing

SUB FOR 0444801

1шт.

3

0645004

Hydr. Cylinder Rod Guide

1шт.

4

0379806

Bushing

1шт.

5

0191415

Snap Ring

1шт.

6

0645011

Ring

SUB FOR 0417405 OR 4S01020

1шт.

7

0977904

Packing

SUB FOR 4094949, THIS APPLICATION

1шт.

8

0242505

Back-Up Ring

1шт.

9

0417406

Ring

SUB FOR 4S01015

1шт.

10

0977905

Ring

SUB FOR 0242506 OR 4438196

1шт.

11

AT122160

O-Ring

SUB FOR A811190

1шт.

12

0257007

Ring

SUB FOR 4S00084

1шт.

13

4104472

Bolt

8шт.

14

0702502

Bushing

1шт.

15

0645006

Seal

SUB FOR 4S01018

1шт.

16

0702503

Piston

1шт.

17

0257010

Ring

SUB FOR 4S00085

1шт.

18

0645008

Ring

SUB FOR 4S00856

2шт.

19

4199817

Ring

SUB FOR 4S00098

2шт.

20

0379813

Shim

1шт.

21

0379814

Nut

1шт.

22

0379815

Set Screw

1шт.

23

0109124

Ball

1шт.

40

0643016

Bleed Valve

1шт.

43

0380010

Lubrication Fitting

1шт.

44

4251767

Seal

4шт.

45

Line

0492603 NLA; UNITS BUILT BEFOR E JANUARY 2003 SUB 0895003; ALS O ORDER 0895004 AND (8) 19M8734

1шт.

0895003

Line

UNITS BUILT JANUARY 2003 AND AFTER

1шт.

46

Line

SUB 0895004; ALSO ORDER 089500 3 AND (8) 19M8734; 0444803 NLA; UNITS BUILT BEFORE JANUARY 200 3

1шт.

0895004

Line

UNITS BUILT JANUARY 2003 AND AFTER

1шт.

47

AT264254

O-Ring

SUB FOR 955612

2шт.

48

0171719

Cap Screw

USE WITH 0492603 AND 0444803; UNITS BUILT BEFORE JANUARY 2003

8шт.

19M8734

Screw

M14 X 45 USE WITH 0895003 AND 0895004; UNITS BUILT JANUARY 2003 AND AFTER SUB FOR 0158883

8шт.

49

0379703

Clamp

1шт.

50

0379819

Clamp

1шт.

51

0379820

Clamp

2шт.

52

19M7550

Cap Screw

M10 X 35 SUB FOR 0408815

4шт.

53

12M7066

Lock Washer

10 mm SUB FOR 0325913

4шт.

54

0379821J

Half Clamp

SUB FOR 0379821

2шт.

55

0417614

Bolt

1шт.

56

0168014

Spring Washer

1шт.

57

0972307

Clamp

SUB FOR 0353016 OR 0353016J

1шт.

58

19M4789

Cap Screw

M14 X 80 SUB FOR 0254312

1шт.

59

12H317

Lock Washer

9/16" SUB FOR A590914

1шт.

60

0902202

Packing

NOT ILLUSTRATED

1шт.

61

A811150

O-Ring

NOT ILLUSTRATED

1шт.

63

4391320JEX

Hydraulic Cylinder Reman

REMANUFACTURED SUB FOR 4391320

1шт.

64

Seal Kit

SUB 4660036; 4438684 NLA

1шт.

4660036

Seal Kit

ALSO ORDER 0902204 AND 0902202

1шт.

65

4331075

Hydraulic Cylinder

1шт.

66

4614814

Seal Kit

NLA; ORDER 0902204 AND 0902202

1шт.

0902204

O-Ring

SUB FOR 4614814; ALSO ORDER 0902202

1шт.

0902202

Packing

SUB FOR 4614814; ALSO ORDER 0902204

1шт.
