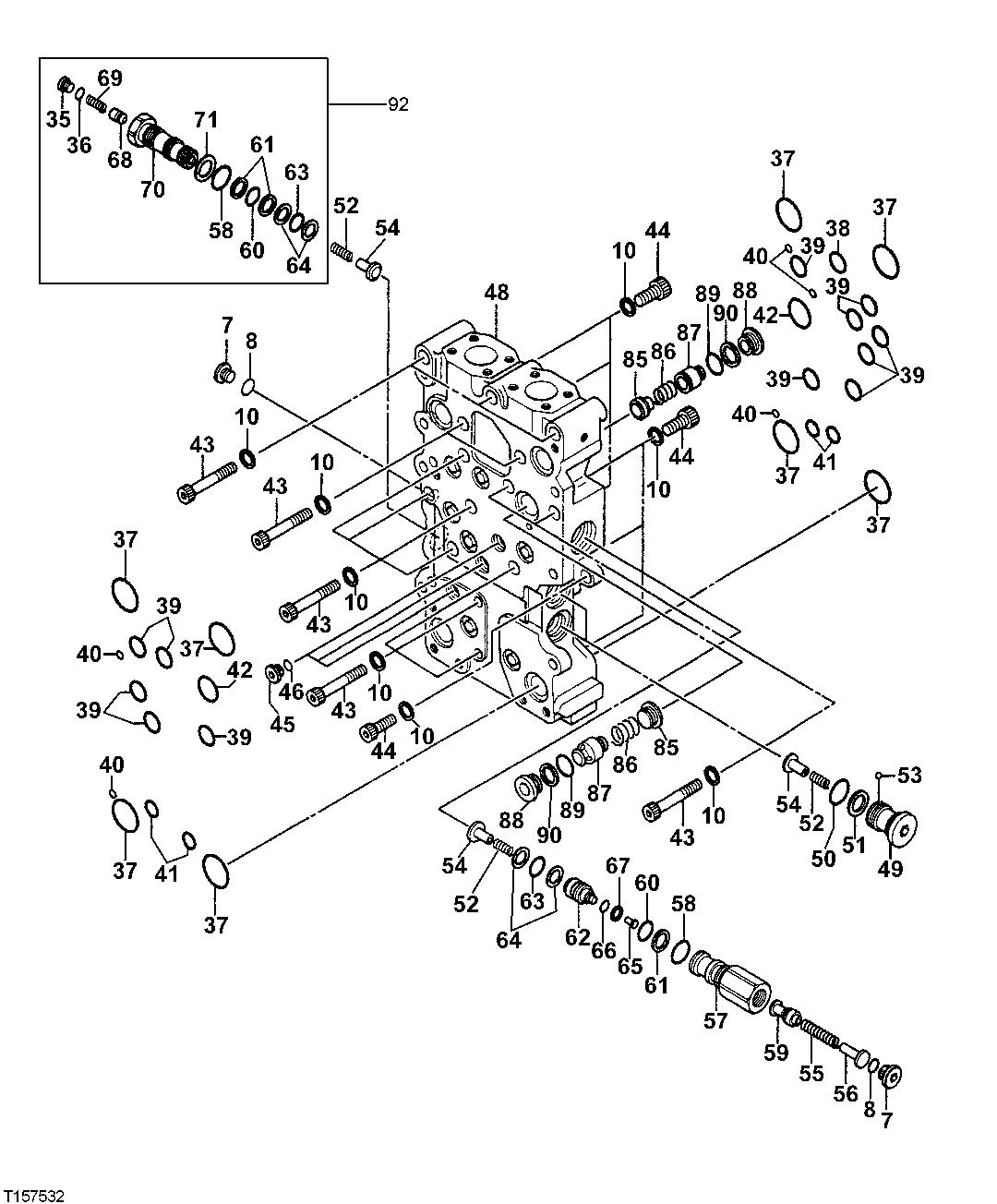

Запчасти John Deere 50 191 - Control Valve 3360 HYDRAULIC SYSTEM

7

0453932

Fitting Plug

(SUB FOR AT203777)

2шт.

8

0212416

O-Ring

(SUB FOR TH100198)

2шт.

10

0189908

Washer

(SUB FOR AT217052)

21шт.

35

0622819

Cap

(SUB FOR AT202003)

1шт.

36

CH11570

O-Ring

1шт.

37

4292386

O-Ring

(SUB FOR AT202090 ) (SUB FOR 081 8006, OR 0818203THIS APPLICATION)

8шт.

38

0223109

O-Ring

(SUB FOR AT217056)

1шт.

39

4366528

O-Ring

(SUB FOR 4153108 ) (SUB FOR 0818007, THIS APPLICATION)

12шт.

40

4366519

O-Ring

(SUB FOR AT202085 ) (SUB FOR 4153089, THIS APPLICATION ) (SUB FOR 0818012)

4шт.

41

T59014

O-Ring

(SUB FOR AT202005)(FURNISH T59014)

4шт.

42

4292942

O-Ring

(SUB FOR AT202089 ) (SUB FOR 4153534, THIS APPLIC OR 0818205ATION, 0818010)

2шт.

43

19M8342

Screw

M16 X 90

14шт.

44

0212405

Bolt

(SUB FOR TH100184)

7шт.

45

0622822

Cap

(SUB FOR AT202006)

3шт.

46

4366521

O-Ring

(SUB FOR TH109041 ) (SUB FOR 415 3099, OR 0818008THIS APPLICATION)

3шт.

48

0703501

Hyd Actuated Control Valve

(SUB FOR TH0703501)

1шт.

49

0622825

Cap

(SUB FOR AT202009)

2шт.

50

4088425

O-Ring

(SUB FOR AT202080)

2шт.

51

0223104

Back-Up Ring

(SUB FOR AT217055)

2шт.

52

0622827

Spring

(SUB FOR AT202011)

4шт.

53

0189803

Ball

(SUB FOR AT203704)

2шт.

54

0622829

Check Valve

(SUB FOR AT202013)

4шт.

55

0622830

Spring

(SUB FOR AT202014)

1шт.

56

0622831

Guide

(SUB FOR AT202015)

1шт.

57

0622832

Sleeve

(SUB FOR AT202016)

1шт.

58

985098

O-Ring

(SUB FOR TH102528)

2шт.

59

0622833

Spool

(SUB FOR AT202017)

1шт.

60

AT264347

O-Ring

(SUB FOR TH100136, 4506428)

2шт.

61

4044839

Back-Up Ring

(SUB FOR TH103457)

3шт.

62

0622834

Sleeve

(SUB FOR AT202018)

1шт.

63

966689

O-Ring

(SUB FOR TH108142)

2шт.

64

4113187

Back-Up Ring

(SUB FOR AT131692)

4шт.

65

0622835

Piston

(SUB FOR AT202019)

1шт.

66

T111819

O-Ring

1шт.

67

4040814

Back-Up Ring

(SUB FOR TH105938)

1шт.

68

4442348

Poppet

(SUB FOR 0622836)

1шт.

69

0622837

Spring

(SUB FOR AT202021)

1шт.

70

0622838

Cap

(SUB FOR AT202022)

1шт.

71

4013283

Back-Up Ring

(SUB FOR AT200398)

1шт.

85

0622851

Plate

(SUB FOR AT202035)

2шт.

86

0622852

Spring

(SUB FOR AT202036)

2шт.

87

0622853

Check Valve

(SUB FOR AT202037)

2шт.

88

0622854

Seat

(SUB FOR AT202038)

2шт.

89

0818204

O-Ring

(SUB FOR AT202088 ) (SUB FOR 415 3110, OR 0818009THIS APPLICATION)

2шт.

90

4019414

Back-Up Ring

(SUB FOR AT202076)

2шт.

91

4311602

Hyd Actuated Control Valve

(SUB FOR TH4311602 AND 4311602EX) (NO T ILLUSTRATED)(CONTAINS ALL ITEMS ON T HIS PAGE, ADDITIONAL COMPONENTS ARE LI STED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

92

4442180

Check Valve

(CHECK VALVE)

1шт.
