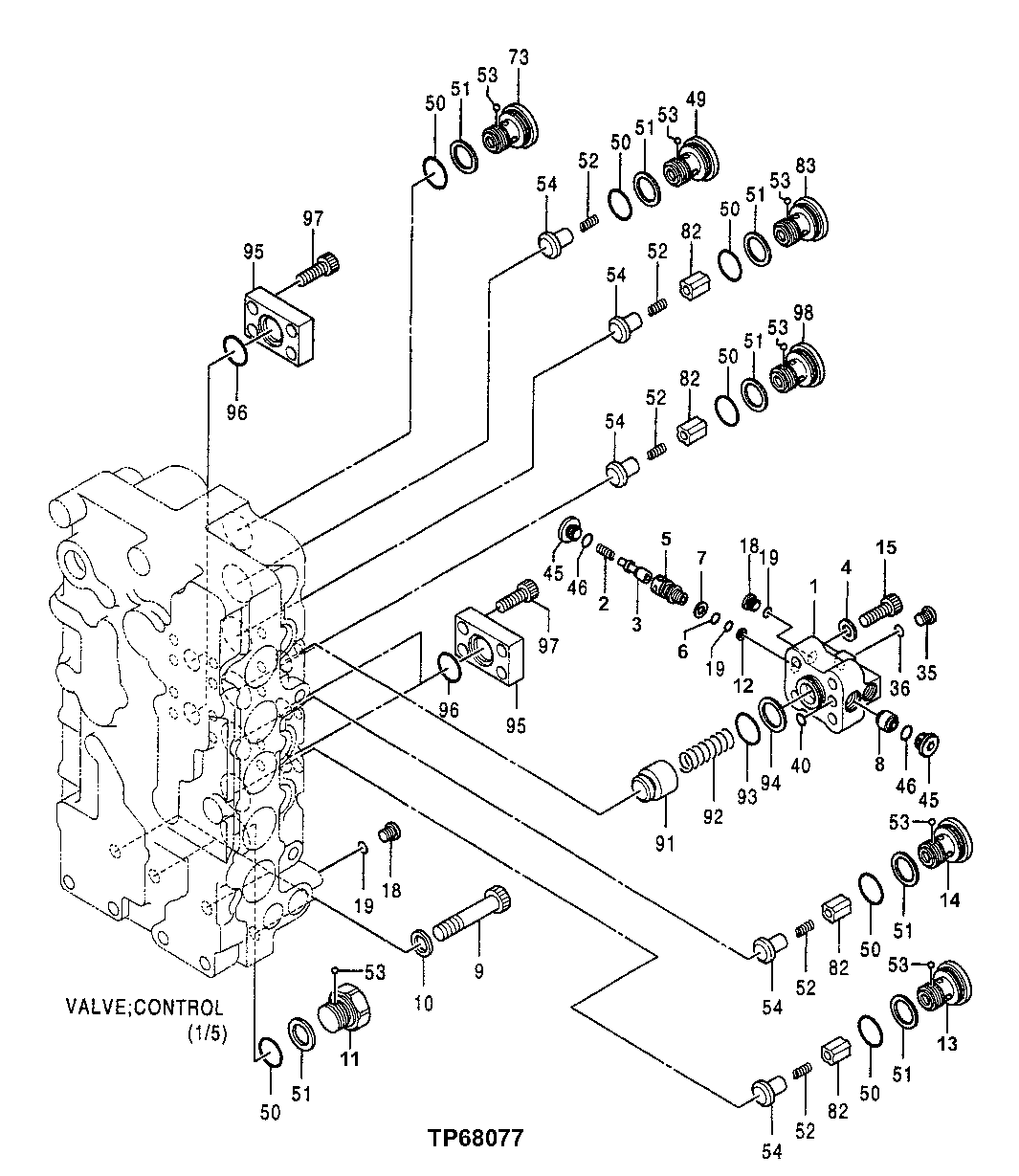

Запчасти John Deere 50 190 - Control Valve 3360 HYDRAULIC SYSTEM

1

0622862

Cover

(SUB FOR AT202046)

1шт.

2

0622863

Spring

(SUB FOR AT202047)

1шт.

3

0622864

Poppet

(SUB FOR AT202048)

1шт.

4

0622865

Washer

(SUB FOR AT202049)

4шт.

5

0622866

Sleeve

(SUB FOR AT202050)

1шт.

6

4140470

O-Ring

(SUB FOR TH109089)

1шт.

7

4040813

Back-Up Ring

(SUB FOR TH110449)

1шт.

8

0622867

Piston

(SUB FOR AT202051)

1шт.

9

19M8564

Screw

M16 X 110

4шт.

10

0189908

Washer

(SUB FOR AT217052)

4шт.

11

0622870

Cap

(SUB FOR AT202054)

1шт.

12

4092265

Back-Up Ring

(SUB FOR TH102598)

1шт.

13

0622868

Cap

(SUB FOR AT202052)

1шт.

14

0622869

Cap

(SUB FOR AT202053)

1шт.

15

M341440

Screw

(SUB FOR AT201961)

4шт.

16

0622860

Cap

(SUB FOR AT202044)

1шт.

18

0622810

Cap

(SUB FOR AT201994)

2шт.

19

M800650

Packing

3шт.

20

19M8734

Screw

M14 X 45

16шт.

35

0622819

Cap

(SUB FOR AT202003)

1шт.

36

CH11570

O-Ring

1шт.

40

4366519

O-Ring

(SUB FOR AT202085 ) (SUB FOR 4153089, THIS APPLICATION ) (SUB FOR 0818012)

1шт.

45

0622822

Cap

(SUB FOR AT202006)

2шт.

46

4366521

O-Ring

(SUB FOR TH109041 ) (SUB FOR 415 3098, OR 0818008THIS APPLICATION)

2шт.

49

0622825

Cap

(SUB FOR AT202009)

1шт.

50

4088425

O-Ring

(SUB FOR AT202080)

7шт.

51

0223104

Back-Up Ring

(SUB FOR AT217055)

7шт.

52

0622827

Spring

(SUB FOR AT202011)

5шт.

53

0189803

Ball

(SUB FOR AT203704)

7шт.

54

0622829

Check Valve

(SUB FOR AT202013)

5шт.

73

0622840

Cap

(SUB FOR AT202024)

1шт.

82

0622848

Check Valve

(SUB FOR AT202032)

4шт.

83

0622849

Cap

(SUB FOR AT202033)

1шт.

91

0622855

Poppet

(SUB FOR AT202039)

1шт.

92

0622856

Spring

(SUB FOR AT202040)

1шт.

93

AT264324

O-Ring

(SUB FOR TH100044)

1шт.

94

4138942

Back-Up Ring

(SUB FOR AT217083)

1шт.

95

0622858

Flange

(SUB FOR AT202042)

4шт.

96

0197011

O-Ring

(SUB FOR AT217054)

4шт.

97

19M8734

Screw

M14 X 45 SUB FOR M341445

16шт.

98

0622860

Cap

SUB FOR AT202044

1шт.

99

4311602

Hyd Actuated Control Valve

(SUB FOR TH4311602 AND 4311602EX) Not Illust rated Additional Components On Separate Pages

1шт.
