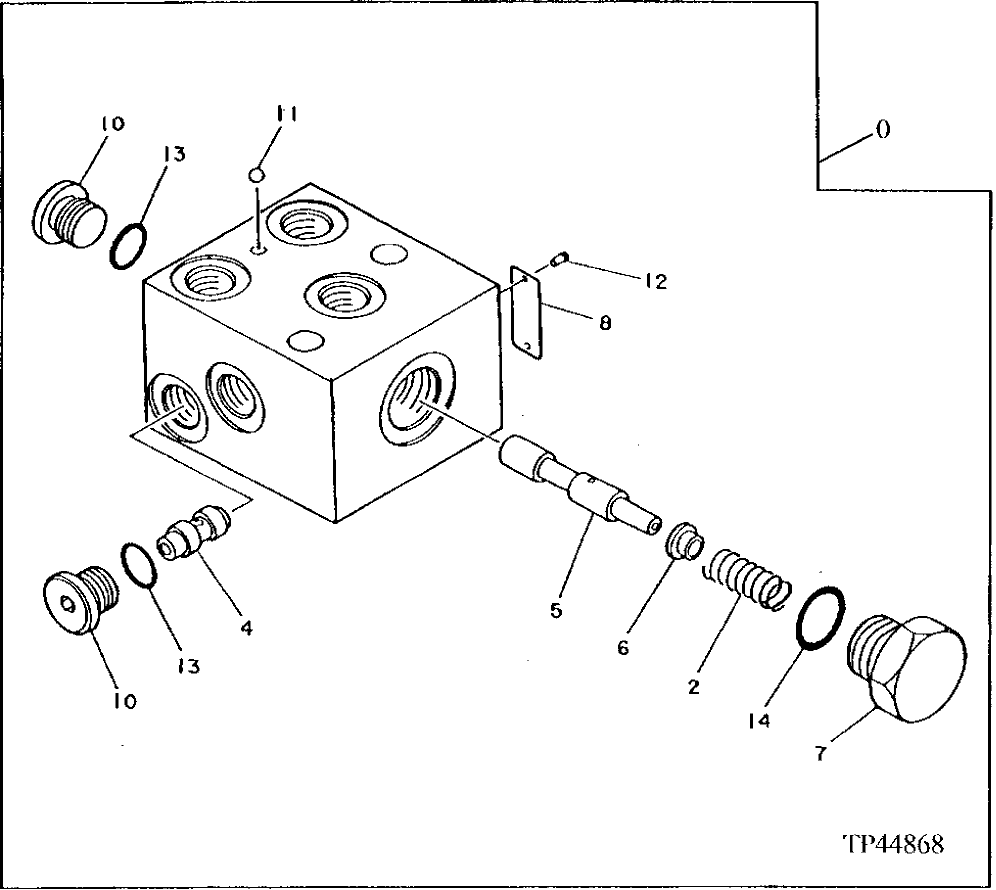

Запчасти John Deere 50 186 - Valve (Junction Block) 3360 HYDRAULIC SYSTEM

0

4258562

Junction Block

(SUB FOR AT202110)

1шт.

2

0492301

Compression Spring

(SUB FOR AT201982)

1шт.

4

0252203

Spool

(SUB FOR AT132172)

1шт.

5

0380503

Spool

(SUB FOR AT201972)

1шт.

6

0492302

Retainer

(SUB FOR AT201983)

1шт.

7

0492303

Plug

(SUB FOR AT201984)

1шт.

10

0314205

Plug

(SUB FOR AT120949 OR TH0314205)

2шт.

11

0228705

Ball

(SUB FOR AT201966)

1шт.

12

0208717

Screw

(SUB FOR TH102697)

2шт.

13

M800650

Packing

2шт.

14

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.
