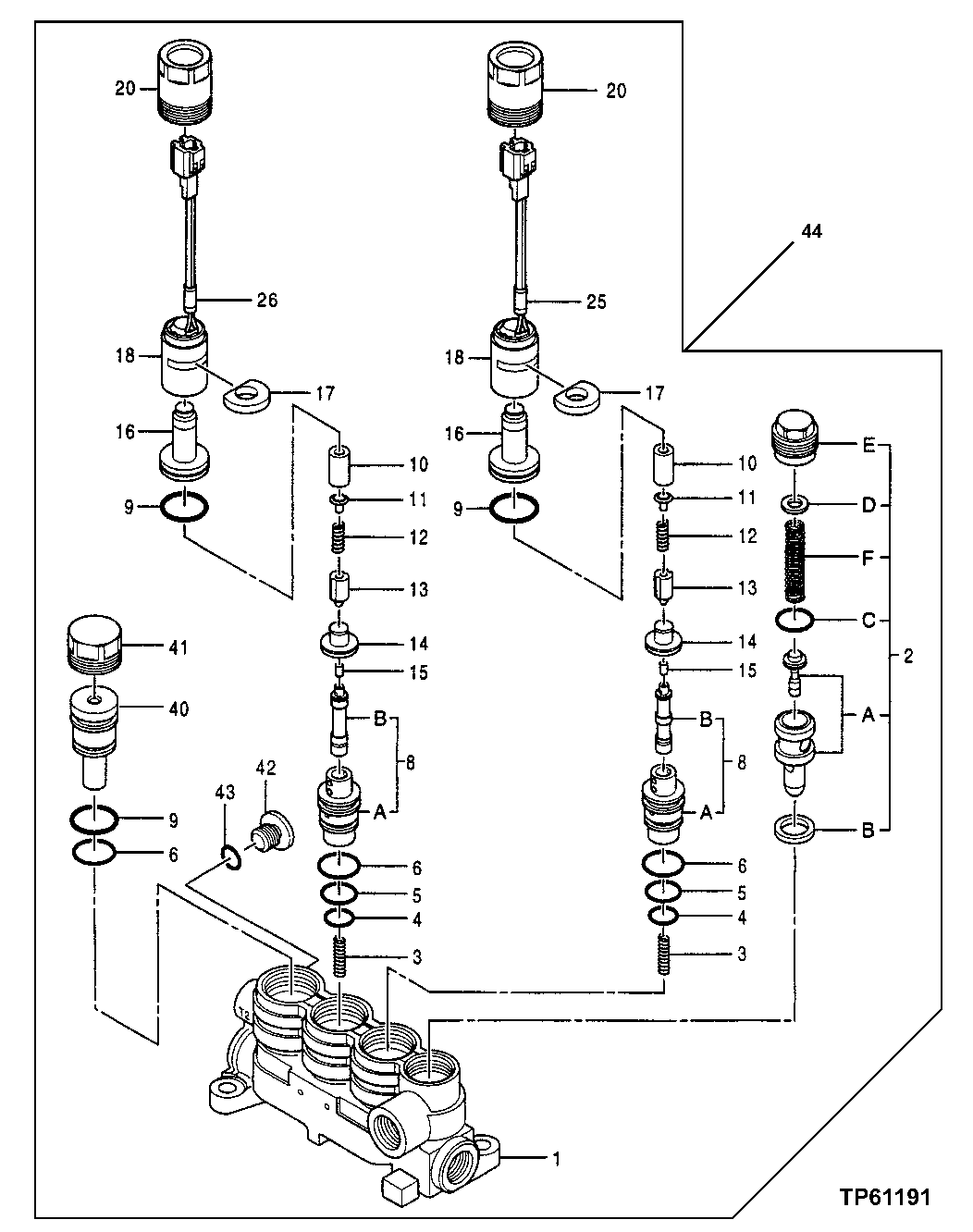

Запчасти John Deere 50 184 - Solenoid Valve 3360 HYDRAULIC SYSTEM

1

TH109249

Housing

1шт.

2

TH109250

Pressure Relief Valve

1шт.

2A

TH109251

Pressure Relief Valve

1шт.

2B

4487648

Gasket

(SUB FOR TH109252 OR 0308704)

1шт.

2C

4487138

O-Ring

(SUB FOR TH109253 OR 0308705)

1шт.

2D

Shim

0.5 MM

1шт.

Shim

0.25 MM

1шт.

Shim

1.0 MM

1шт.

2E

TH109257

Fitting Plug

1шт.

2F

0308710

Spring

(SUB FOR TH109258)

1шт.

3

0308711

Spring

(SUB FOR TH109259)

2шт.

4

CH11570

O-Ring

2шт.

5

985099

O-Ring

(SUB FOR TH101479)

2шт.

6

AT264333

O-Ring

(SUB FOR TH100096)

3шт.

8

TH109260

Valve Spool

2шт.

8A

Housing

2шт.

8B

Spool

2шт.

9

0308713

O-Ring

(SUB FOR TH109261)

3шт.

10

Pipe

( 0397601 NO LONGER AVAI LABLE) (SUB FOR AT201974)

2шт.

4488303

Line

2шт.

11

Valve Seat

(SUB FOR AT201981)( 0433302 NLA)

1шт.

4488306

Valve Seat

1шт.

12

4488310

Spring

(SUB FOR TH109264 OR 0308716)

2шт.

13

3096332

Plunger

(SUB FOR TH109265 OR 0308717)

2шт.

14

0308718

Stop

(SUB FOR TH109266)

2шт.

15

4488302

Rod

(SUB FOR 0308719 ) (SUB FOR TH109267)

2шт.

16

0397603

Housing

(SUB FOR AT217058)

2шт.

17

4488304

Spacer

(SUB FOR TH109269 OR 0308721)

2шт.

18

0451501

Solenoid

(SUB FOR AT201642)

2шт.

20

0308724

Screw

(SUB FOR TH109272)

2шт.

25

TH109273

Tape

1шт.

26

TH109274

Tape

1шт.

40

0683501

Housing

(SUB FOR TH0683501)

1шт.

41

0683502

Fitting Plug

(SUB FOR TH0683502)

1шт.

42

4336166

Pipe Plug

(SUB FOR AT215763 OR 0669615)

1шт.

43

M800650

Packing

1шт.

44

4364071

Solenoid Valve

(SUB FOR TH4364071)

1шт.
