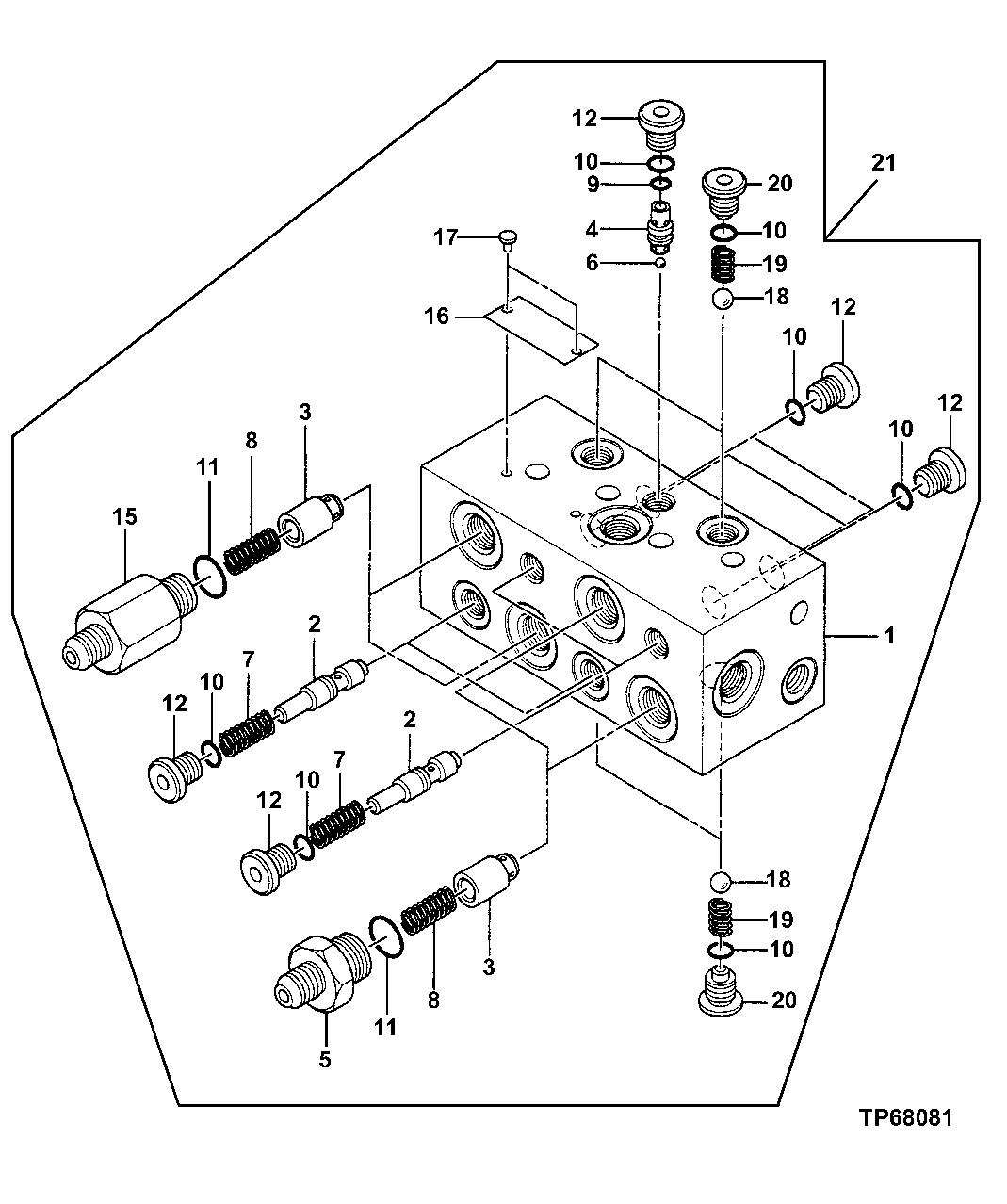

Запчасти John Deere 50 179 - Flow Control Valve 3360 HYDRAULIC SYSTEM

1

Housing

1шт.

2

Spool

4шт.

3

0420901

Plunger

(SUB FOR AT201596)

4шт.

4

0408302

Guide

(SUB FOR AT153887)

1шт.

5

0408303

Threaded Nipple

(SUB FOR AT153888)

2шт.

6

0408304

Ball

(SUB FOR AT153889)

1шт.

7

0408305

Spring

(SUB FOR AT153890)

4шт.

8

0408306

Spring

(SUB FOR AT153891)

4шт.

9

4050481

O-Ring

(SUB FOR TH100786)

1шт.

10

4506408

O-Ring

(SUB FOR TH101490)

13шт.

11

CH11570

O-Ring

4шт.

12

0215220

Fitting Plug

(SUB FOR TH101485)

9шт.

13

Fitting Plug

7шт.

15

0408307

Threaded Nipple

(SUB FOR AT153892)

2шт.

16

Identification Plate

1шт.

17

Bolt

2шт.

18

0369812

Ball

(SUB FOR AT153839)

4шт.

19

0323807

Spring

(SUB FOR AT133692)

4шт.

20

0323806

Pipe Plug

(SUB FOR AT133691)

4шт.

21

4377649

Hyd Actuated Control Valve

(SUB FOR TH4377649)

1шт.
