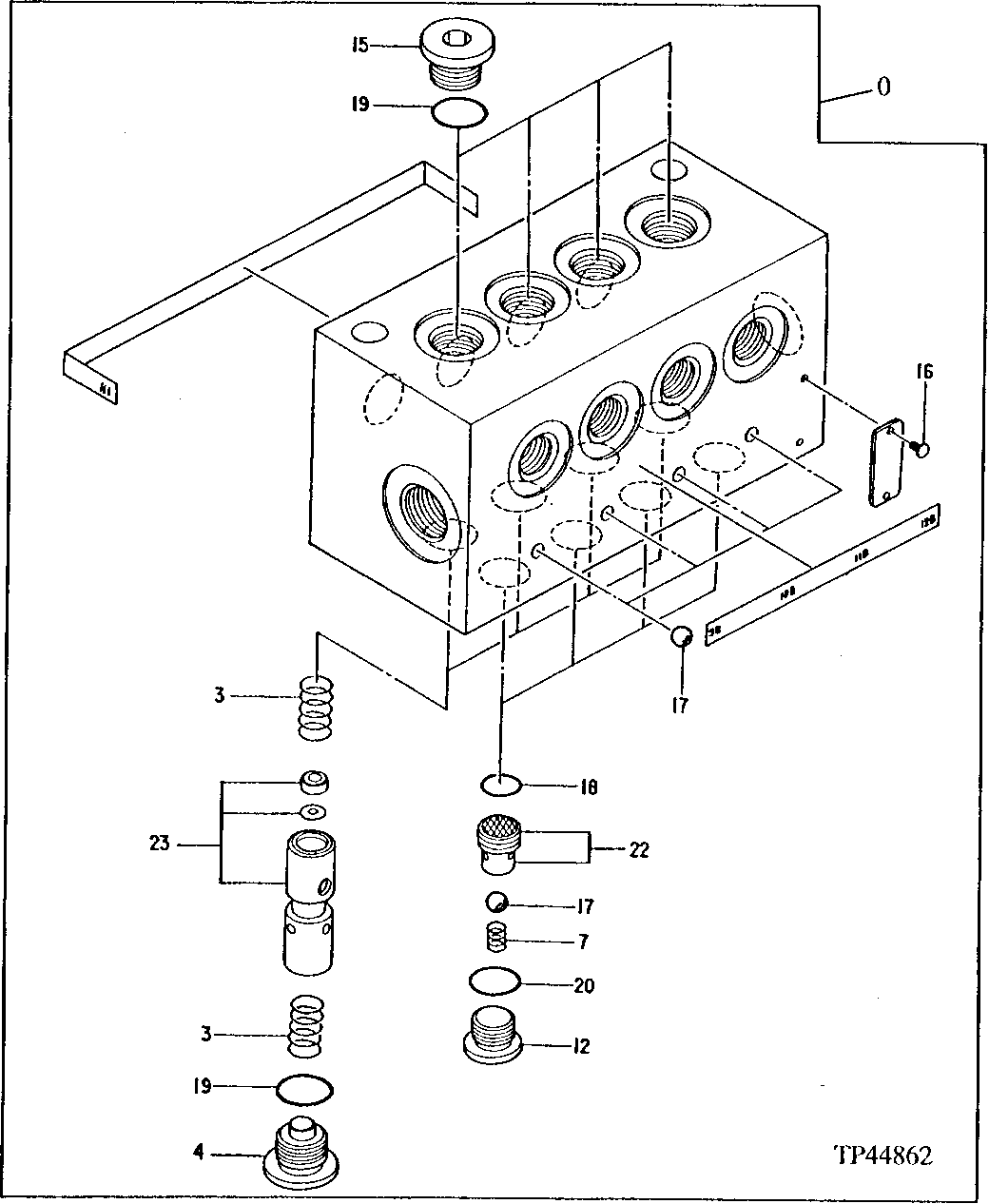

Запчасти John Deere 50 178 - Flow Control Valve 3360 HYDRAULIC SYSTEM

0

4335088

Hyd Actuated Control Valve

(SUB FOR AT201801)(PILOT PIPING)

1шт.

3

0309801

Spring

(SUB FOR TH109280)

8шт.

4

0309802

Pipe Plug

(SUB FOR TH109281)

4шт.

7

0309803

Spring

(SUB FOR TH109282)

4шт.

12

AT49216

Fitting Plug

4шт.

15

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

4шт.

16

0208717

Screw

(SUB FOR TH102697)

2шт.

17

L38718

Ball

6 mm (0.236")

8шт.

18

CH11569

Packing

4шт.

19

CH11570

O-Ring

8шт.

20

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

4шт.

22

0309810

Filter

(SUB FOR TH109290)

4шт.

23

0352401

Plunger

(SUB FOR AT132273)

4шт.
