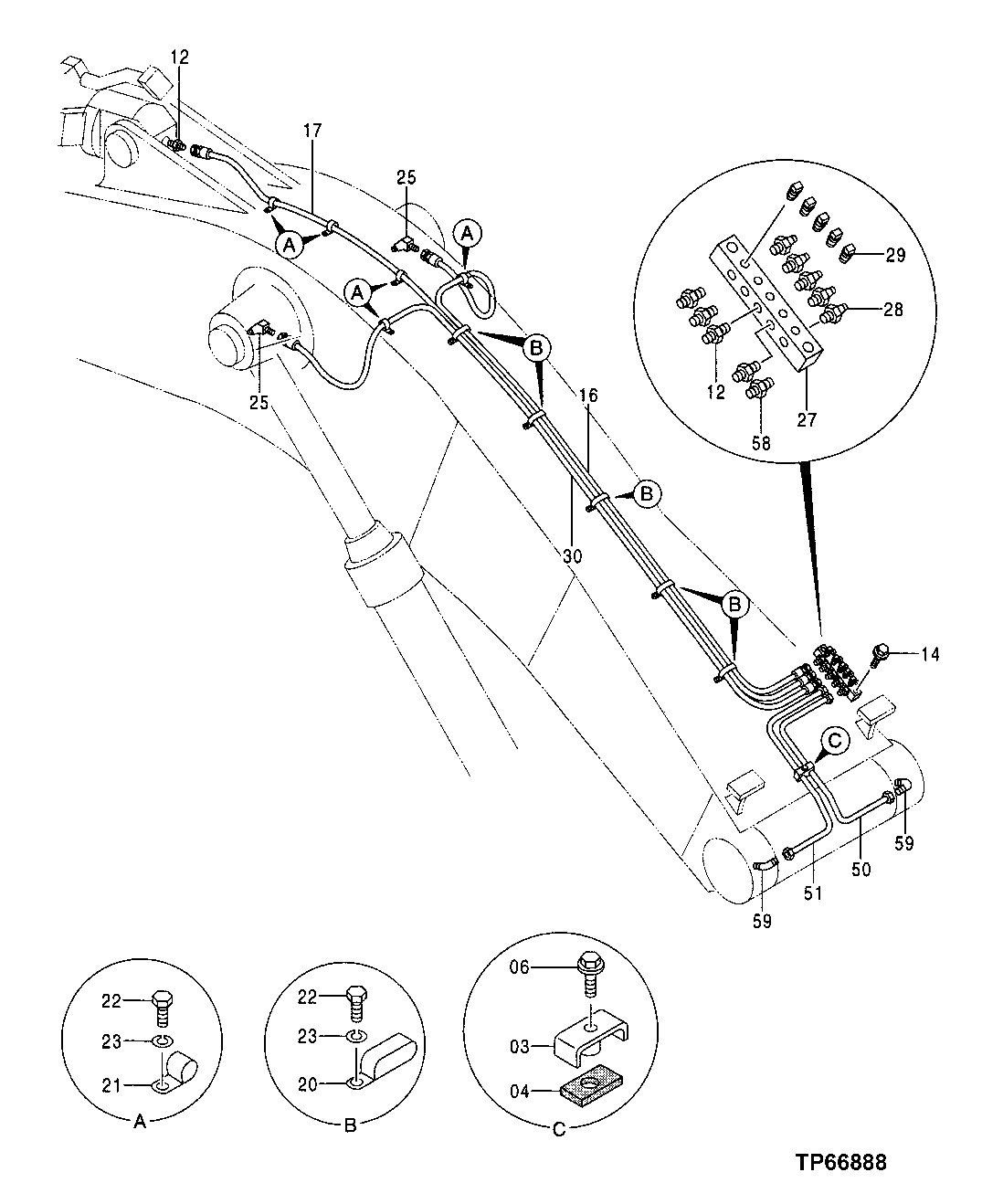

Запчасти John Deere 50 168 - Lubricate Pipings - Standard Boom, Heavy Duty Boom 3360 HYDRAULIC SYSTEM

3

9736422

Clamp

(SUB FOR AT202175)

1шт.

4

AT318012

Isolator

(SUB FOR 4269657 ) (SUB FOR AT130970)

1шт.

6

19M7662

Cap Screw

M10 X 30

1шт.

12M7066

Lock Washer

10 mm

1шт.

12

X4-4FTX-S

Adapter Fitting

(SUB FOR TH100963)

4шт.

14

19M7658

Cap Screw

M10 X 50

2шт.

12M7066

Lock Washer

10 mm

2шт.

16

4391322

Hydraulic Hose

(SUB FOR TH4391322)

1шт.

17

4342975

Hydraulic Hose

(SUB FOR TH4342975)

1шт.

20

T152608

Clamp

5шт.

21

4190261

Clip

(SUB FOR TH109649)

5шт.

22

19M8324

Cap Screw

M10 X 16

10шт.

23

12M7066

Lock Washer

10 mm

10шт.

25

4154655

Elbow Fitting

(SUB FOR TH101056)

2шт.

27

4337738

Junction Block

(SUB FOR TH4337738)

1шт.

28

TH100074

Lubrication Fitting

5шт.

29

T115963

Fitting Plug

5шт.

30

4391323

Hydraulic Hose

(SUB FOR TH4391323)

1шт.

50

4343018

Oil Line

(SUB FOR TH4343018)

1шт.

51

4343019

Oil Line

(SUB FOR TH4343019)

1шт.

58

4130169

Fitting

(SUB FOR TH101391)

1шт.

59

4130175

Fitting

(SUB FOR TH101392)

2шт.
