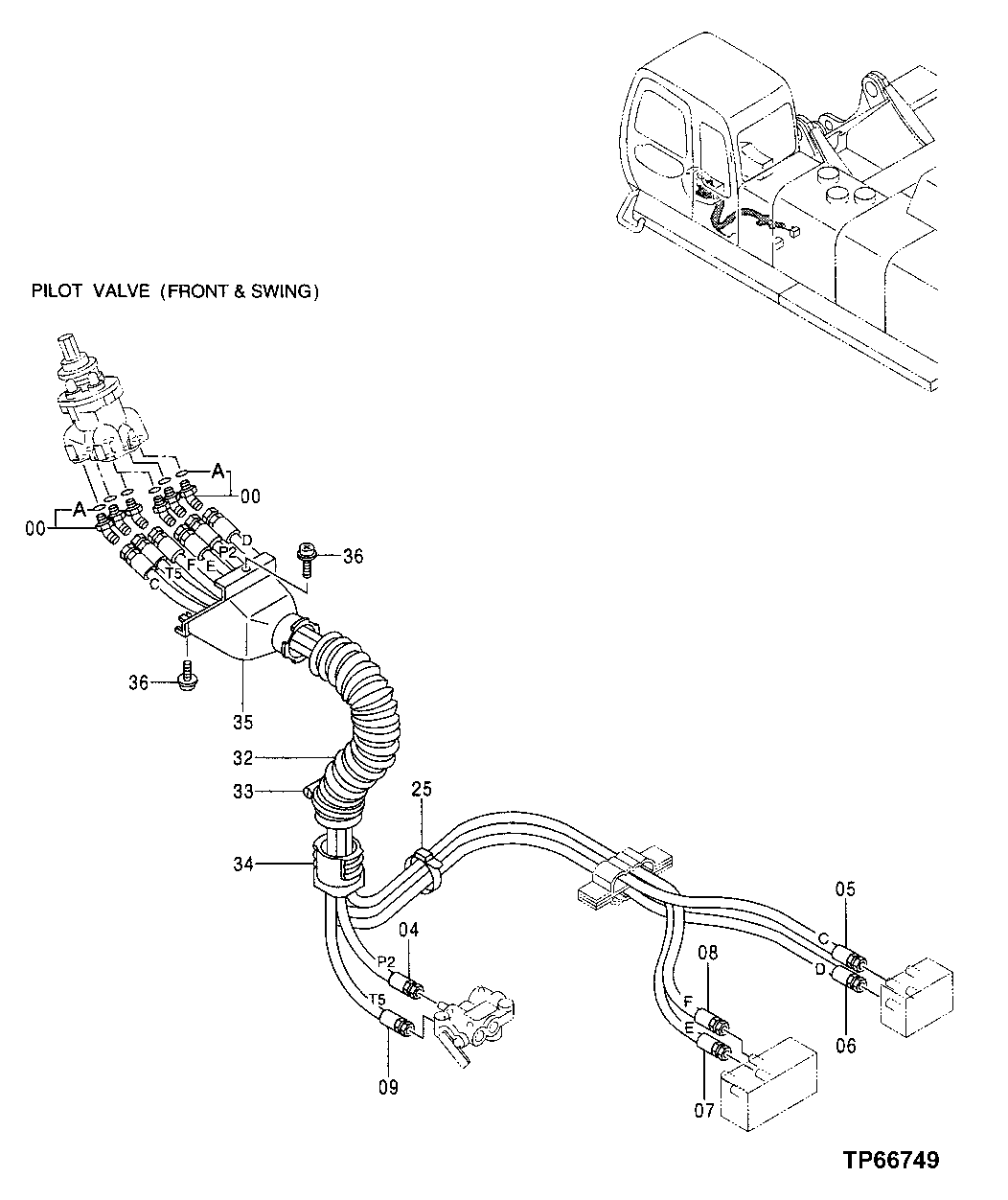

Запчасти John Deere 50 165 - Pilot Pipings - JIS Pattern 3360 HYDRAULIC SYSTEM

0

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

0A

M800650

Packing

1шт.

4

AT215538

Hydraulic Hose

9/16" X 880 mm (34-3/4") X 9/16"

1шт.

5

4387231

Hydraulic Hose

(SUB FOR AT217137)

1шт.

6

4387232

Hydraulic Hose

(SUB FOR AT217138)

1шт.

7

4387234

Hydraulic Hose

(SUB FOR AT217139)

1шт.

8

4387236

Hydraulic Hose

(SUB FOR AT217140)

1шт.

9

AT215539

Hydraulic Hose

9/16" X 980 mm (38-1/2") X 9/16"

1шт.

25

H77698

Tie Band

1шт.

32

4351175

Hose

(SUB FOR AT213957)

1шт.

33

4351774

Clamp

(SUB FOR AT213962)

1шт.

34

3079728

Bushing

(SUB FOR AT250589)

1шт.

35

3072745

Cover

(SUB FOR AT213784)

1шт.

36

Screw With Washer

( J460620 NO LONGER AVAI LABLE) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.
