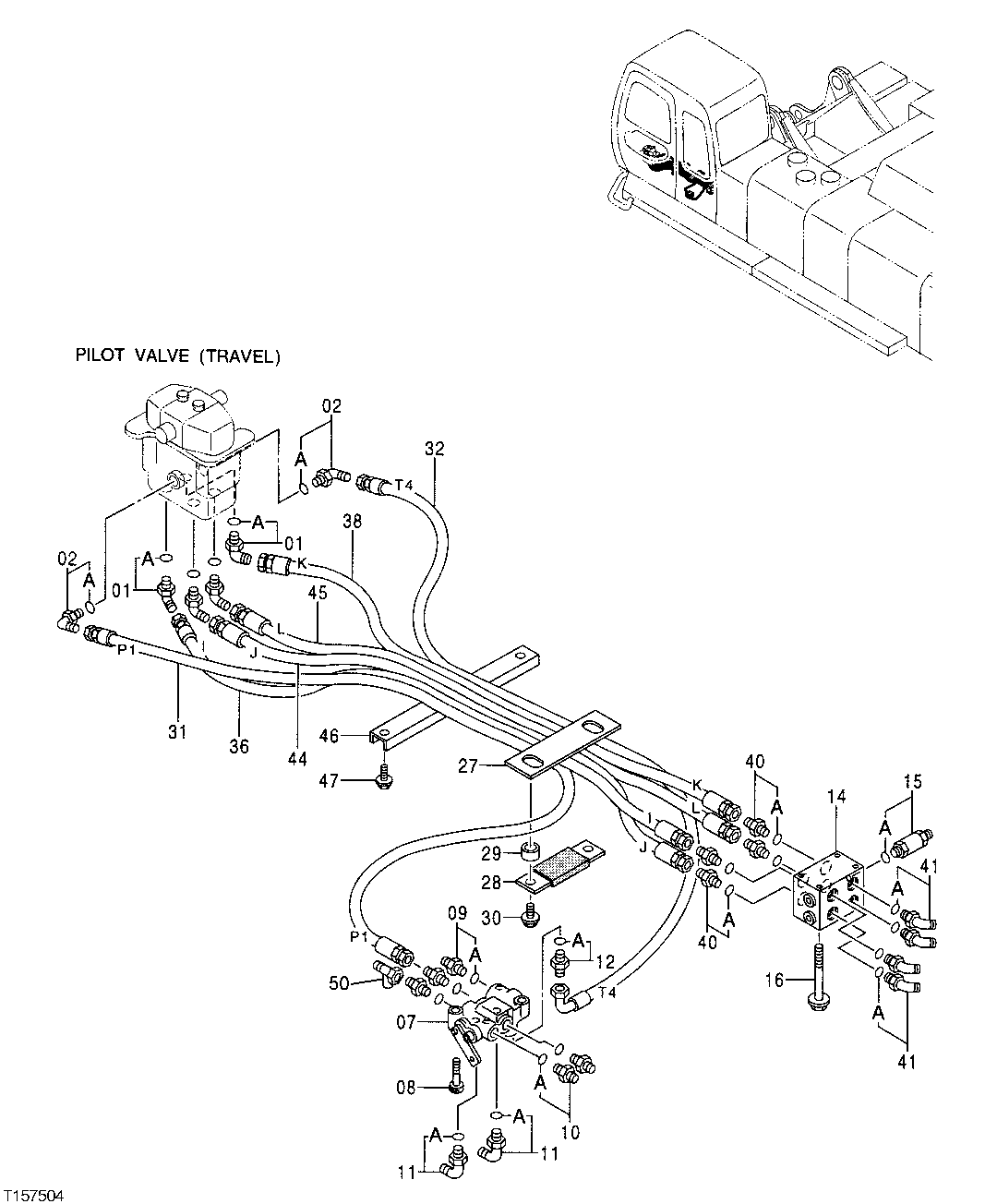

Запчасти John Deere 50 163 - PILOT LINES (FROM PROPEL VALVE) 3360 HYDRAULIC SYSTEM

1

AT318014

Elbow Fitting

SUB FOR 4156434; SUB FOR TH101930

4шт.

1A

M800650

Packing

1шт.

2

AT318014

Elbow Fitting

SUB FOR 4156434; SUB FOR TH101930

2шт.

2A

M800650

Packing

1шт.

7

4254611

Flow Control Hyd. Valve

1шт.

8

J781045

Screw

SUB FOR AT213616

2шт.

9

4261938

Fitting

SUB FOR AT154285

3шт.

9A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

10

4200466

Adapter Fitting

SUB FOR TH108320

2шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

A852333

Elbow Fitting

SUB FOR TH101047; SUB FOR 4154671

2шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

12

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

12A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

4254612

Flow Control Hyd. Valve

1шт.

15

4254563

Pressure Switch

SUB FOR AT154212

1шт.

15A

CH19111

O-Ring

7.645 X 1.778 mm (0.301" X 0.070")

1шт.

16

19M8456

Cap Screw

M8 X 100

4шт.

Washer

12M7065 NLA

4шт.

27

4270771

Plate

SUB FOR AT154311

1шт.

28

9736384

Plate

SUB FOR AT154544

1шт.

29

R54204

Half Sleeve

SUB FOR AT154312 OR 4270773

2шт.

30

19M8324

Cap Screw

M10 X 16

2шт.

12M7066

Lock Washer

10 mm

2шт.

31

4323290

Hydraulic Hose

SUB FOR AT217091

1шт.

32

AT216978

Hydraulic Hose

9/16" X 1200 mm (47-1/4") X 9/16"

1шт.

36

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

38

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

40

4200466

Adapter Fitting

SUB FOR TH108320

4шт.

40A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

41

4190244

Elbow Fitting

SUB FOR TH106152

4шт.

41A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

44

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

45

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

46

4323723

Channel

SUB FOR AT201277

1шт.

47

19M8324

Cap Screw

M10 X 16

2шт.

12M7066

Lock Washer

10 mm

2шт.

50

4246672

Tee Fitting

1шт.
