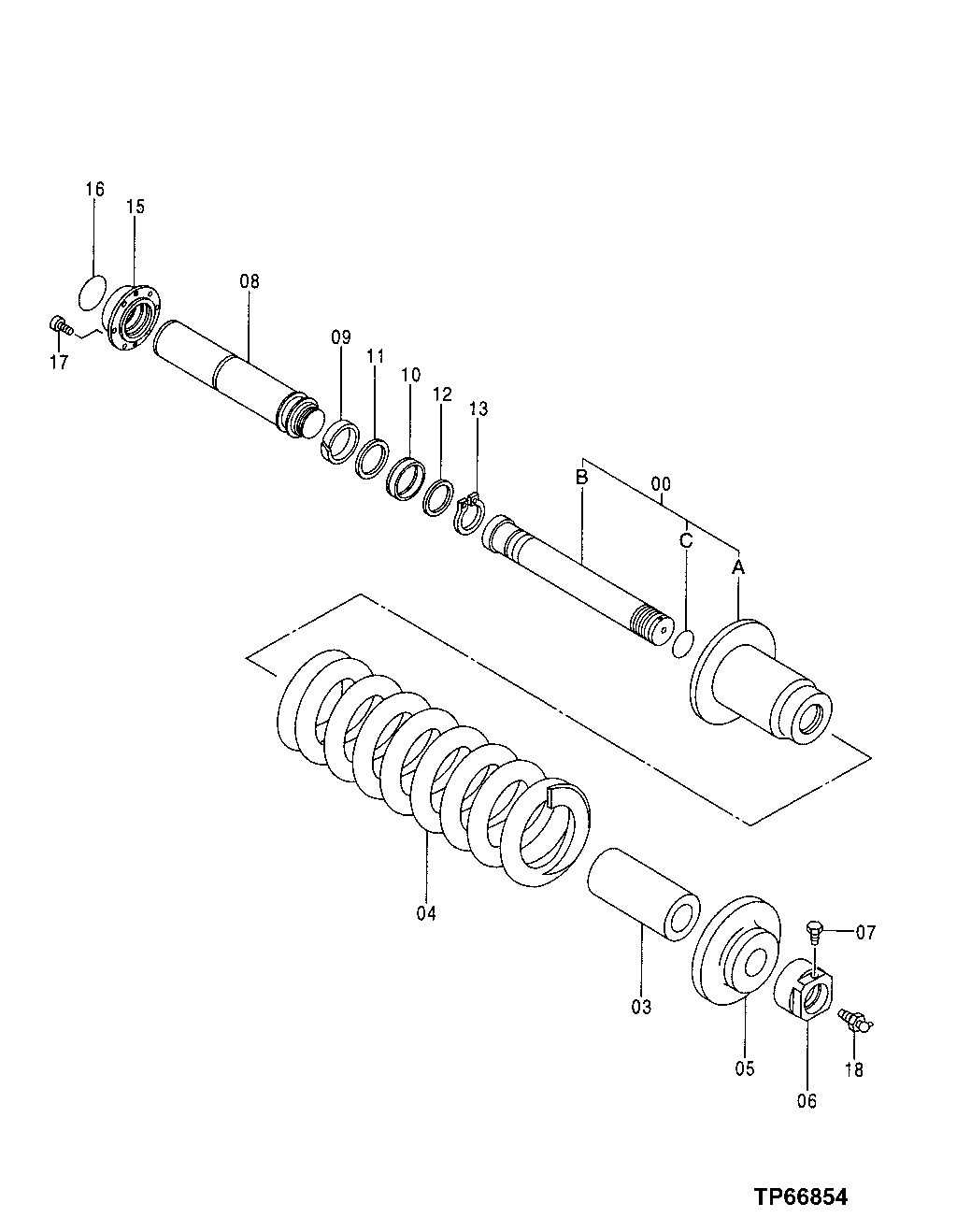

Запчасти John Deere 50 6 - Adjuster 0130 Track Systems

0

Cylinder

NLA

1шт.

0A

9152609

Cylinder

SUB FOR 3076303 AND TH3076303

1шт.

0B

2039460

Hydraulic Cylinder Rod

SUB FOR TH2039460

1шт.

0C

AT264222

O-Ring

SUB FOR AT121661 AND 4502700

1шт.

3

4370470

Spacer

SUB FOR TH4370470

1шт.

4

3096073

Spring

SUB FOR TH3067055

1шт.

5

3076012

Retainer

SUB FOR TH3076012

1шт.

6

4373195

Nut

SUB FOR TH4373195

1шт.

7

4215453

Bolt

SUB FOR TH4215453

1шт.

8

3070288

Hydraulic Cylinder Rod

SUB FOR TH3070288

1шт.

9

4325289

Wear Ring

SUB FOR TH4325289

1шт.

10

4098184

Seal

SUB FOR TH4098184

1шт.

11

4098185

Back-Up Ring

SUB FOR TH4098185

1шт.

12

4098270

Ring

SUB FOR TH4098270

1шт.

13

991353

Snap Ring

SUB FOR AT132143

1шт.

15

3067053

Guide

SUB FOR TH3067053

1шт.

16

4046608

O-Ring

SUB FOR TH4046608

1шт.

17

19M8531

Screw

M14 X 35

6шт.

18

4255055

Valve

SUB FOR AT154223

1шт.
