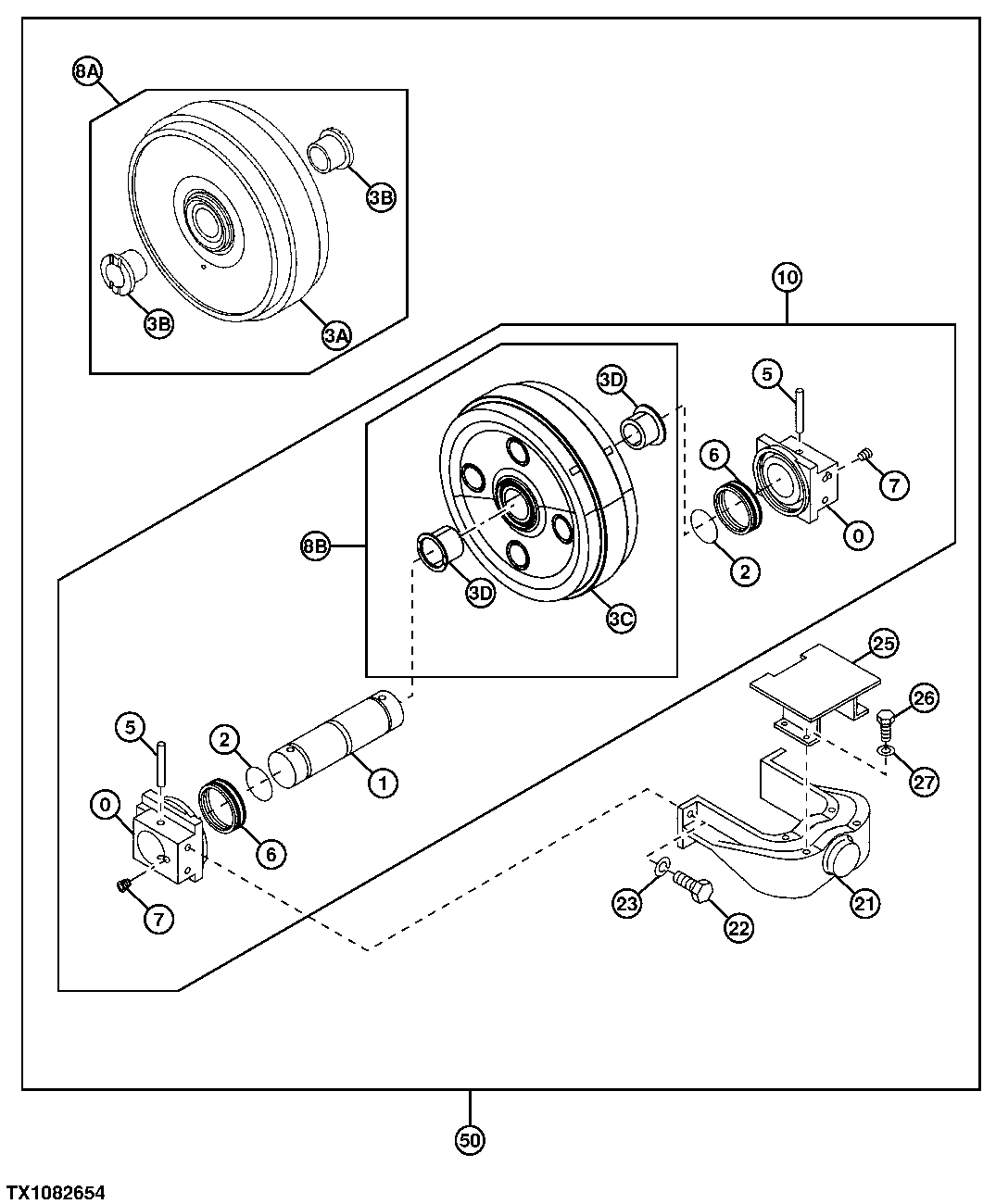

Запчасти John Deere 50 5 - Front Idler 0130 Track Systems

0

Pedestal

SUB FOR 1020509; SUB 2044336; TH1020509 NLA

2шт.

Pedestal

SUB 4436680; 2044336 NLA

2шт.

4436680

Pedestal

2шт.

1

2035972

Axle

SUB FOR TH2035972

1шт.

4658414

Axle

3086366 NLA

1шт.

2

AT264340

O-Ring

SUB FOR TH100123 OR 992446; 3086367 NLA

2шт.

3A

Bushing

SUB 2044035; ALSO ORDER (2) 3086369; 6014404 NLA

1шт.

3B

2040431

Bushing

SUB FOR TH2040431

2шт.

3C

2044035

Pulley

2044035 NSEP

1шт.

3D

2040431

Bushing

SUB FOR 3086369

2шт.

5

4215452

Dowel Pin

2шт.

6

4345581

Seal

SUB FOR TH4345581

2шт.

4637675

Seal Kit

2шт.

7

942011

Fitting Plug

SUB FOR 94-2011 AND TH100434

2шт.

8A

Track Idler

SUB FOR 9134108; TH91341 08 NLA EACH SIDE OF UNIT

1шт.

8B

FYA00026682

Idler

SUB FOR 3086368, AND 4658415

1шт.

10

Pulley

SUB 2044033; 9134272 NLA

1шт.

Pulley

SUB 4436682; 2044033 NLA

1шт.

4436682

Pulley

SUB FOR 9134272

1шт.

21

2035974

Yoke

SUB FOR TH2035974

1шт.

4658417

Yoke

2044036 NLA

1шт.

22

19M7888

Cap Screw

M24 X 60 SUB FOR J912460

4шт.

23

12H234

Lock Washer

1"

4шт.

25

8057897

Guard

SUB FOR TH8057897

1шт.

26

19M8011

Cap Screw

M12 X 30

4шт.

27

12H301

Lock Washer

1/2"

4шт.

50

Idler

SUB 4387660; 9134273 NLA

1шт.

Idler

SUB 4433229; 4387660 NLA

1шт.

4433229

Idler

SUB COMPONENTS

1шт.
