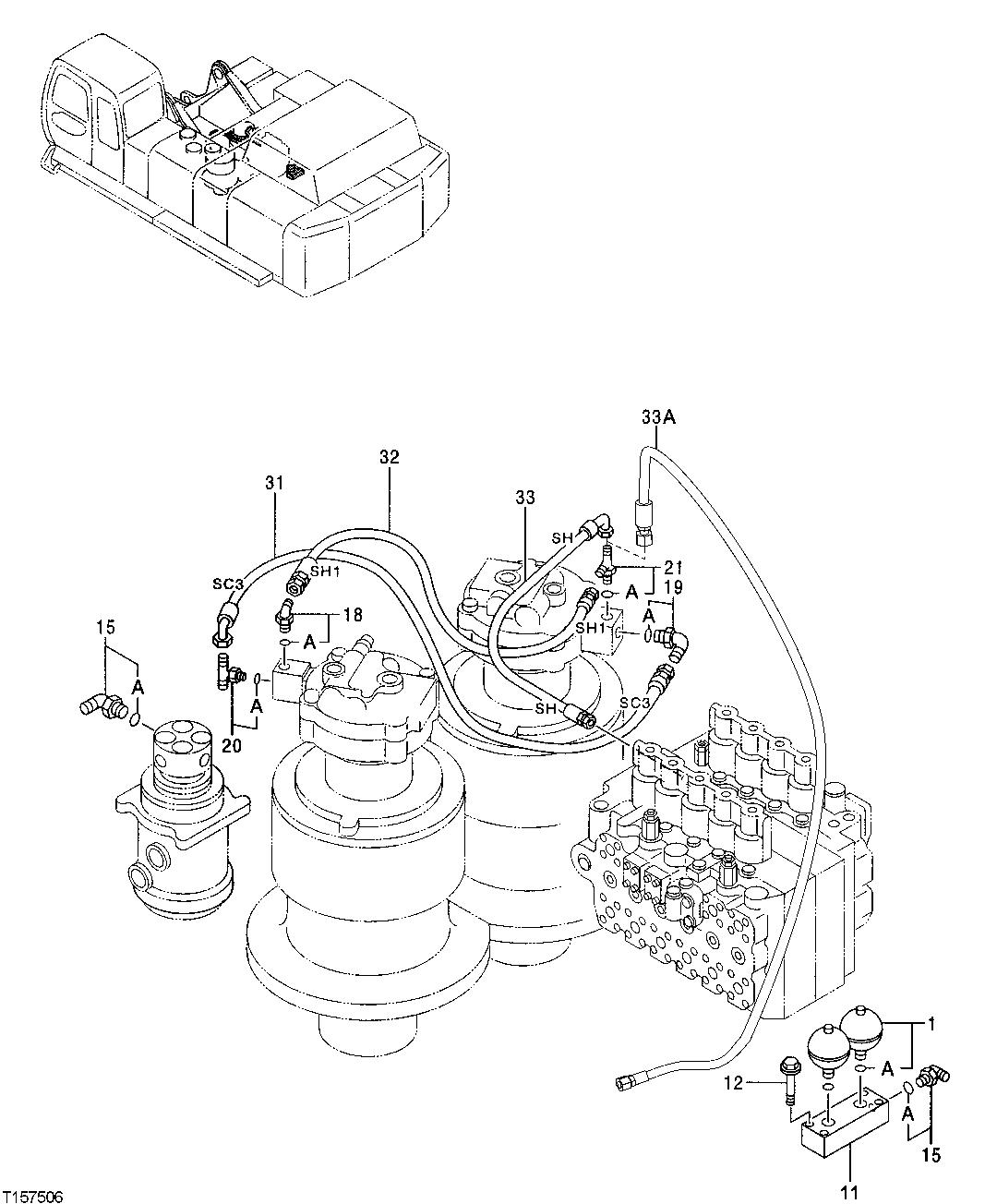

Запчасти John Deere 50 149 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

FYA00025723

Hydraulic Accumulator

SUB FOR AT162984 OR 4195978

2шт.

1A

CH14634

O-Ring

17.800 X 2.400 mm (0.701" X 3/32")

1шт.

11

3046868

Manifold

SUB FOR TH3046868

1шт.

12

19M7742

Cap Screw

M10 X 65

4шт.

12M7066

Lock Washer

10 mm

4шт.

15

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

2шт.

15A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

18

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

18A

M800650

Packing

1шт.

19

AT318014

Elbow Fitting

SUB FOR 4156434, SUB FOR TH101930

1шт.

19A

M800650

Packing

1шт.

20

4208473

Tee Fitting

SUB FOR TH110203

1шт.

20A

M800650

Packing

1шт.

21

4203171

Tee Fitting

SUB FOR TH110578

1шт.

4219346

Tee Fitting

1шт.

21A

M800650

Packing

1шт.

31

4375881

Hose

SUB FOR TH4375881

1шт.

32

4375840

Hose

SUB FOR TH4375840

1шт.

33

4375868

Hydraulic Hose

1шт.

33A

4346000

Hydraulic Hose

1шт.
