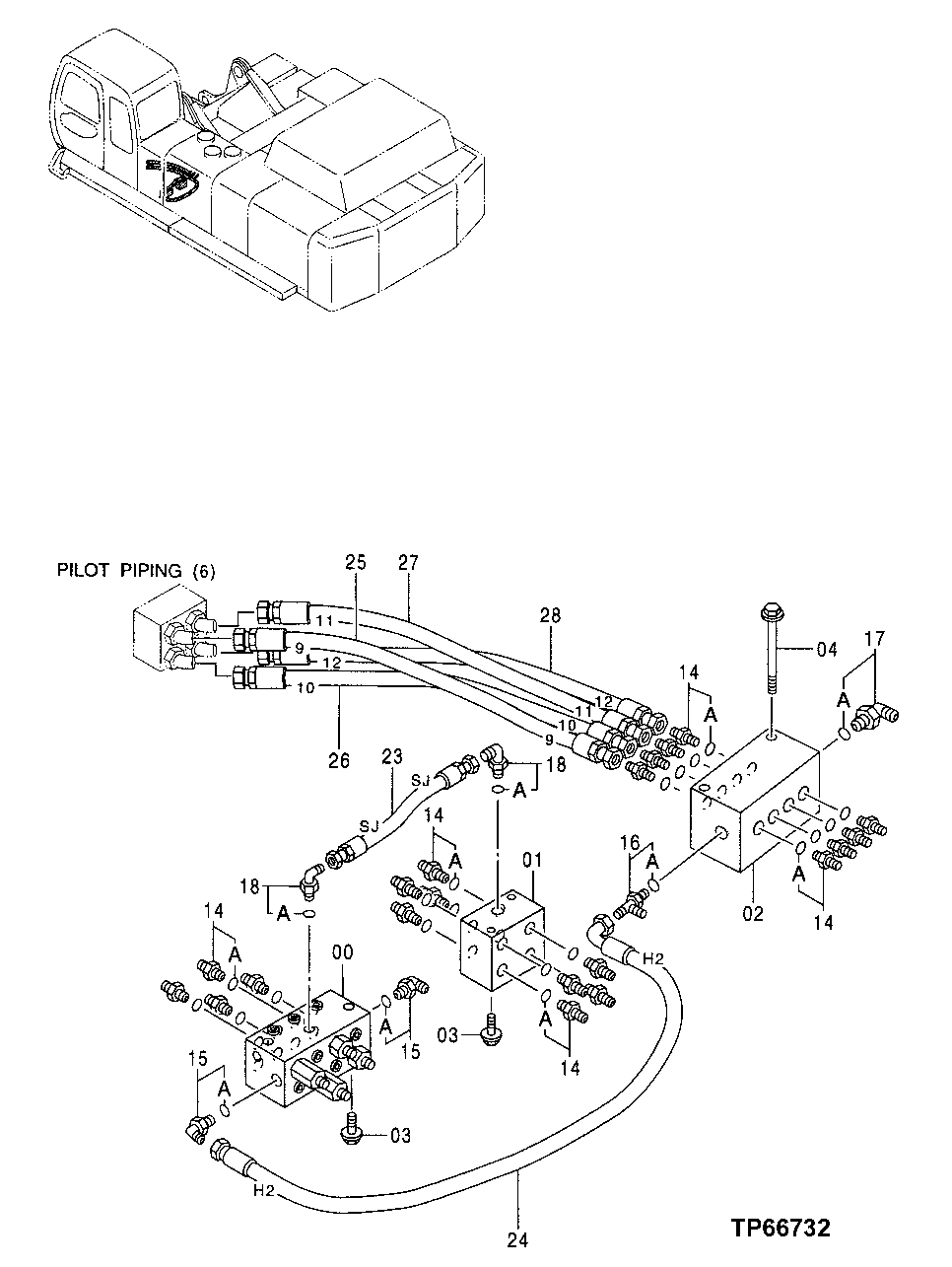

Запчасти John Deere 50 148 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

0

4377649

Hyd Actuated Control Valve

SUB FOR TH4377649; FLOW CONTROL

1шт.

1

4254613

Flow Control Hyd. Valve

SUB FOR AT154218; SHUTTLE

1шт.

2

4335088

Hyd Actuated Control Valve

SUB FOR AT201801; FLOW CONTROL

1шт.

3

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

4шт.

Washer

12M7065 NLA

4шт.

4

4305337

Screw With Washer

SUB FOR AT159662

2шт.

14

4200466

Adapter Fitting

SUB FOR TH108320

20шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

A852333

Elbow Fitting

SUB FOR TH101047; SUB FOR 4154671

2шт.

15A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

16

4296066

Tee Fitting

SUB FOR TH4296066

1шт.

16A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

17

4200471

Elbow Fitting

SUB FOR TH108399

1шт.

17A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

18

4154670

Elbow Fitting

SUB FOR TH100951

2шт.

18A

M800650

Packing

1шт.

23

AT202491

Hydraulic Hose

11.1252" X 300 mm (11-3/4") X 11.1252"

1шт.

24

4375878

Hose

SUB FOR TH4375878

1шт.

25

AT216981

Hydraulic Hose

9/16" X 600 mm (23-1/2") X 9/16"

1шт.

26

AT216982

Hydraulic Hose

9/16" X 600 mm (23-1/2") X 9/16"

1шт.

27

AT216983

Hydraulic Hose

9/16" X 600 mm (23-1/2") X 9/16"

1шт.

28

AT216984

Hydraulic Hose

9/16" X 600 mm (23-1/2") X 9/16"

1шт.
