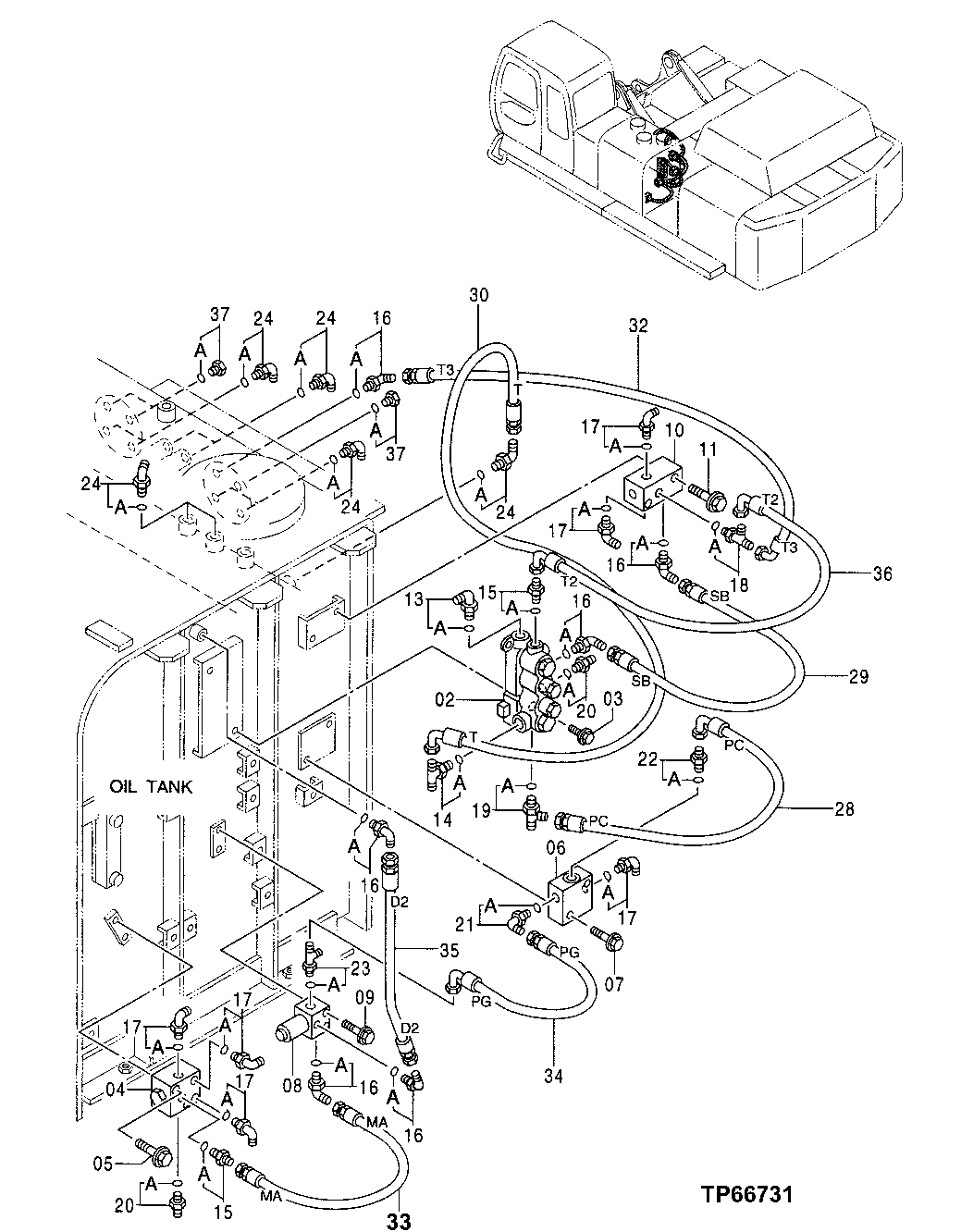

Запчасти John Deere 50 147 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

2

4364071

Solenoid Valve

SUB FOR TH4364071

1шт.

3

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

4

4258562

Junction Block

SUB FOR AT202110

1шт.

5

19M7875

Cap Screw

M10 X 70

2шт.

12M7066

Lock Washer

10 mm

2шт.

6

9162817

Check Valve

SUB FOR 9123033 OR AT201932

1шт.

7

19M7362

Cap Screw

M12 X 55

2шт.

12H301

Lock Washer

1/2"

2шт.

8

4729022

Solenoid Valve

SUB FOR AT202111 AND 4261289

1шт.

9

Screw With Washer

J010860 NLA

2шт.

19M7932

Cap Screw

M8 X 16

2шт.

Washer

12M7065 NLA

2шт.

10

4357517

Flow Control Hyd. Valve

SUB FOR TH4357517

1шт.

11

19M7329

Cap Screw

M10 X 75

2шт.

13

4277651

Elbow Fitting

SUB FOR TH4277651

1шт.

13A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

14

4266330

Tee Fitting

SUB FOR TH4266330

1шт.

14A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

15

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

15A

M800650

Packing

1шт.

16

4154670

Elbow Fitting

SUB FOR TH100951

6шт.

16A

M800650

Packing

1шт.

17

AT318014

Elbow Fitting

SUB FOR 4156434; SUB FOR TH101930

6шт.

17A

M800650

Packing

1шт.

18

4203171

Tee Fitting

SUB FOR TH110578

1шт.

18A

M800650

Packing

1шт.

19

4296066

Tee Fitting

SUB FOR TH4296066

1шт.

19A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

20

4200467

Adapter Fitting

SUB FOR TH108417

2шт.

20A

M800650

Packing

1шт.

21

4200470

Elbow Fitting

SUB FOR AT131737

1шт.

21A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

22

X8-10F5OX

Adapter Fitting

SUB FOR TH101006

1шт.

22A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

23

4239712

Tee Fitting

SUB FOR TH4239712

1шт.

23A

M800650

Packing

1шт.

24

A852333

Elbow Fitting

SUB FOR TH101047; SUB FOR 4154671

9шт.

24A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

28

4375872

Hose

SUB FOR TH4375872

1шт.

29

4375833

Hose

SUB FOR TH4375833

1шт.

30

4368704

Hose

SUB FOR TH4368704

1шт.

32

4389987

Hose

SUB FOR TH4389987

1шт.

33

4375834

Hose

SUB FOR TH4375834

1шт.

34

4478168

Hose

SUB FOR 4387624 AND 4217317-S

1шт.

35

4389917

Hydraulic Hose

SUB FOR TH4389917

1шт.

36

4384020

Hydraulic Hose

SUB FOR TH4384020

1шт.

37

4093624

Drain Plug

SUB FOR AT318013; SUB FOR TH102536

2шт.

37A

M800650

Packing

1шт.
