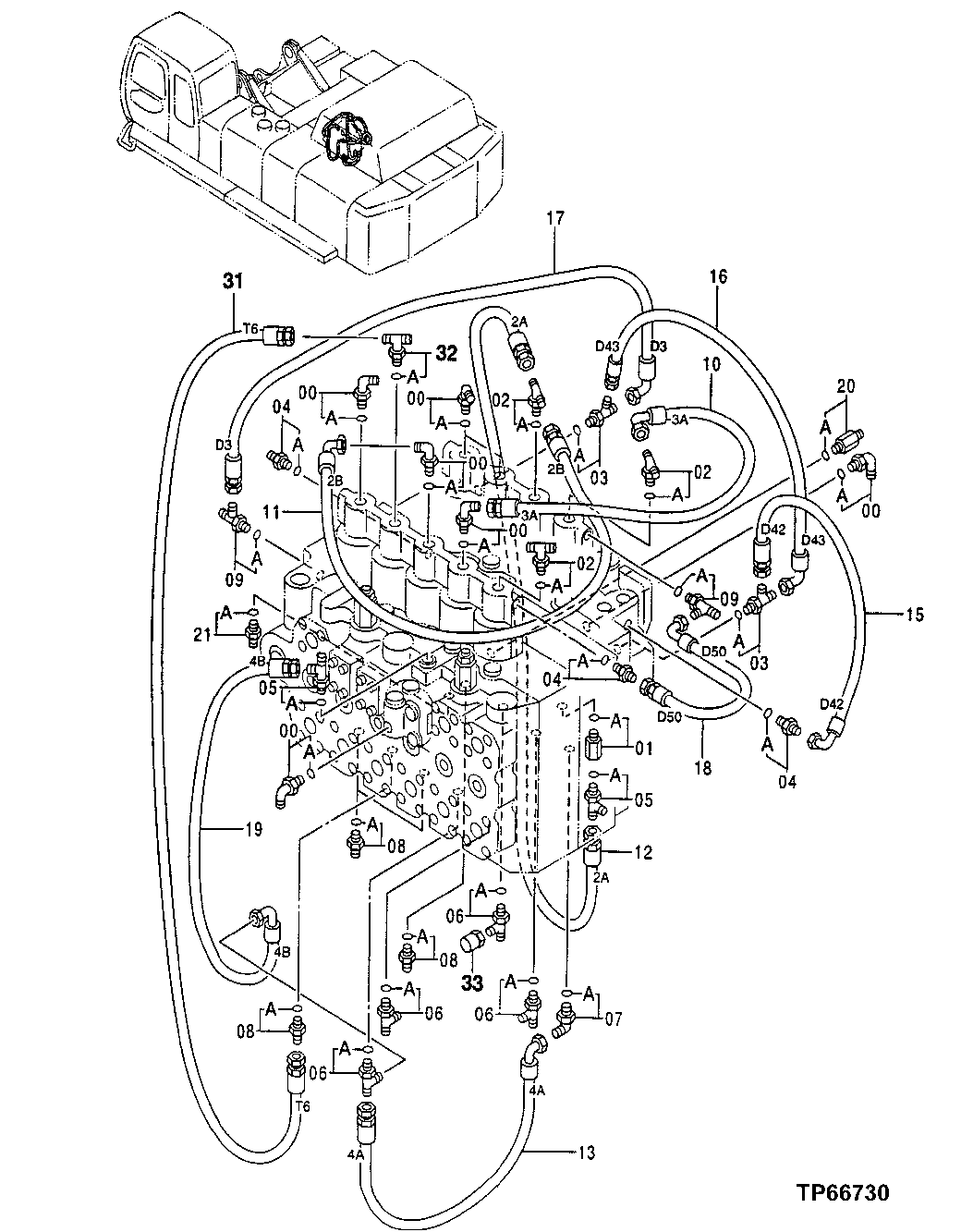

Запчасти John Deere 50 146 - PILOT PIPINGS (LONG ARM) 3360 HYDRAULIC SYSTEM

0

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

7шт.

0A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

1

4202564

Adapter Fitting

(SUB FOR AT215879)

1шт.

1A

M800650

Packing

1шт.

2

4208911

Tee Fitting

(SUB FOR AT126456)

3шт.

2A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

3

4203171

Tee Fitting

(SUB FOR TH110578)

2шт.

3A

M800650

Packing

1шт.

4

4200465

Adapter Fitting

(SUB FOR TH108328)

3шт.

4A

M800650

Packing

1шт.

5

4207300

Tee Fitting

(SUB FOR AT126381)

2шт.

5A

M800650

Packing

1шт.

6

4205363

Tee Fitting

(SUB FOR AT126362)

4шт.

6A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

7

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

9

4219346

Tee Fitting

(SUB FOR AT132516)

2шт.

9A

M800650

Packing

1шт.

10

4367006

Hose

(SUB FOR TH4367006)

1шт.

11

4375877

Hose

(SUB FOR TH4375877)

1шт.

12

4375855

Hose

(SUB FOR TH4375855)

1шт.

13

4375875

Hose

(SUB FOR TH4375875)

1шт.

15

4375869

Hose

(SUB FOR TH4375869)

1шт.

16

4375873

Hose

(SUB FOR TH4375873)

1шт.

17

4375874

Hose

(SUB FOR TH4375874)

1шт.

18

4364565

Hose

(SUB FOR TH4364565)

1шт.

19

4366788

Hydraulic Hose

(SUB FOR 4375883)

1шт.

20

4223934

Adapter Fitting

(SUB FOR AT134092)

1шт.

20A

M800650

Packing

1шт.

21

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

21A

M800650

Packing

1шт.

31

AT217773

Hydraulic Hose

(SUB FOR AT215543)

1шт.

32

4208911

Tee Fitting

(SUB FOR AT126456)

1шт.

32A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

33

R39783

Fitting

1шт.
