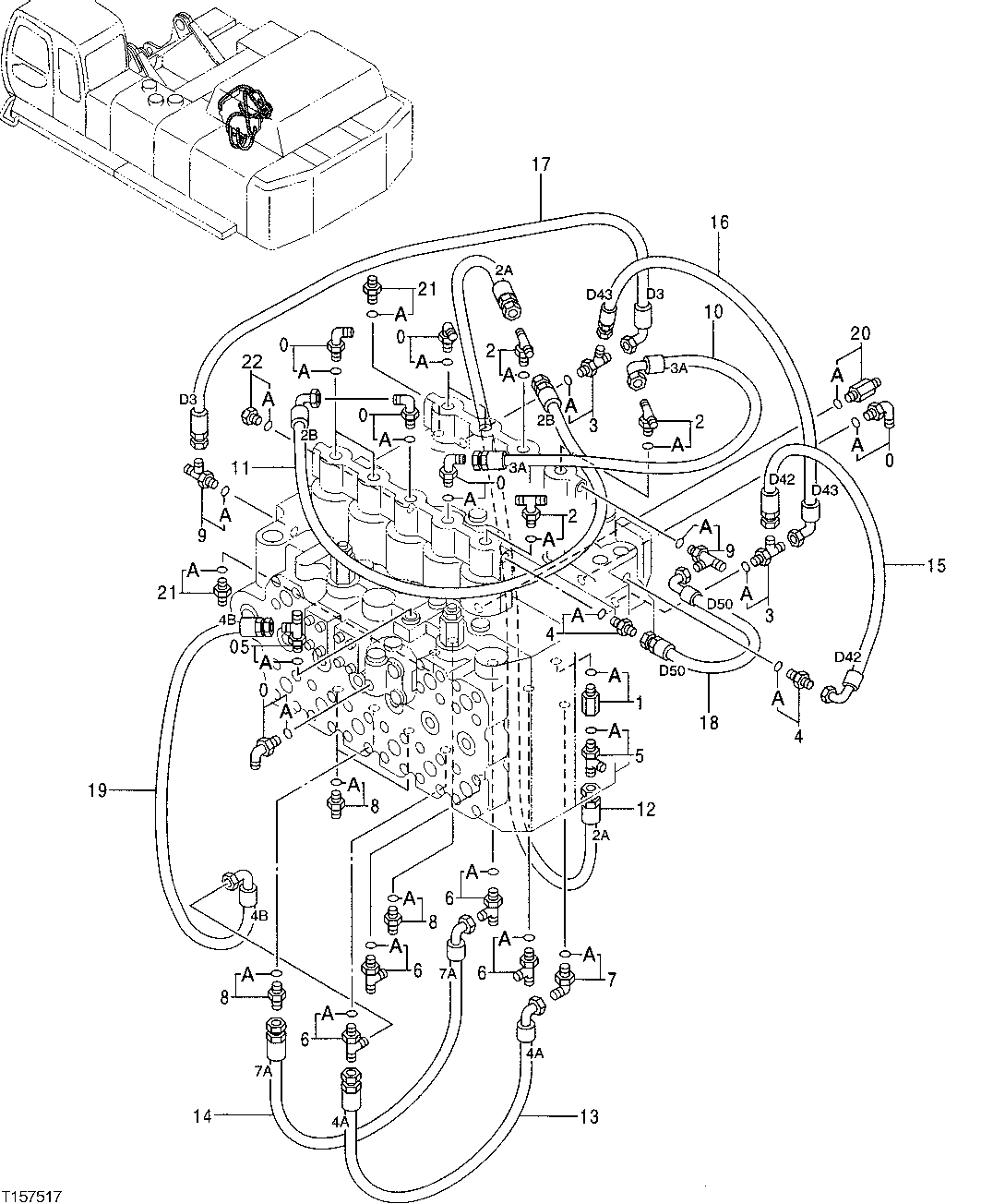

Запчасти John Deere 50 145 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

0

4154671

Elbow Fitting

SUB FOR TH101047

8шт.

0A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

1

4202564

Adapter Fitting

SUB FOR AT215879

1шт.

1A

M800650

Packing

1шт.

2

4208911

Tee Fitting

SUB FOR AT126456

3шт.

2A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

3

4203171

Tee Fitting

SUB FOR TH110578

2шт.

3A

M800650

Packing

1шт.

4

4200465

Adapter Fitting

SUB FOR TH108328

3шт.

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

4A

M800650

Packing

3шт.

M800650

Packing

2шт.

5

4207300

Tee Fitting

SUB FOR AT126381

2шт.

5A

M800650

Packing

1шт.

6

4205363

Tee Fitting

SUB FOR AT126362

4шт.

6A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

7

A852333

Elbow Fitting

SUB FOR TH101047; SUB FOR 4154671

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

4200466

Adapter Fitting

SUB FOR TH108320

4шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

9

4219346

Tee Fitting

SUB FOR AT132516

2шт.

9A

M800650

Packing

1шт.

10

4367006

Hose

SUB FOR TH4367006

1шт.

11

4375877

Hose

SUB FOR TH4375877

1шт.

12

4375855

Hose

SUB FOR TH4375855

1шт.

13

4375875

Hose

SUB FOR TH4375875

1шт.

14

4375876

Hose

SUB FOR TH4375876

1шт.

15

4375869

Hose

SUB FOR TH4375869

1шт.

16

4375873

Hose

SUB FOR TH4375873

1шт.

17

4375874

Hose

SUB FOR TH4375874

1шт.

18

4364565

Hose

SUB FOR TH4364565

1шт.

19

4366788

Hydraulic Hose

SUB FOR 4375883

1шт.

20

4223934

Adapter Fitting

SUB FOR AT134092

1шт.

20A

M800650

Packing

1шт.

21

4200467

Adapter Fitting

SUB FOR TH108417

2шт.

21A

M800650

Packing

1шт.

22

4093624

Drain Plug

SUB FOR AT318013

1шт.

22A

M800650

Packing

SUB FOR 957366

1шт.
