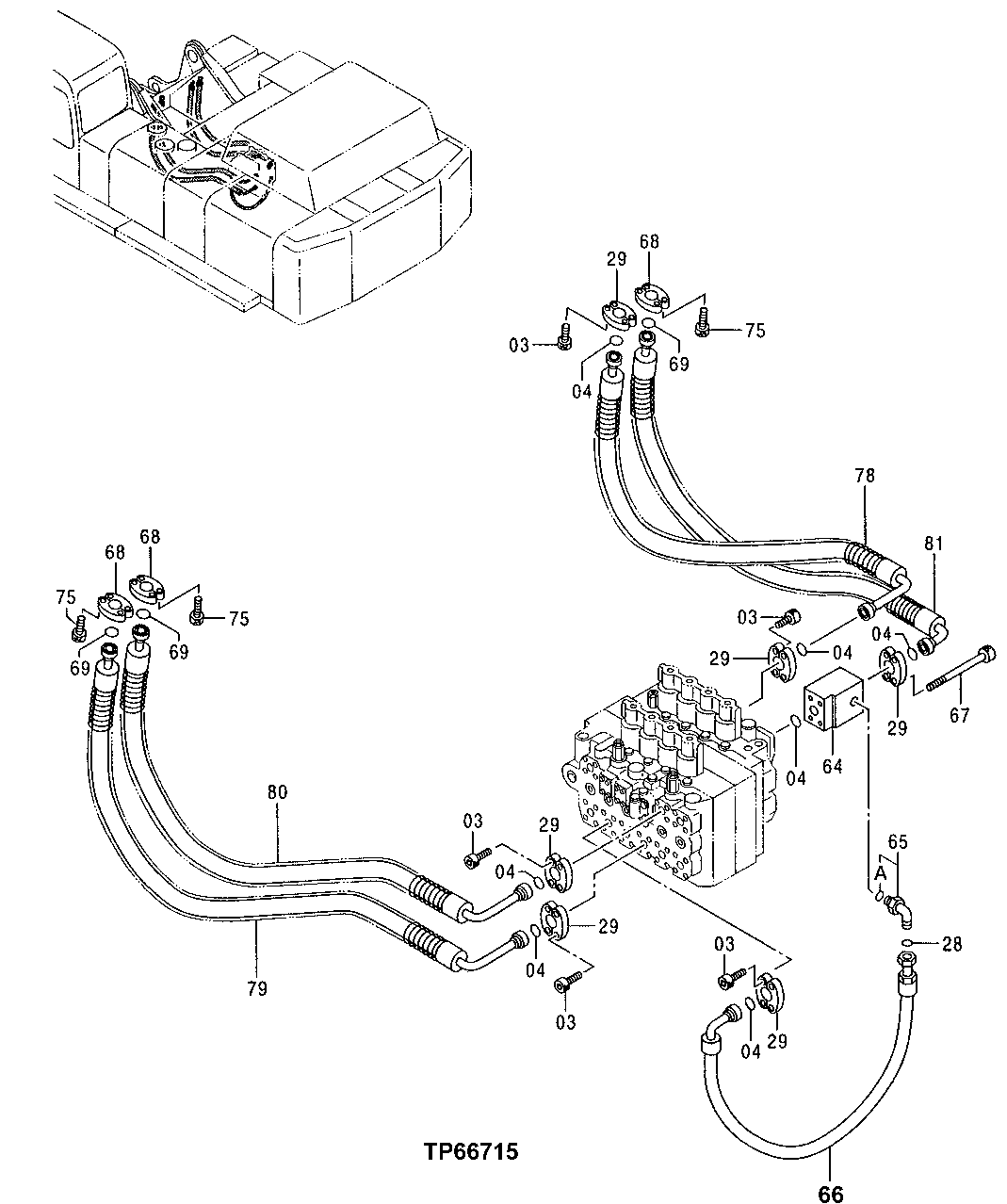

Запчасти John Deere 50 143 - MAIN PIPING 3360 HYDRAULIC SYSTEM

3

19M8734

Screw

M14 X 45

20шт.

4

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

7шт.

28

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

1шт.

29

AT131685

Flange Fitting

12шт.

64

4308818

Junction Block

(SUB FOR TH4308818)

1шт.

65

A853388

Elbow Fitting

(SUB FOR TH108325 OR 4198799)

1шт.

65A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

66

4372518

Hydraulic Hose

(SUB FOR TH4372518)

1шт.

67

Bolt

4шт.

68

4075854

Flange Fitting

(SUB FOR TH4075854)

6шт.

69

T34248

O-Ring

47.219 X 3.531 mm (1-55/64" X 0.139")

3шт.

75

19M8208

Screw

M16 X 50

12шт.

78

4382309

Hydraulic Hose

(SUB FOR TH4382309)

1шт.

79

4382310

Hydraulic Hose

(SUB FOR TH4382310)

1шт.

80

4382311

Hydraulic Hose

(SUB FOR TH4382311)

1шт.

81

4382312

Hydraulic Hose

(SUB FOR TH4382312)

1шт.
