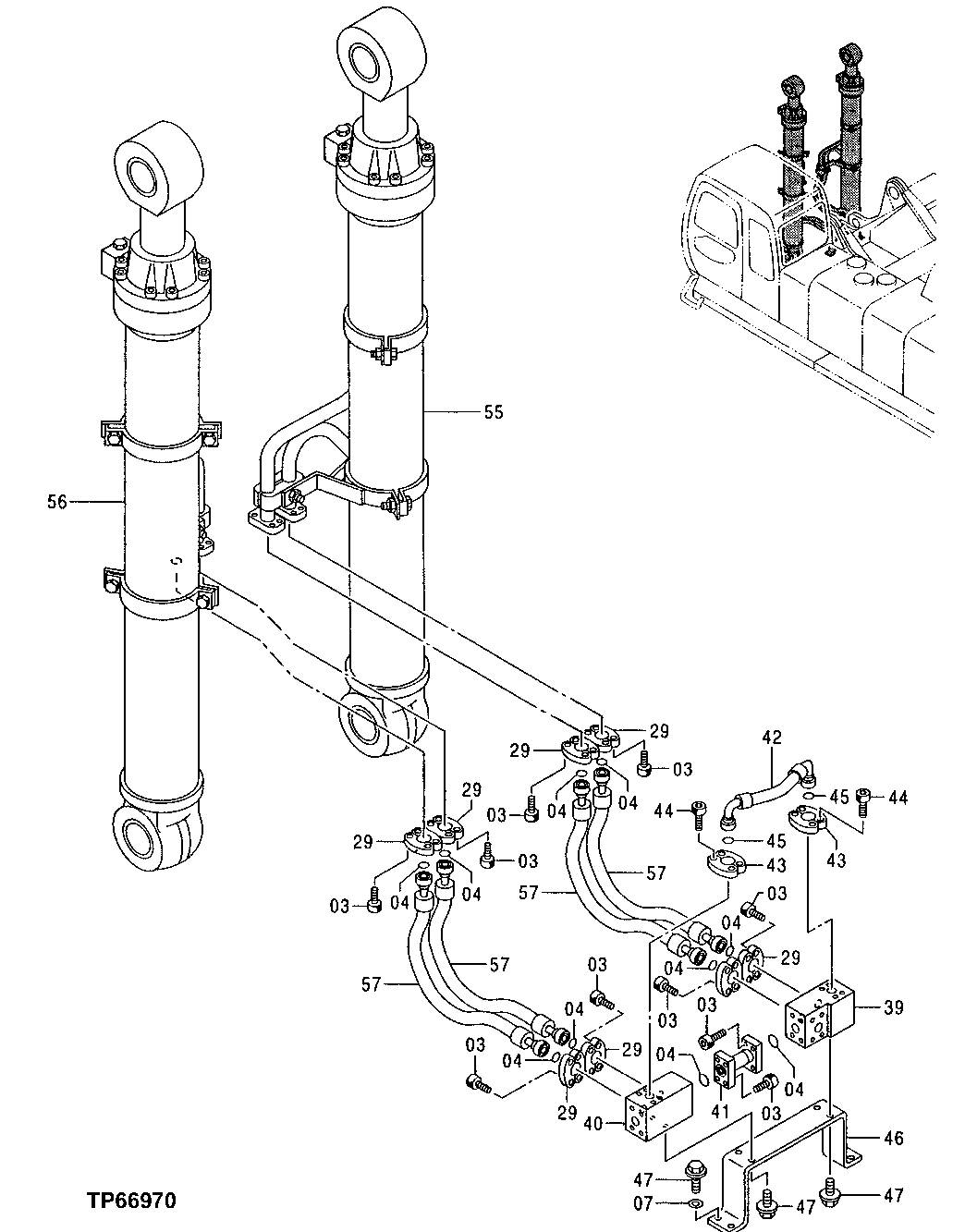

Запчасти John Deere 50 142 - MAIN PIPING 3360 HYDRAULIC SYSTEM

3

19M8734

Screw

M14 X 45

40шт.

4

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

10шт.

7

4249324

Washer

(SUB FOR TH4249324)

4шт.

29

AT131685

Flange Fitting

16шт.

39

2039701

Junction Block

(SUB FOR TH2039701)

1шт.

40

2039702

Junction Block

(SUB FOR TH2039702)

1шт.

41

8046016

Line

(SUB FOR TH8046016)

1шт.

42

4372519

Hydraulic Hose

(SUB FOR TH4372519)

1шт.

43

4085560

Flange Fitting

(SUB FOR TH101960)

4шт.

44

19M8395

Screw

M12 X 40

8шт.

45

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

2шт.

46

4372570

Bracket

(SUB FOR TH4372570)

1шт.

47

19M7403

Cap Screw

M12 X 35

8шт.

12H301

Lock Washer

1/2"

8шт.

55

4331075

Hydraulic Cylinder

(RIGHT BOOM CYLINDER) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

56

4331076

Cylinder

(LEFT BOOM CYLINDER) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

57

4332810

Hydraulic Hose

(SUB FOR TH4332810)

4шт.
