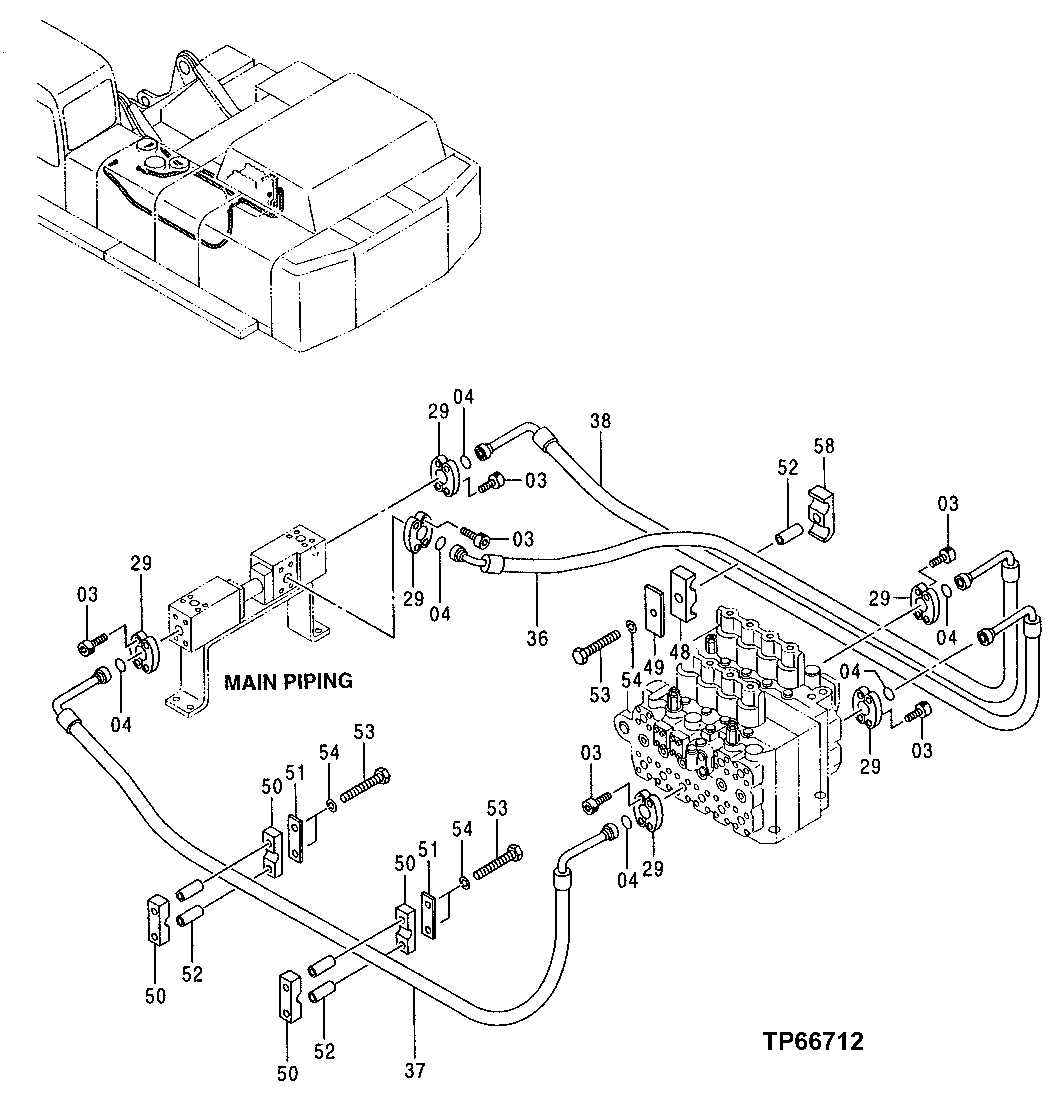

Запчасти John Deere 50 141 - MAIN PIPING 3360 HYDRAULIC SYSTEM

3

19M8734

Screw

M14 X 45

24шт.

4

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

6шт.

29

AT131685

Flange Fitting

12шт.

36

4372527

Hydraulic Hose

SUB FOR TH4372527

1шт.

37

4372526

Hydraulic Hose

SUB FOR TH4372526

1шт.

38

4372525

Hydraulic Hose

SUB FOR TH4372525

1шт.

48

4215878

Hose Clamp

SUB FOR AT178139

1шт.

49

4215880

Plate

SUB FOR AT178142

1шт.

50

4207036

Clamp

SUB FOR AT131809

4шт.

51

4207038

Strap

SUB FOR AT131811

2шт.

52

4215879

Spacer

SUB FOR 4207037 OR AT131810

5шт.

53

19M8061

Cap Screw

M12 X 140

5шт.

54

12H301

Lock Washer

1/2"

5шт.

58

4385736

Hose Clamp

SUB FOR TH4385736

1шт.
