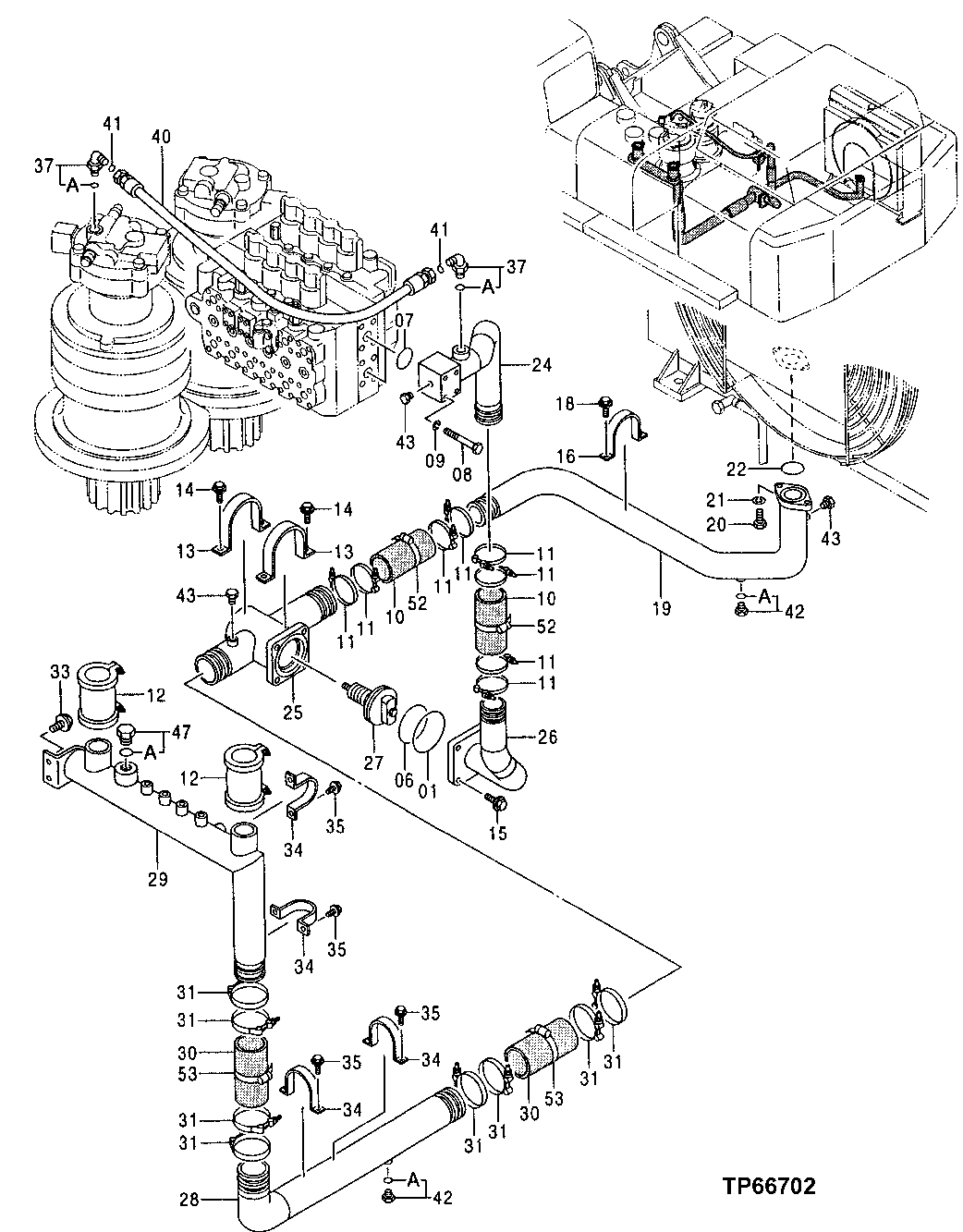

Запчасти John Deere 50 137 - RETURN PIPING 3360 HYDRAULIC SYSTEM

1

TH104589

O-Ring

144.400 X 3.100 mm (5.685" X 0.122")

1шт.

6

AT264342

O-Ring

SUB FOR TH100125

1шт.

7

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

1шт.

8

19M7914

Cap Screw

M12 X 120 SUB FOR J901204

4шт.

9

12H301

Lock Washer

1/2"

4шт.

10

4167091

Hose

SUB FOR TH101901

2шт.

11

AT50923

Hose Clamp

8шт.

12

4071215

Coupling

SUB FOR FXV00000007 AND TH101898

2шт.

12A

Seal

4196267 NLA

2шт.

13

4246954

Clamp

SUB FOR AT202105

2шт.

14

19M8011

Cap Screw

M12 X 30

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

15

19M7493

Cap Screw

M12 X 40

4шт.

12H301

Lock Washer

1/2"

4шт.

16

4000909

Clamp

SUB FOR TH101935

1шт.

18

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

19

7029099

Tube

SUB FOR TH7029099

1шт.

20

T114269

Cap Screw

SUB FOR AT215658 AND J901445

2шт.

21

12H317

Lock Washer

9/16"

2шт.

22

CH11572

Packing

1шт.

24

7029096

Tube

SUB FOR TH7029096

1шт.

25

7029098

Tube

SUB FOR TH7029098

1шт.

26

7029100

Tube

SUB FOR TH7029100

1шт.

27

4433091

Flow Control Hyd. Valve

SUB FOR AT202100

1шт.

28

8060056

Tube

SUB FOR TH8060056

1шт.

29

7033562

Tube

SUB FOR TH7033562

1шт.

30

4348414

Hose

SUB FOR AT176844

2шт.

31

AT56658

Hose Clamp

8шт.

33

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

34

4000910

Clamp

SUB FOR TH4000910

4шт.

35

19M7402

Cap Screw

M10 X 25

8шт.

12M7066

Lock Washer

10 mm

8шт.

37

A853388

Elbow Fitting

SUB FOR TH108325 OR 4198799

2шт.

37A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

40

4332392

Hydraulic Hose

SUB FOR TH4332392

1шт.

41

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

42

4093624

Drain Plug

SUB FOR AT318013; SUB FOR TH102536

2шт.

42A

M800650

Packing

1шт.

43

446536

Plug

SUB FOR TH446536

3шт.

47

4154693

Fitting Plug

SUB FOR AT132493

1шт.

47A

970860

O-Ring

37.700 X 3.500 mm (1-31/64" X 0.138") SUB FOR TH104634

1шт.

52

TY22488

Hose Clamp

SUB FOR AH104837

2шт.

53

Z29925

Clamp

SUB FOR AH103182

2шт.
