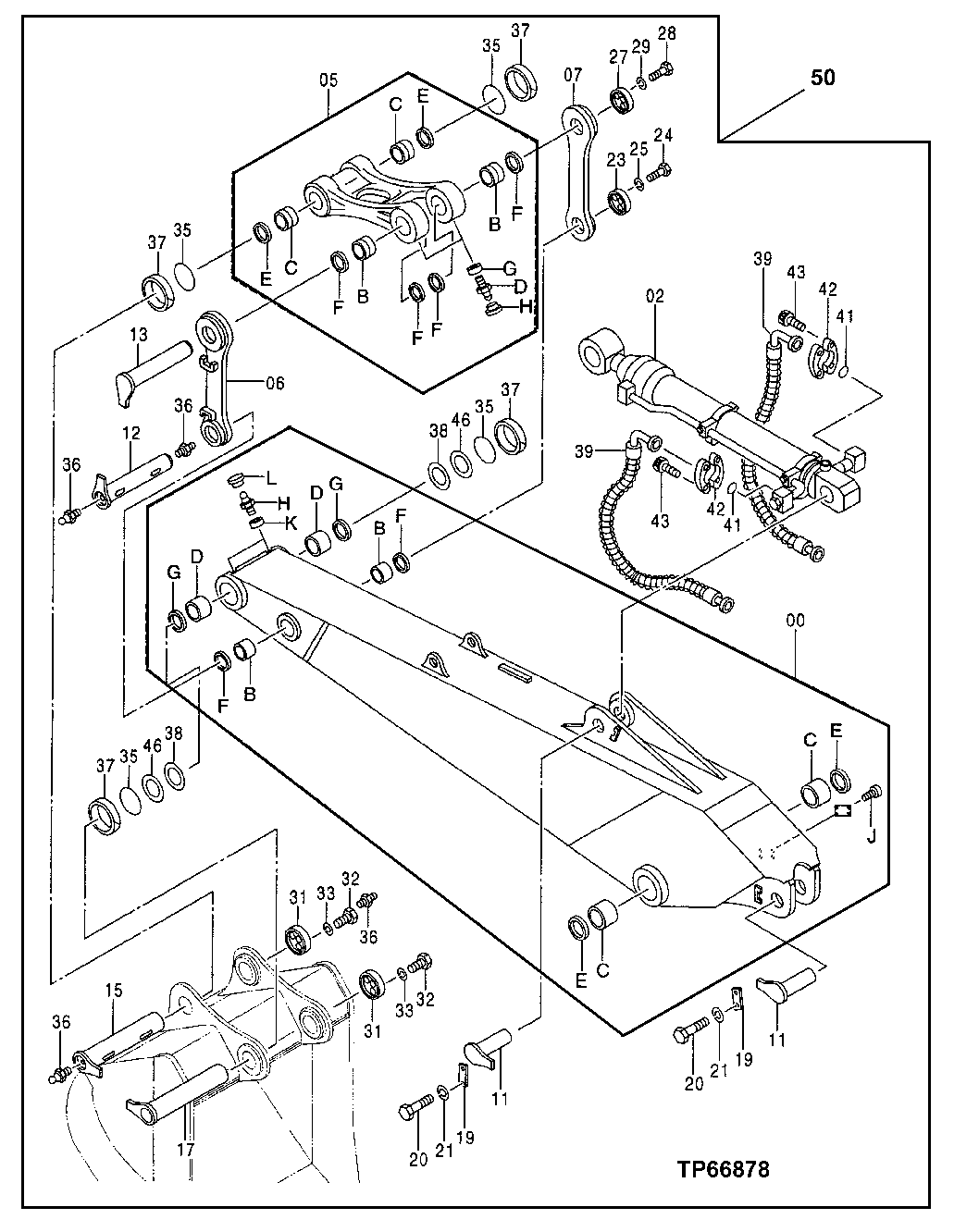

Запчасти John Deere 50 129 - SEMI-LONG ARM ASSEMBLY (4.4 M) 3340 BACKHOE AND EXCAVATOR FRAMES

0

9150449

Lift Arm

(SUB FOR TH9150449)

1шт.

0B

4129729

Bushing

(SUB FOR TH4129729)

2шт.

0C

4218719

Bushing

(SUB FOR TH4218719)

2шт.

0D

4332024

Bushing

(SUB FOR TH4332024)

2шт.

0E

4251766

Seal

(SUB FOR TH4251766)

2шт.

0F

4251212

Seal

(SUB FOR AT202303)

2шт.

0G

4143624

Seal

(SUB FOR TH4251207)

2шт.

0H

TH100074

Lubrication Fitting

2шт.

0J

37H99

Screw

0.100" X 1/4"

4шт.

0K

4130686

Bushing

(SUB FOR AT217082)

2шт.

0L

4105912

Cap

(SUB FOR AT217081)

2шт.

2

Hydraulic Cylinder

( TH4331078 NO LONGER AVAILABLE)

1шт.

4437039J

Hydraulic Cylinder

1шт.

5

9135251

Link

(SUB FOR TH9135251)

1шт.

5B

4234708

Bushing

(SUB FOR TH4234708)

2шт.

5C

4281149

Bushing

(SUB FOR TH4281149)

2шт.

5D

TH100074

Lubrication Fitting

2шт.

5E

4251767

Seal

(SUB FOR TH4251767)

2шт.

5F

4251753

Seal

(SUB FOR TH4251753)

4шт.

5G

4130686

Bushing

(SUB FOR AT217082)

2шт.

5H

4105912

Cap

(SUB FOR AT217081)

2шт.

6

8065547

Link

(SUB FOR TH8065547)

1шт.

7

8065548

Link

(SUB FOR TH8065548)

1шт.

11

8067795

Pin Fastener

(SUB FOR TH8067795)

2шт.

12

8067798

Pin Fastener

(SUB FOR TH8067798)

1шт.

13

8085461

Pin Fastener

(SUB FOR TH8067801 AND 8067801)

1шт.

15

8067806

Pin Fastener

(SUB FOR TH8067806)

1шт.

17

8058964

Pin Fastener

(SUB FOR TH8058964)

1шт.

19

4122729

Strap

(SUB FOR AT131696)

2шт.

20

19M7950

Cap Screw

M20 X 45

4шт.

21

12M7070

Lock Washer

20 mm

4шт.

23

3015951

Stop

(SUB FOR TH3015951)

1шт.

24

J241645

Bolt

(SUB FOR THM111645 OR M111645)

3шт.

25

12H294

Lock Washer

5/8"

3шт.

27

4246611

Stop

(SUB FOR TH4246611)

1шт.

28

19M7950

Cap Screw

M20 X 45

3шт.

29

12M7070

Lock Washer

20 mm

3шт.

31

4251211

Stop

(SUB FOR TH4251211)

2шт.

32

19M7950

Cap Screw

M20 X 45

6шт.

33

12M7070

Lock Washer

20 mm

6шт.

35

4247424

O-Ring

(SUB FOR TH4247424)

4шт.

36

TH100074

Lubrication Fitting

4шт.

37

4252730

Ring

(SUB FOR TH4252730)

4шт.

38

4379158

Thrust Washer

(SUB FOR TH4379158)

2шт.

39

4366652

Hydraulic Hose

(SUB FOR TH4366652)

2шт.

41

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

2шт.

42

AT131685

Flange Fitting

4шт.

43

19M8734

Screw

M14 X 45

8шт.

46

4379157

Thrust Washer

(SUB FOR TH4379157)

2шт.

50

AT188513

Arm

WHOLEGOODS (INCLUDES ARM, BUCKET CYLINDER, H OSES, AND LINKAGE) (DOES NOT INCLUDE BUCKET)

1шт.
