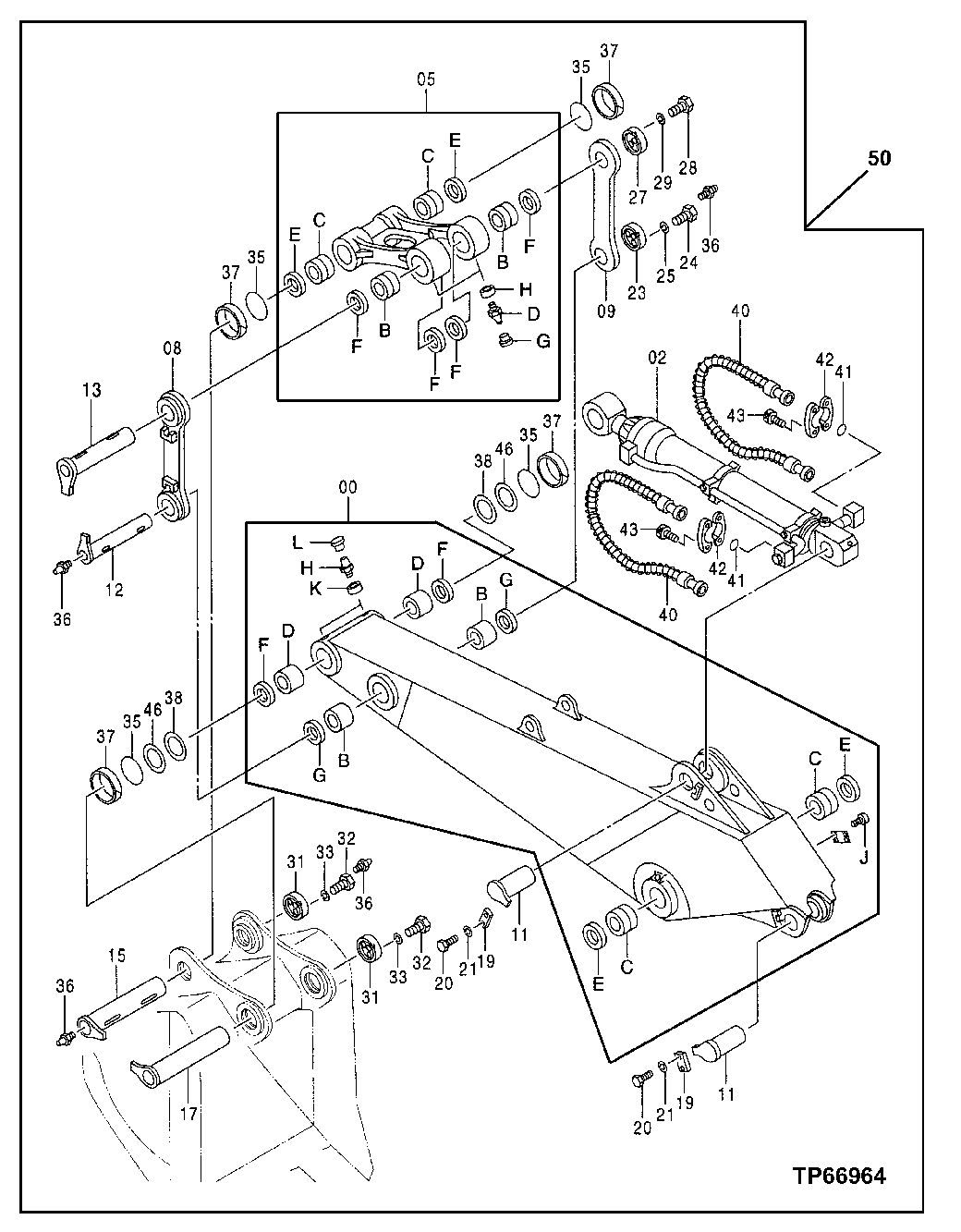

Запчасти John Deere 50 128 - STANDARD ARM ASSEMBLY (3.6M) 3340 BACKHOE AND EXCAVATOR FRAMES

0

9135250

Lift Arm

SUB FOR TH9135250

1шт.

0B

4129729

Bushing

SUB FOR TH4129729

2шт.

0C

4218719

Bushing

SUB FOR TH4218719

2шт.

0D

4332024

Bushing

SUB FOR TH4332024

2шт.

0E

4251766

Seal

SUB FOR TH4251766

2шт.

0F

4143624

Seal

SUB FOR TH4251207

2шт.

0G

4251212

Seal

SUB FOR AT202303

2шт.

0H

TH100074

Lubrication Fitting

2шт.

0J

37H99

Screw

0.100" X 1/4"

4шт.

0K

4130686

Bushing

SUB FOR AT217082

2шт.

0L

4105912

Cap

SUB FOR AT217081

2шт.

2

4604690J

Hydraulic Cylinder

SUB FOR TH4331078, 4331 078, 4437039J OR 4604690

1шт.

4437039J

Hydraulic Cylinder

1шт.

5

9135251

Link

SUB FOR TH9135251

1шт.

5B

4234708

Bushing

SUB FOR TH4234708

2шт.

5C

4281149

Bushing

SUB FOR TH4281149

2шт.

5D

TH100074

Lubrication Fitting

2шт.

5E

4251767

Seal

SUB FOR TH4251767

2шт.

5F

4251753

Seal

SUB FOR TH4251753

4шт.

5G

4130686

Bushing

SUB FOR AT217082

2шт.

5H

4105912

Cap

SUB FOR AT217081

2шт.

8

8065547

Link

SUB FOR TH8065547

1шт.

9

8065548

Link

SUB FOR TH8065548

1шт.

11

8067795

Pin Fastener

SUB FOR TH8067795

2шт.

12

8067798

Pin Fastener

SUB FOR TH8067798

1шт.

13

8085461

Pin Fastener

SUB FOR TH8067801 AND 8067801

1шт.

15

8067806

Pin Fastener

SUB FOR TH8067806

1шт.

17

8058964

Pin Fastener

SUB FOR TH8058964

1шт.

19

4122729

Strap

SUB FOR AT131696

2шт.

20

19M7950

Cap Screw

M20 X 45

4шт.

21

12M7070

Lock Washer

20 mm

4шт.

23

3015951

Stop

SUB FOR TH3015951

1шт.

24

J241645

Bolt

SUB FOR THM111645 OR M111645

3шт.

25

12H294

Lock Washer

5/8"

3шт.

27

4246611

Stop

SUB FOR TH4246611

1шт.

28

19M7950

Cap Screw

M20 X 45

3шт.

29

12M7070

Lock Washer

20 mm

3шт.

31

4251211

Stop

SUB FOR TH4251211

2шт.

32

19M7950

Cap Screw

M20 X 45

6шт.

33

12M7070

Lock Washer

20 mm

6шт.

35

4247424

O-Ring

SUB FOR TH4247424

4шт.

36

TH100074

Lubrication Fitting

4шт.

37

4252730

Ring

SUB FOR TH4252730

4шт.

38

4379158

Thrust Washer

SUB FOR TH4379158

2шт.

40

4373644

Hydraulic Hose

SUB FOR TH4373644

2шт.

41

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

2шт.

42

AT131685

Flange Fitting

4шт.

43

19M8734

Screw

M14 X 45

8шт.

46

4379157

Thrust Washer

SUB FOR TH4379157

2шт.

50

AT188508

Arm

WHOLEGOODS (INCLUDES ARM, BUCKET CYLINDER, H OSES, AND LINKAGE) (DOES NOT INCLUDE BUCKET)

1шт.
