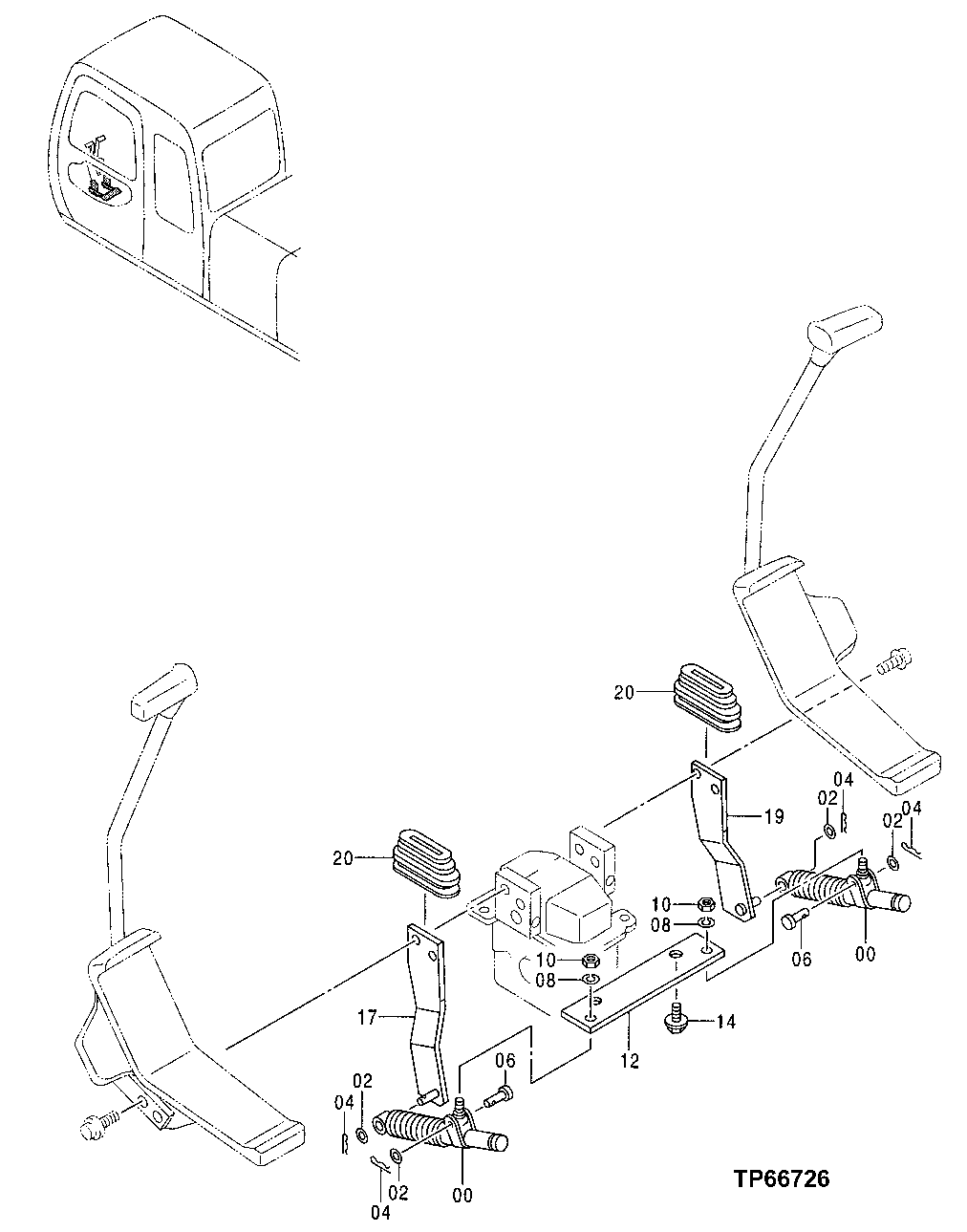

Запчасти John Deere 50 126 - PROPEL LEVER DAMPER 3315 Controls Linkage

0

4204959

Torsional Damper

SUB FOR TH108384

2шт.

2

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

4

H132922

Cotter Pin

4шт.

6

4044928

Pin

8 X 29 mm (0.315" X 1. 142") SUB FOR TH108385

2шт.

8

Washer

12M7065 NLA

2шт.

10

14M7273

Nut

M8

2шт.

12

4359716

Bracket

SUB FOR AT215938

1шт.

14

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

17

Bracket

AT307242 AND 9741921 NLA; LEFT

1шт.

19

Bracket

AT307241 AND 9741920 NLA; RIGHT

1шт.

20

3076503

Boot

SUB FOR AT215876

2шт.
