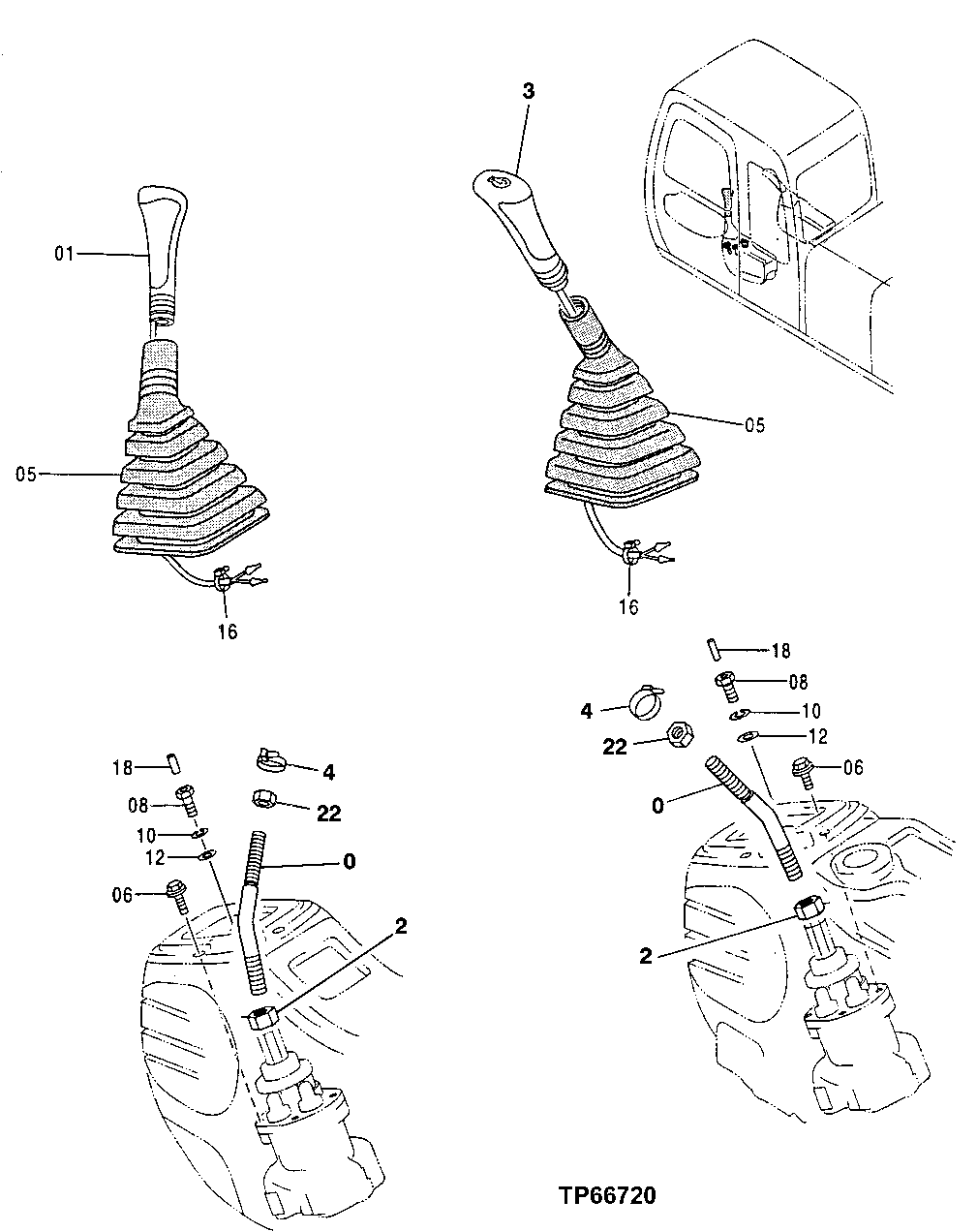

Запчасти John Deere 50 121 - Control Lever (Front, Swing) 3315 Controls Linkage

0

4334707

Lever

SUB FOR AT177386

2шт.

1

2038484

Grip

SUB FOR AT213743; INCLUDES HORN BUTTON

1шт.

2

14M7141

Nut

M14

2шт.

3

2039400

Grip

SUB FOR TH2039400; INC LUDES POWER LIFT SWITCH

1шт.

4

H77698

Tie Band

2шт.

5

2038578

Boot

SUB FOR AT213745

2шт.

6

19M7407

Cap Screw

M8 X 25

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

Washer

12M7065 NLA

6шт.

8

4342802

Screw

M8 X 25 SUB FOR AT177372

2шт.

10

Washer

12M7065 NLA

2шт.

12

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

16

H77698

Tie Band

2шт.

18

34M7086

Spring Pin

3 X 32 mm

2шт.

22

14M7357

Nut

M12

2шт.
