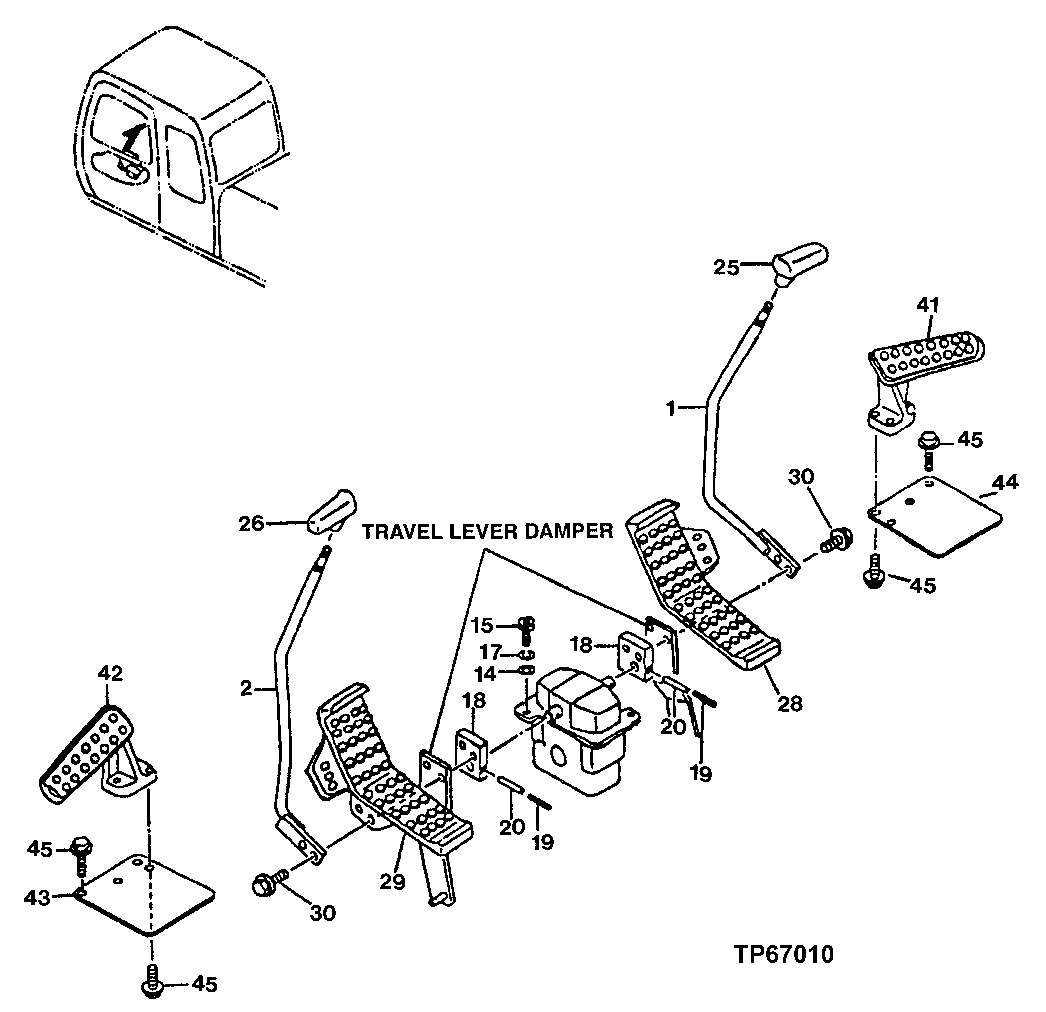

Запчасти John Deere 50 120 - TRAVEL CONTROL LEVER 3315 Controls Linkage

1

8075450

Lever

(SUB FOR AT174467, 8062667)

1шт.

2043585

Grip

(NOT ILLUSTRATED)

1шт.

4424185

Nut

(NOT ILLUSTRATED)

1шт.

2

8075449

Lever

(SUB FOR AT174468 OR 8062623)

1шт.

2043584

Grip

(NOT ILLUSTRATED)

1шт.

4424185

Nut

(NOT ILLUSTRATED)

1шт.

14

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

15

19M8337

Screw

M10 X 30

2шт.

17

12M7066

Lock Washer

10 mm

2шт.

18

T205603

Bracket

(SUB FOR AT174469 OR 3072628)

2шт.

19

34M7062

Spring Pin

5 X 32 mm

2шт.

20

34M7124

Spring Pin

8 X 30 mm (SUB FOR 34M7065)

2шт.

25

2038735

Grip

(SUB FOR AT213747)

1шт.

26

2038734

Grip

(SUB FOR AT213746)

1шт.

28

1024384

Pedal

(SUB FOR AT202292)

1шт.

29

1024224

Pedal

(SUB FOR AT202291)

1шт.

30

19M7935

Cap Screw

M10 X 55

4шт.

41

1015478

Footrest

(SUB FOR AT154056)

1шт.

42

1015477

Footrest

(SUB FOR AT154055)

1шт.

43

3052543

Cover

(SUB FOR AT154127)

1шт.

44

4338635

Cover

(SUB FOR AT202338)

1шт.

45

19M7550

Cap Screw

M10 X 35

8шт.

12M7066

Lock Washer

10 mm

8шт.
