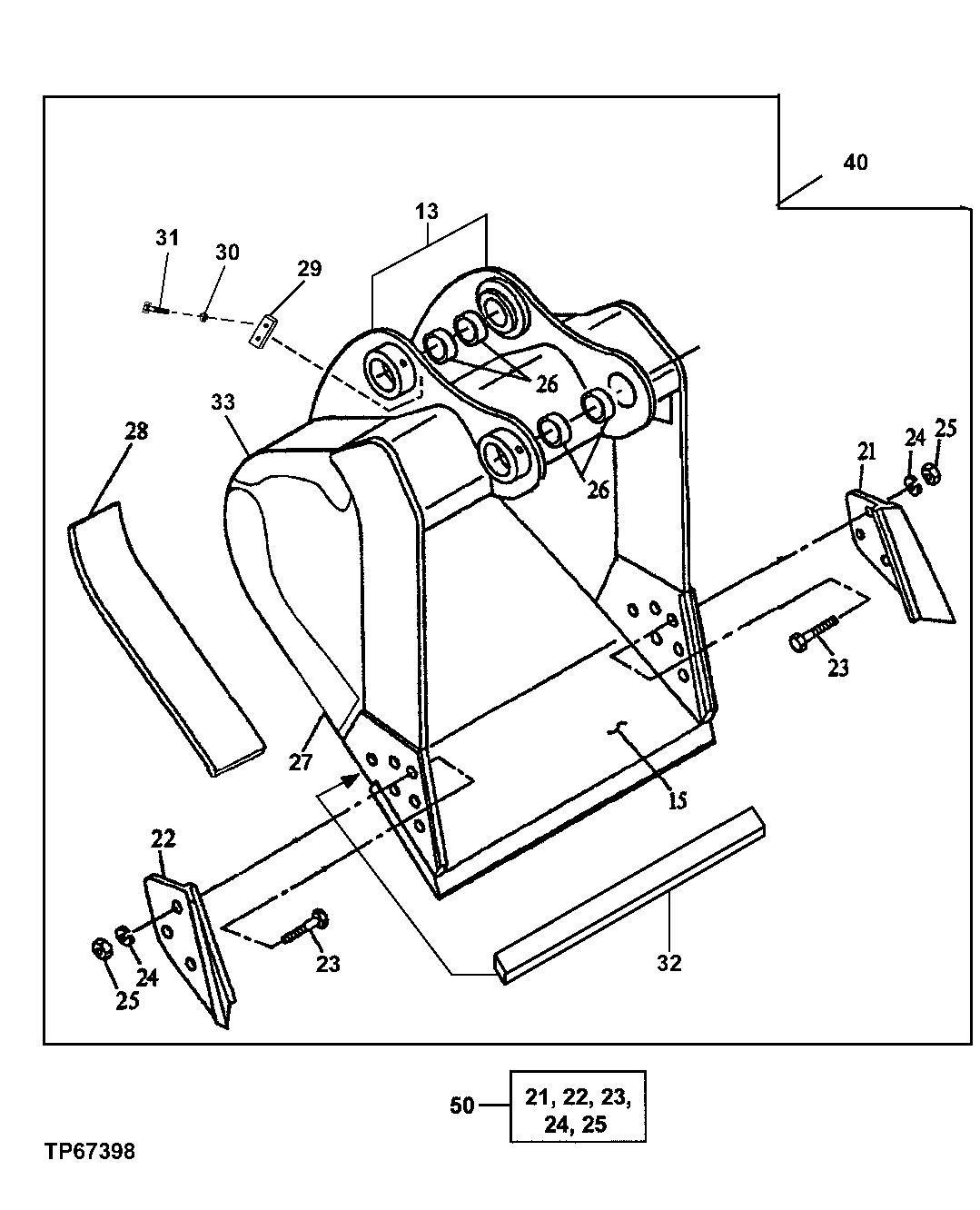

Запчасти John Deere 50 115 - EXTREME DUTY BUCKET 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

13

10079

Pivot

(F) (36 INCH - 2.75 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10080

Pivot

(F) (42 INCH - 3.35 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10081

Pivot

(F) (48 INCH - 3.95 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10082

Pivot

(F) (54 INCH - 4.58 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10083

Pivot

(F) (60 INCH - 5.21 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10085

Pivot

(F) (72 INCH - 6.50 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10086

Pivot

(F) (80 INCH - 7.37 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

15

C330196

Cutting Edge

(F) (36 INCH - 2.75 CUBIC YARD BUCKET)

1шт.

C330197

Cutting Edge

(F) (42 INCH - 3.35 CUBIC YARD BUCKET)

1шт.

C330198

Cutting Edge

(F) (48 INCH - 3.95 CUBIC YARD BUCKET)

1шт.

C330199

Cutting Edge

(F) (54 INCH - 4.58 CUBIC YARD BUCKET)

1шт.

C330200

Cutting Edge

(F) (60 INCH - 5.21 CUBIC YARD BUCKET)

1шт.

C330202

Cutting Edge

(F) (72 INCH - 6.50 CUBIC YARD BUCKET)

1шт.

C330203

Cutting Edge

(F) (80 INCH - 7.37 CUBIC YARD BUCKET)

1шт.

21

Cutting Edge

(SUB AT189734)

1шт.

22

Cutting Edge

(SUB AT189734)

1шт.

23

Bolt

(SUB AT189734)

ARшт.

24

Lock Washer

(SUB AT189734)

ARшт.

25

Nut

(SUB AT189734)

ARшт.

26

C20355

Bushing

(F)

2шт.

C20354

Bushing

(F)

2шт.

27

C330437

Plate

(F)

2шт.

28

C624343

Bar

(F) (36 INCH - 2.75 CUBIC YARD BUCKET)

1шт.

C624344

Bar

(F) (42 INCH - 3.35 CUBIC YARD BUCKET)

1шт.

C624345

Bar

(F) (48 INCH - 3.95 CUBIC YARD BUCKET)

1шт.

C624346

Bar

(F) (54 INCH - 4.58 CUBIC YARD BUCKET)

1шт.

C624347

Bar

(F) (60 INCH - 5.21 CUBIC YARD BUCKET)

1шт.

C624349

Bar

(F) (72 INCH - 6.50 CUBIC YARD BUCKET)

1шт.

C624350

Bar

(F) (80 INCH - 7.37 CUBIC YARD BUCKET)

1шт.

29

AT189911

Retainer

1шт.
