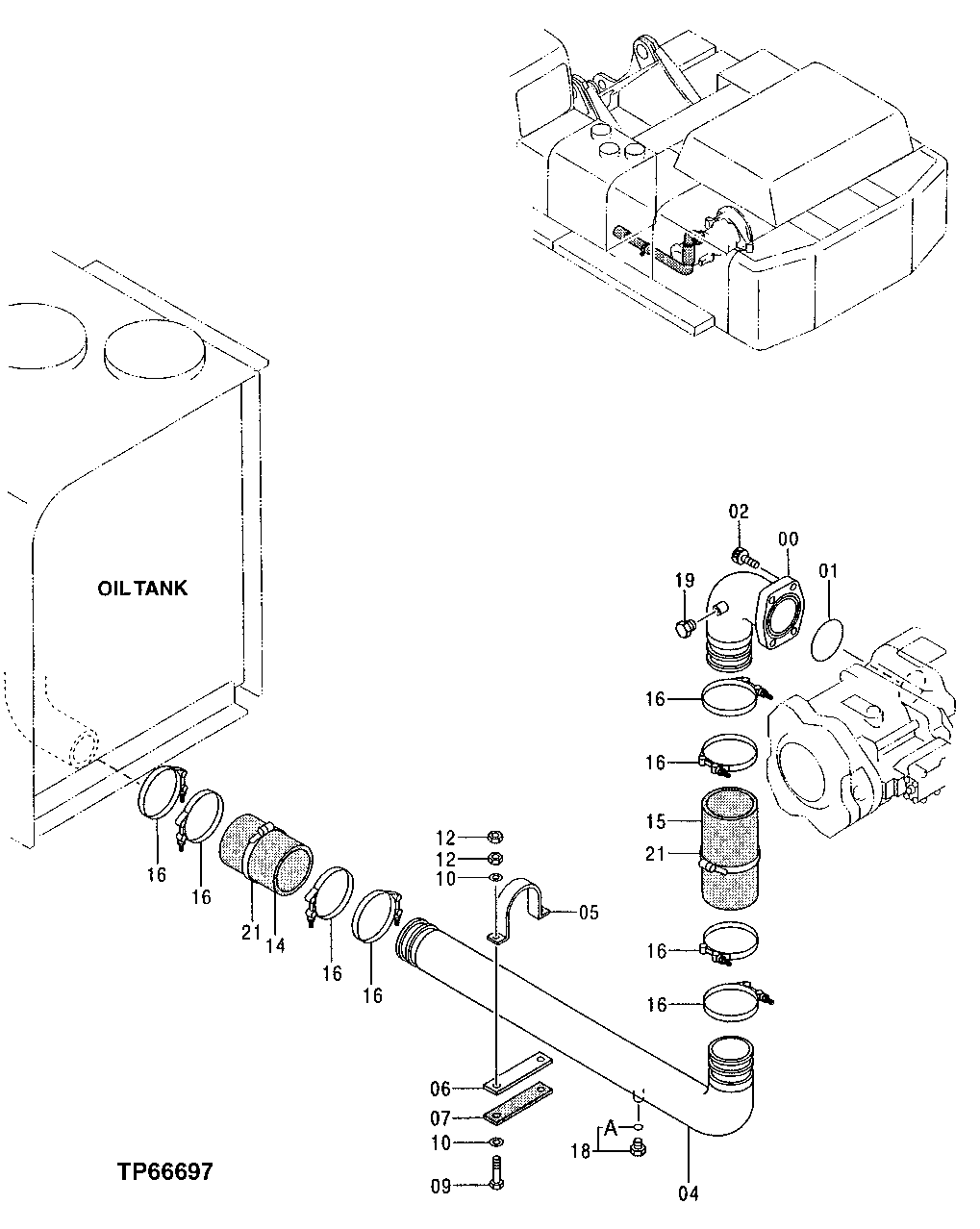

Запчасти John Deere 50 109 - SUCTION PIPINGS 2160 Vehicle Hydraulics

0

8075118

Pipe Elbow

SUB FOR TH8075118

1шт.

1

CH16109

Packing

1шт.

2

19M8208

Screw

M16 X 50

4шт.

4

8076922

Line

ALSO ORDER 3086591, 4352665, 4 282488, 4512716 SUB FOR 8060058

1шт.

5

4186854

Clamp

SUB FOR AT155248

1шт.

6

4359496

Strap

SUB FOR TH4359496

1шт.

7

4359497

Strap

SUB FOR TH4359497

1шт.

8

3086591

Line

NOT ILLUSTRATED

1шт.

9

19M7875

Cap Screw

M10 X 70

2шт.

10

24M7346

Washer

11 X 20 X 2 mm

4шт.

12

14M7274

Nut

M10

4шт.

14

4193871

Hose

SUB FOR TH111257

1шт.

15

4352665

Suction Hose

SUB FOR TH4352665

1шт.

16

AT112176

Hose Clamp

SUB FOR 4282488

8шт.

18

4093624

Drain Plug

SUB FOR AT318013; SUB FOR TH102536

1шт.

18A

M800650

Packing

1шт.

19

446536

Plug

SUB FOR TH446536

1шт.

21

TY22476

Clamp

2шт.
