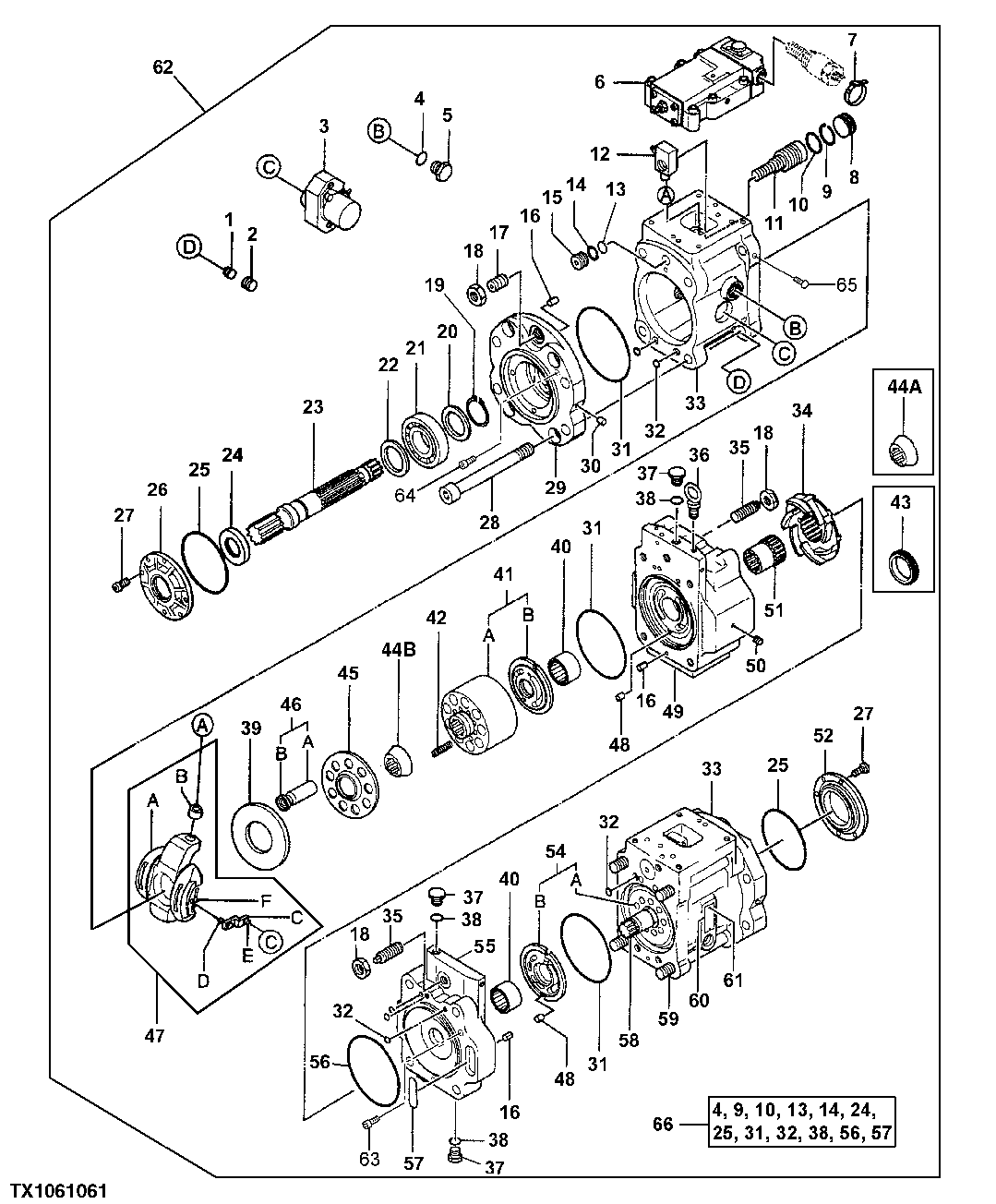

Запчасти John Deere 50 106 - Main Hydraulic Pump 2160 Vehicle Hydraulics

36

4083751

Eyebolt

SUB FOR TH0177612 OR 0177612

2шт.

37

0236014

Fitting Plug

SUB FOR TH102650

3шт.

38

O-Ring

3шт.

39

0682309

Plate

SUB FOR TH0682309

2шт.

40

0800701

Needle Bearing

SUB FOR TH0682303

2шт.

41

0703001

Cylinder

SUB FOR TH0703001

1шт.

41A

Cylinder

1шт.

41B

Plate

1шт.

42

0682307

Spring

SUB FOR TH0682307

18шт.

43

Spacer

SUB 0828401, SUB FOR TH0682308, 0682308 NLA

2шт.

44A

Spacer

SUB 0828401, SUB FOR TH0682306, 0682306 NLA

2шт.

44B

0828401

Bushing

2шт.

45

0718002

Retainer

SUB FOR TH0718002

2шт.

46

0718001

Piston

SUB FOR TH0718001

2шт.

46A

Piston

9шт.

46B

Valve Seat

9шт.

47

0719701

Swash Plate

SUB FOR TH0719701

2шт.

47A

Swash Plate

1шт.

47B

Bushing

1шт.

47C

Lever

1шт.

47D

0703004

Cap Screw

SUB FOR TH0703004

1шт.

47E

Pin

0195147 NLA SUB FOR TH104576

1шт.

47F

0703005

Dowel Pin

SUB FOR TH0703005

1шт.

48

0313404

Pin

SUB FOR AT201970

2шт.

49

0703014

Cover

SUB FOR TH0703014

1шт.

50

0451028

Fitting Plug

SUB FOR AT201622

2шт.

51

0703008

Coupling

SUB FOR TH0703008

1шт.

52

0703012

Cover

SUB FOR TH0703012

1шт.

54

0703002

Cylinder

SUB FOR TH0703002

1шт.

54A

Cylinder

1шт.

54B

Plate

1шт.

55

0800704

Cover

SUB FOR TH0703015

1шт.

56

0703019

O-Ring

SUB FOR TH0703019 OR 4S00746

1шт.

57

4196265

O-Ring

SUB FOR TH0703018

1шт.

58

0703007

Shaft

SUB FOR TH0703007

1шт.

59

0703016

Cap Screw

SUB FOR TH0703016

4шт.

60

Identification Plate

1шт.

61

Pin

2шт.

62

9169241EX

Hydraulic Pump

SUB FOR TH9169241

1шт.

63

M341075

Bolt

SUB FOR 0116621

1шт.

64

0800705

Bolt

1шт.

65

0800708

Screw

1шт.

66

4621011

Seal Kit

1шт.
