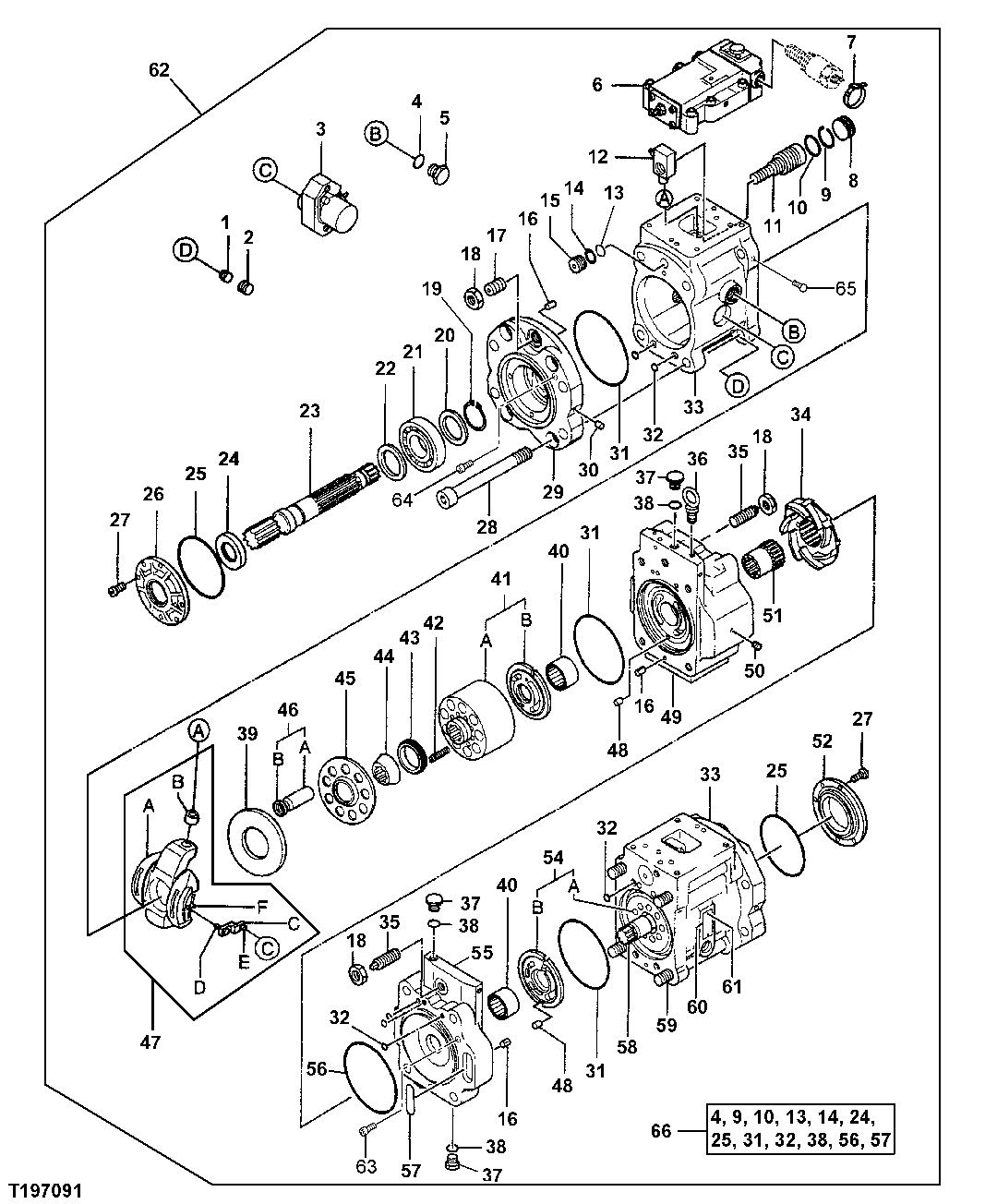

Запчасти John Deere 50 105 - Main Hydraulic Pump 2160 Vehicle Hydraulics

1

0451027

Screw

SUB FOR AT201621

4шт.

2

0451028

Fitting Plug

SUB FOR AT201622

5шт.

3

Sensor

Tilt-Probing, See Separate Page For Detail

2шт.

4

4297381

O-Ring

SUB FOR TH0443408 OR 4S00808

4шт.

5

0195165

Plug

SUB FOR TH102648

4шт.

6

4469011

Regulator

SUB FOR TH4391503

2шт.

7

4413218

Clamp

SUB FOR AT184548

2шт.

4413218

Clamp

SUB FOR AT184550

2шт.

8

0682319

Stop

SUB FOR TH0682319

2шт.

9

0682327

Ring

SUB FOR TH0682327 OR 4S00228

2шт.

10

4292386

O-Ring

SUB FOR TH4292386

2шт.

11

0800707

Piston

WHEN ORDERING FOR TH0682318, ALSO ORDER (2) 0800707 AND (2) 0800706, SUB FOR TH0682318

2шт.

12

0800706

Pin Fastener

WHEN ORDERING FOR 0703017 ALSO ORDER (2) 0800706 AND (2) 0800707, SUB FOR TH0703017

2шт.

13

0976602

O-Ring

SUB FOR TH0682324, 0682324 OR 4S00734

2шт.

14

0694503

Back-Up Ring

SUB FOR TH0682326 OR 4S00238

2шт.

15

0682320

Stop

SUB FOR TH0682320

2шт.

16

4144353

Spring Pin

SUB FOR TH4144353

5шт.

17

0339847

Set Screw

SUB FOR TH0339847

2шт.

18

4068898

Nut

SUB FOR AT201632 OR 0451038

4шт.

19

40M7066

Snap Ring

2шт.

20

0339809

Spacer

SUB FOR TH0339809

2шт.

21

0703009

Ball Bearing

SUB FOR TH0703009

2шт.

22

0339809

Spacer

SUB FOR TH0339809

2шт.

23

0703006

Shaft

SUB FOR TH0703006

1шт.

24

0682325

Seal

SUB FOR TH0682325

1шт.

25

0682321

O-Ring

SUB FOR 4S00121 OR 4S00892

2шт.

26

0682311

Cover

SUB FOR TH0682311

1шт.

27

19M8446

Screw

M8 X 20

8шт.

28

J782225

Bolt

SUB FOR TH0682316

4шт.

29

Support

0800702 NLA

2шт.

30

15H560

Pipe Plug

1/16"

31шт.

31

0682322

O-Ring

SUB FOR TH0682322, 4S00117 OR 4S00743

4шт.

32

M800650

Packing

19шт.

33

0828402

Housing

SUB FOR TH0703013

2шт.

34

0703010

Hydraulic Steering Booster

SUB FOR TH0703010

1шт.

35

0682328

Set Screw

SUB FOR TH0682328

2шт.

36

0738101

Washer

4шт.
