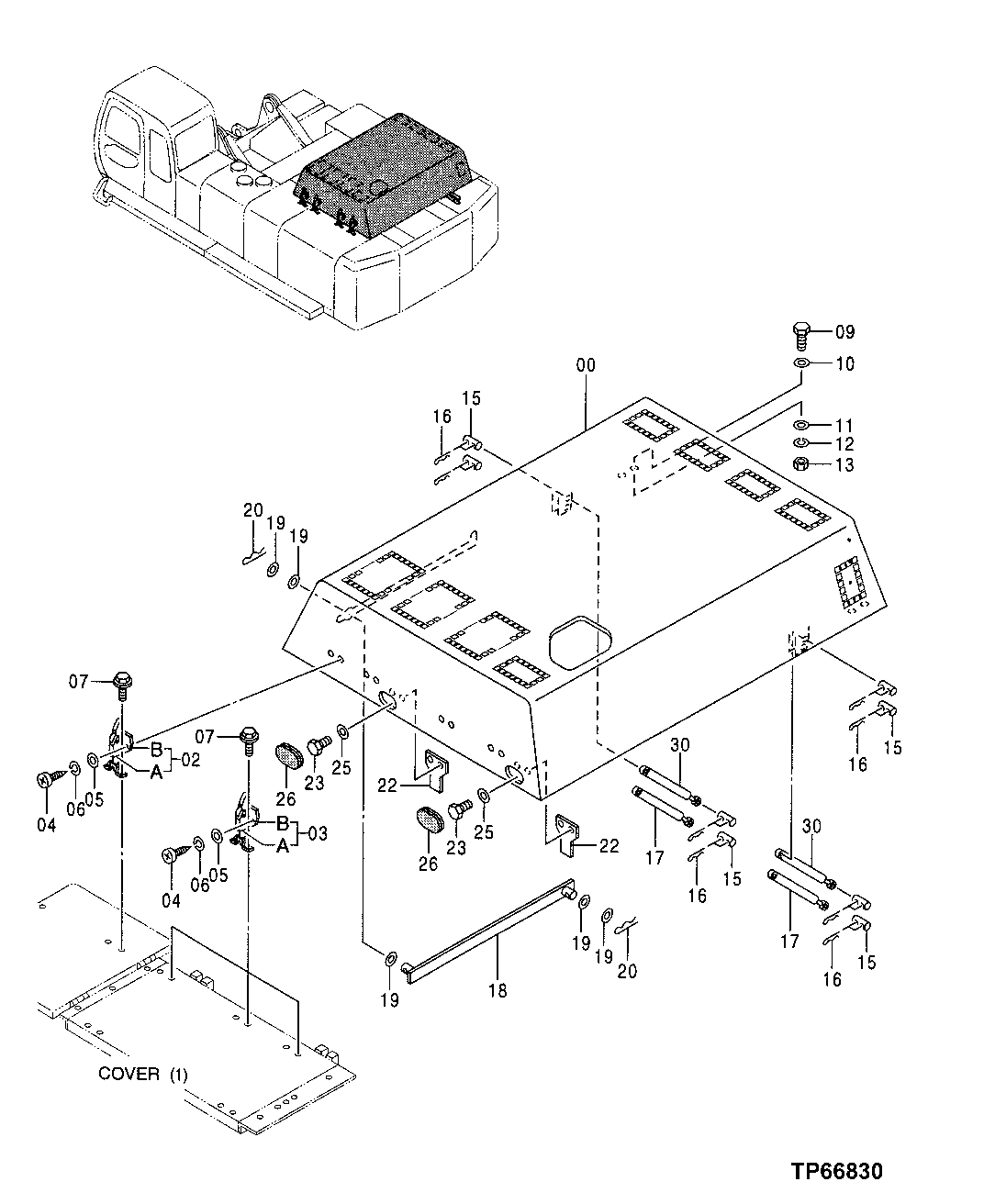

Запчасти John Deere 50 99 - Engine Cover 1910 Hood Or Engine Enclosure

0

6014993

Cover

SUB FOR TH6014993

1шт.

2

Catch

1шт.

2A

3074568

Catch

SUB FOR AT131654

1шт.

2B

3021131

Anchor

SUB FOR TH102247

1шт.

3

Catch

3шт.

3A

3074568

Catch

SUB FOR AT131654

1шт.

3B

3021131

Anchor

SUB FOR TH102247

1шт.

4

21M7397

Screw

M8 X 25

8шт.

5

24M7055

Washer

8.400 X 16 X 1.600 mm

8шт.

6

Washer

12M7065 NLA

8шт.

7

19M7932

Cap Screw

M8 X 16

8шт.

Washer

12M7065 NLA

8шт.

9

19M7403

Cap Screw

M12 X 35

4шт.

10

4249324

Washer

SUB FOR TH4249324

4шт.

11

4086891

Washer

13 X 26 X 3.200 mm (0.512" X 1. 024" X 0.126") SUB FOR TH104166

4шт.

12

12H301

Lock Washer

1/2"

4шт.

13

14M7275

Nut

M12

4шт.

15

4222401

Pin

SUB FOR TH4222401

8шт.

16

H132922

Cotter Pin

16шт.

17

4378375

Cylinder

SUB FOR TH4378375

2шт.

18

9752190

Absorber

SUB FOR TH9752190

1шт.

19

24M7053

Washer

17 X 30 X 3 mm

5шт.

20

M40461

Spring Locking Pin

2шт.

22

4378099

Stop

SUB FOR TH4378099

2шт.

23

19M7877

Cap Screw

M14 X 30

4шт.

25

4114404

Washer

15 X 36 X 4.500 mm (0.591" X 1. 417" X 0.177") SUB FOR AT130666

4шт.

26

4280565

Grommet

SUB FOR AT154353

2шт.

30

4378375

Cylinder

SUB FOR TH4378375

2шт.
