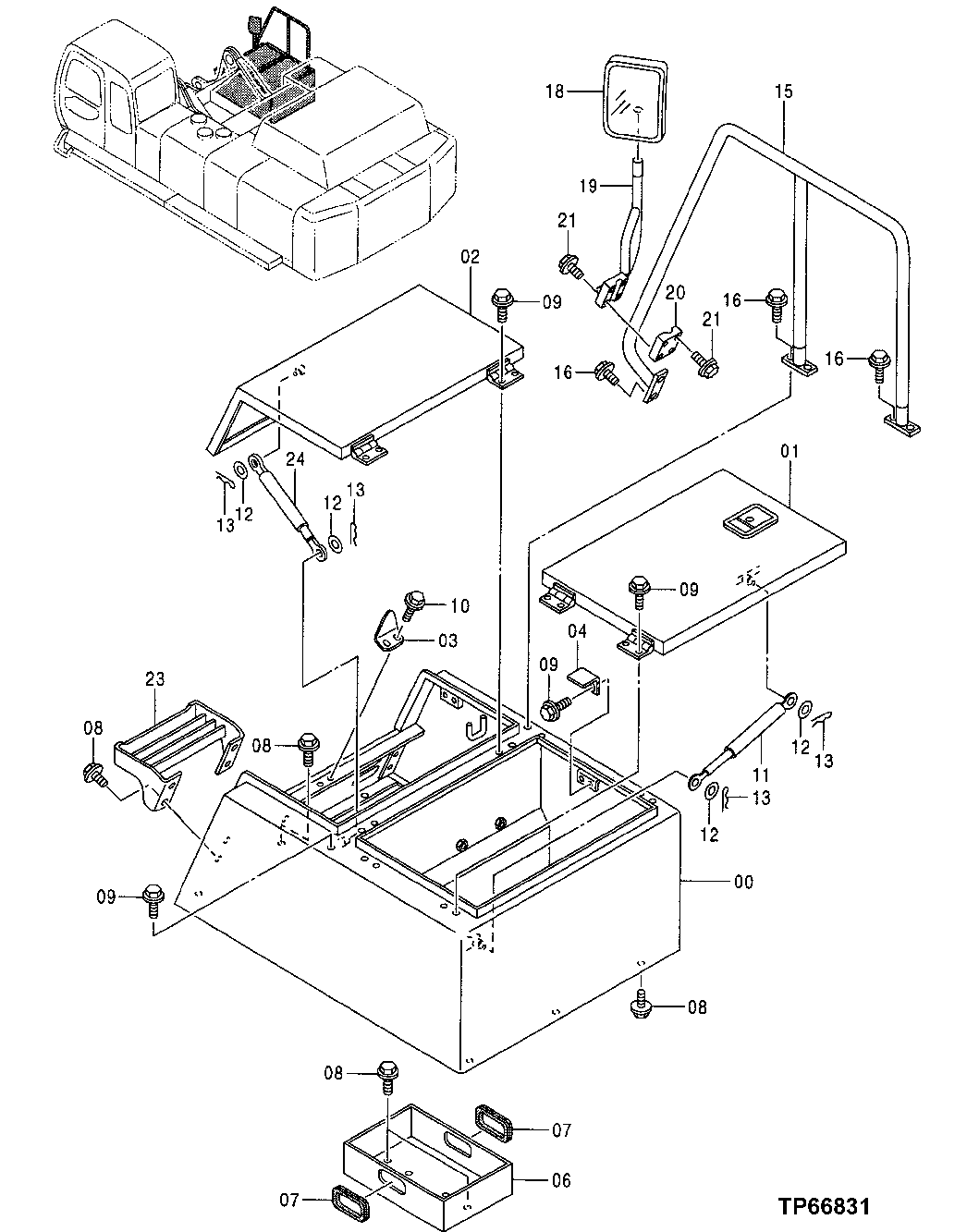

Запчасти John Deere 50 98 - TOOL BOX, BATTERY COVER AND RIGHT REARVIEW MIRROR 1910 Hood Or Engine Enclosure

0

5004545

Battery Box

SUB FOR TH5004545

1шт.

1

6014846

Cover

SUB FOR TH6014846

1шт.

2

6014849

Cover

SUB FOR TH6014849

1шт.

3

4346471

Bracket

SUB FOR TH4346471

1шт.

4

4346360

Bracket

SUB FOR TH4346360

1шт.

6

8062041

Toolbox

SUB FOR TH8062041

1шт.

7

4143780

Bushing

SUB FOR TH4143780

2шт.

8

19M7403

Cap Screw

M12 X 35

12шт.

12H301

Lock Washer

1/2"

12шт.

24M7047

Washer

13 X 24 X 2.500 mm

12шт.

9

19M7662

Cap Screw

M10 X 30

11шт.

12M7066

Lock Washer

10 mm

11шт.

24M7028

Washer

10.500 X 20 X 2 mm

11шт.

10

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

11

4188366

Absorber

SUB FOR TH109684

1шт.

12

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

13

H132922

Cotter Pin

4шт.

15

7033801

Handrail

SUB FOR TH7033801

1шт.

16

19M8011

Cap Screw

M12 X 30

6шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

6шт.

18

4418912

Rear View Mirror

RIGHT HAND; 4426821 NO LONGER AVAILABLE

1шт.

19

8067349

Arm

USE WITH 4426821 MIRROR SUB FOR TH8067349

1шт.

8093819

Arm

USE WITH 4418912 MIRROR

1шт.

20

4376895

Clamp

SUB FOR TH4376895

1шт.

21

19M8397

Cap Screw

M8 X 50

4шт.

Washer

12M7065 NLA

4шт.

23

8080195

Step

SUB FOR 8067501

1шт.

24

4386505

Cylinder

SUB FOR TH4386505

1шт.

25

19M8280

Screw

M5 X 45 USE WITH 4418912 MIRROR; NOT ILLUSTRATED

4шт.

26

4144018

Spring Pin

USE WITH 4418912 MIRROR; NOT ILLUSTRATED

1шт.
