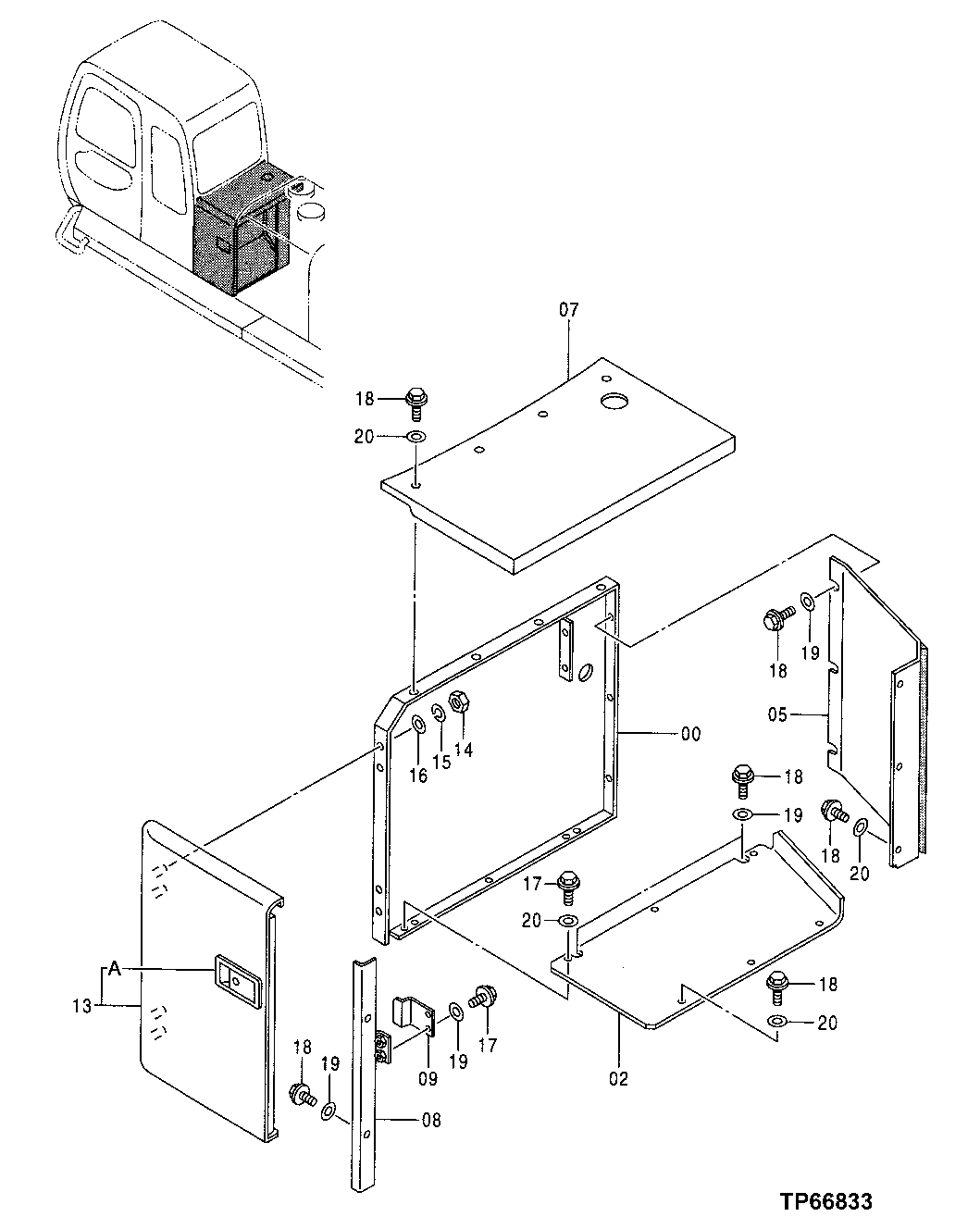

Запчасти John Deere 50 94 - Cover 1910 Hood Or Engine Enclosure

0

7030115

Shield

(SUB FOR TH7030115)

1шт.

2

3072577

Plate

(SUB FOR TH3072577)

1шт.

5

8068165

Shield

(SUB FOR TH8068165)

1шт.

7

8068157

Cover

(SUB FOR TH8068157)

1шт.

8

8062658

Support

(SUB FOR TH8062658)

1шт.

9

4351140

Stop

(SUB FOR TH4351140)

1шт.

13

7030116

Door

(SUB FOR TH7030116)

1шт.

13A

4361763

Lock

(SUB FOR AT214010)

1шт.

14

14M7275

Nut

M12

4шт.

16

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

17

19M7403

Cap Screw

M12 X 35

5шт.

12H301

Lock Washer

1/2"

5шт.

18

19M8011

Cap Screw

M12 X 30

20шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

20шт.

19

4086891

Washer

13 X 26 X 3.200 mm (0.512" X 1.0 24" X 0.126") (SUB FOR TH104166)

6шт.

20

4249324

Washer

(SUB FOR TH4249324)

19шт.
