Запчасти John Deere 50 93 - Covers 1910 Hood Or Engine Enclosure

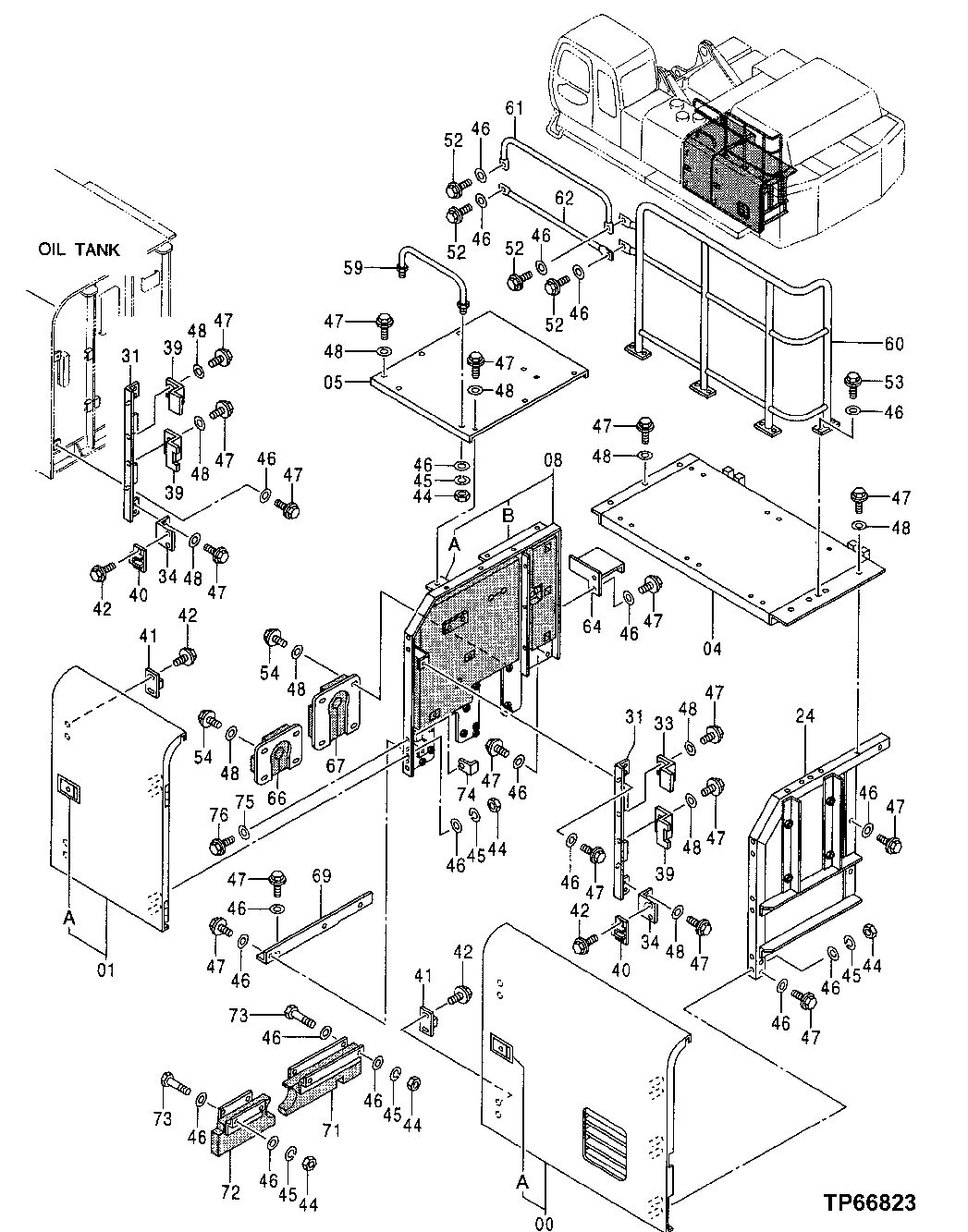

Схема запчастей John Deere 50 - 93 - Covers 1910 Hood Or Engine Enclosure
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

5004880

Door

(SUB FOR TH5004880)

1шт.

0A

4361763

Lock

(SUB FOR TH4353813)

1шт.

1

6015061

Door

(SUB FOR TH6015061)

1шт.

1A

4361763

Lock

(SUB FOR TH4353813)

1шт.

4

6017131

Cover

(SUB FOR TH6017131)

1шт.

5

7034967

Cover

(SUB FOR TH7034967)

1шт.

8

6017576

Panel

(SUB FOR TH6017576)

1шт.

8A

9750728

Bracket

(SUB FOR TH9750728)

1шт.

8B

9750729

Bracket

(SUB FOR TH9750729)

1шт.

24

7030100

Support

(SUB FOR TH7030100)

1шт.

31

8063058

Support

(SUB FOR TH8063058)

1шт.

33

4351140

Stop

(SUB FOR TH4351140)

1шт.

34

4353488

Bracket

(SUB FOR TH4353488)

1шт.

39

4378353

Stop

(SUB FOR TH4378353)

4шт.

40

4175253

Bracket

(SUB FOR AT318015, AT154915)

4шт.

41

4175254

Stop

(SUB FOR AT154916)

4шт.

42

19M7923

Cap Screw

M6 X 12 (SUB FOR 19M6614)

16шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

16шт.

12M7006

Lock Washer

6 mm

16шт.

44

14M7275

Nut

M12

16шт.

45

12H301

Lock Washer

1/2"

16шт.

46

4086891

Washer

13 X 26 X 3.200 mm (0. 512" X 1.024" X 0.126")

51шт.

47

19M8011

Cap Screw

M12 X 30

53шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

53шт.

48

4249324

Washer

(SUB FOR TH4249324)

40шт.

52

19M7361

Cap Screw

M12 X 50

4шт.

12H301

Lock Washer

1/2"

4шт.

53

19M7493

Cap Screw

M12 X 40

8шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

8шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

8шт.

54

19M7403

Cap Screw

M12 X 35

8шт.

12H301

Lock Washer

1/2"

8шт.

59

8064258

Handrail

(SUB FOR TH8064258)

1шт.

60

7038221

Handrail

(SUB FOR 7030823)

1шт.

61

8064260

Handrail

(SUB FOR TH8064260)

1шт.

62

8064259

Rail

(SUB FOR TH8064259)

1шт.

64

8067442

Step

(SUB FOR TH8067442)

1шт.

66

9747838

Cover

(SUB FOR TH9747838)

1шт.

67

9747837

Cover

(SUB FOR TH9747837)

1шт.

69

4374063

Support

(SUB FOR TH4374063)

1шт.

71

8068133

Cover

(SUB FOR TH8068133)

1шт.

72

8068135

Cover

(SUB FOR TH8068135)

1шт.

73

J901200

Bolt

(SUB FOR THJ901200)

4шт.

74

9749032

Bracket

(SUB FOR TH9749032)

1шт.

75

4086891

Washer

13 X 26 X 3.200 mm (0.512" X 1.0 24" X 0.126") (SUB FOR TH104166)

1шт.

76

19M8011

Cap Screw

M12 X 30

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.
