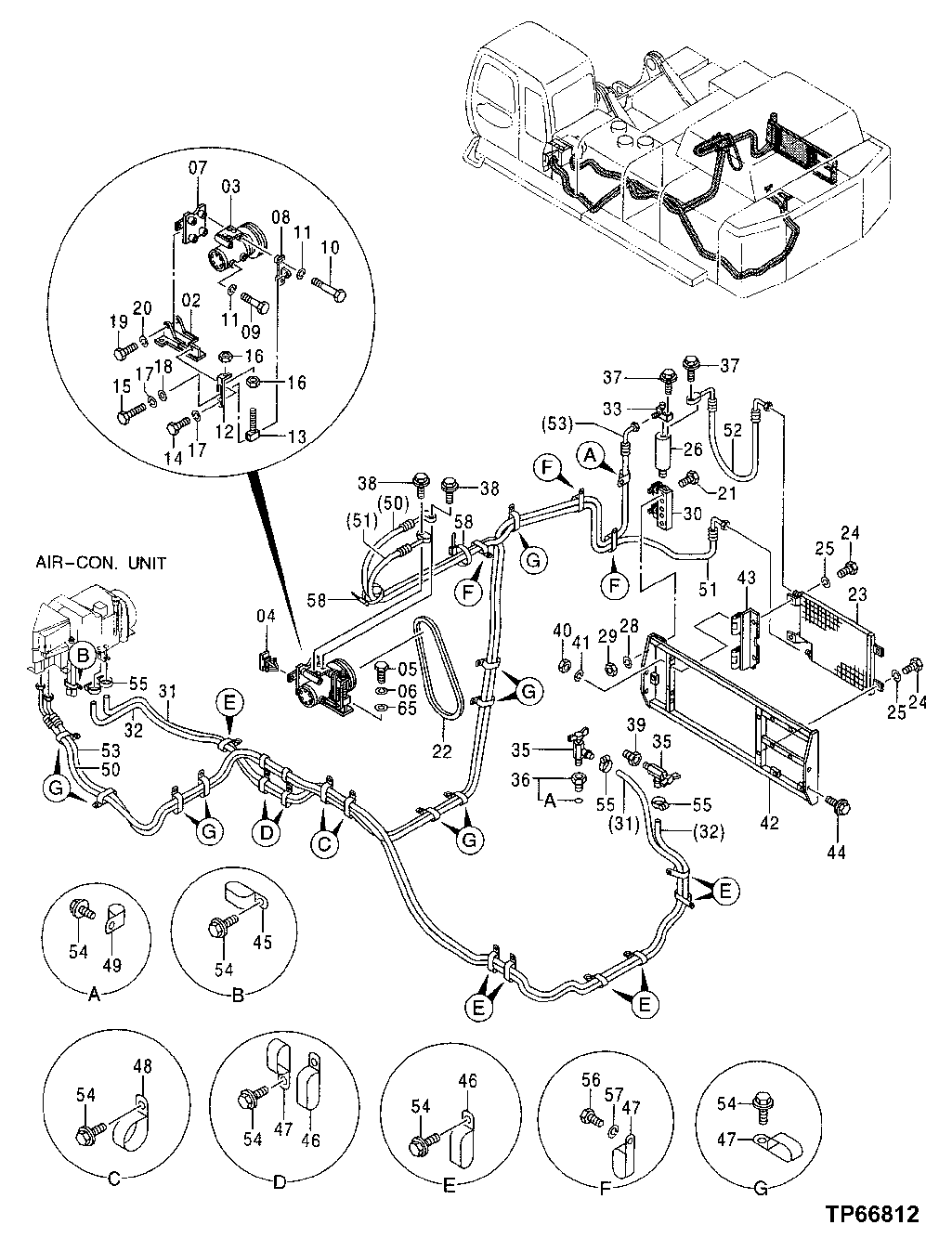

Запчасти John Deere 50 86 - Air Conditioner 1830 HEATING AND AIR CONDITIONING

2

7033815

Support

SUB FOR TH7033815

1шт.

3

4376245

Compressor

SUB FOR TH4376245

1шт.

4

4351773

Clip

SUB FOR TH4351773

1шт.

5

19H2993

Cap Screw

1/2" X 1-1/2"

2шт.

6

12H301

Lock Washer

1/2"

2шт.

7

8070451

Bracket

SUB FOR TH8070451

1шт.

8

8064222

Bracket

SUB FOR TH8064222

1шт.

9

19M8038

Cap Screw

M8 X 85 SUB FOR J900885

2шт.

10

J900804

Cap Screw

SUB FOR AT215473

2шт.

11

Washer

12M7065 NLA

4шт.

12

4344572

Strap

SUB FOR TH4344572

1шт.

13

9743911

Cap Screw

SUB FOR TH9743911

1шт.

14

TH101845

Bolt

1шт.

15

M111256

Bolt

SUB FOR THM111256

1шт.

16

14M7357

Nut

M12

2шт.

17

12H301

Lock Washer

1/2"

2шт.

18

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

19

J241230

Bolt

SUB FOR THM111230

2шт.

20

12H301

Lock Washer

1/2"

2шт.

21

19M7881

Screw

M8 X 20

2шт.

22

4365372

V-Belt

SUB FOR TH4365372

1шт.

23

4356628

Heat Exchanger

SUB FOR AT215526

1шт.

24

19M7932

Cap Screw

M8 X 16

4шт.

25

Washer

12M7065 NLA

4шт.

26

4333461

Tank

SUB FOR AT215511

1шт.

28

Washer

12M7065 NLA

2шт.

29

14M7273

Nut

M8

2шт.

30

4333462

Support

SUB FOR AT215512

1шт.

31

Hose

MAKE FROM TY22328, CUT TO LENGTH 6 600MM SUB FOR TH4294478 OR 4294478

1шт.

32

4357640

Hose

SUB FOR 4374723

1шт.

33

4374958

Adapter Fitting

SUB FOR AT181084

1шт.

35

AT35831

Drain Valve

2шт.

36

4362450

Reducer

SUB FOR TH4362450

1шт.

36A

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

1шт.

37

19M7933

Cap Screw

M6 X 25 19M7286 NLA

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

38

19M7874

Cap Screw

M6 X 30

2шт.

12H302

Lock Washer

1/4"

2шт.

39

4383804

Reducer

SUB FOR TH4383804

1шт.

40

14M7274

Nut

M10

2шт.

41

12M7066

Lock Washer

10 mm

2шт.

42

7030773

Support

SUB FOR TH7030773

1шт.

43

8064216

Bracket

SUB FOR TH8064216

1шт.

44

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

45

T32854

Clamp

1шт.

46

R50454

Clamp

SUB FOR TH109445 OR 4192034

9шт.

47

4190266

Clip

SUB FOR TH108793

14шт.

48

N198631

Clamp

SUB FOR TH109598 OR 4190265

2шт.

49

R73384

Clamp

SUB FOR TH108597 OR 4190253

1шт.

50

4375482

Refrigerant Hose

SUB FOR TH4375482

1шт.

51

4375478

Refrigerant Hose

SUB FOR TH4375478

1шт.

52

4375446

Refrigerant Hose

SUB FOR TH4375446

1шт.

53

4375389

Refrigerant Hose

SUB FOR TH4375389

1шт.

54

19M7662

Cap Screw

M10 X 30

25шт.

12M7066

Lock Washer

10 mm

25шт.

55

WZ2141223

Hose Clamp

SUB FOR AA34965

4шт.

56

19M7938

Cap Screw

M10 X 20

2шт.

57

12M7066

Lock Washer

10 mm

2шт.

58

H77698

Tie Band

2шт.

65

4086891

Washer

13 X 26 X 3.200 mm (0.512" X 1. 024" X 0.126") SUB FOR TH104166

2шт.
