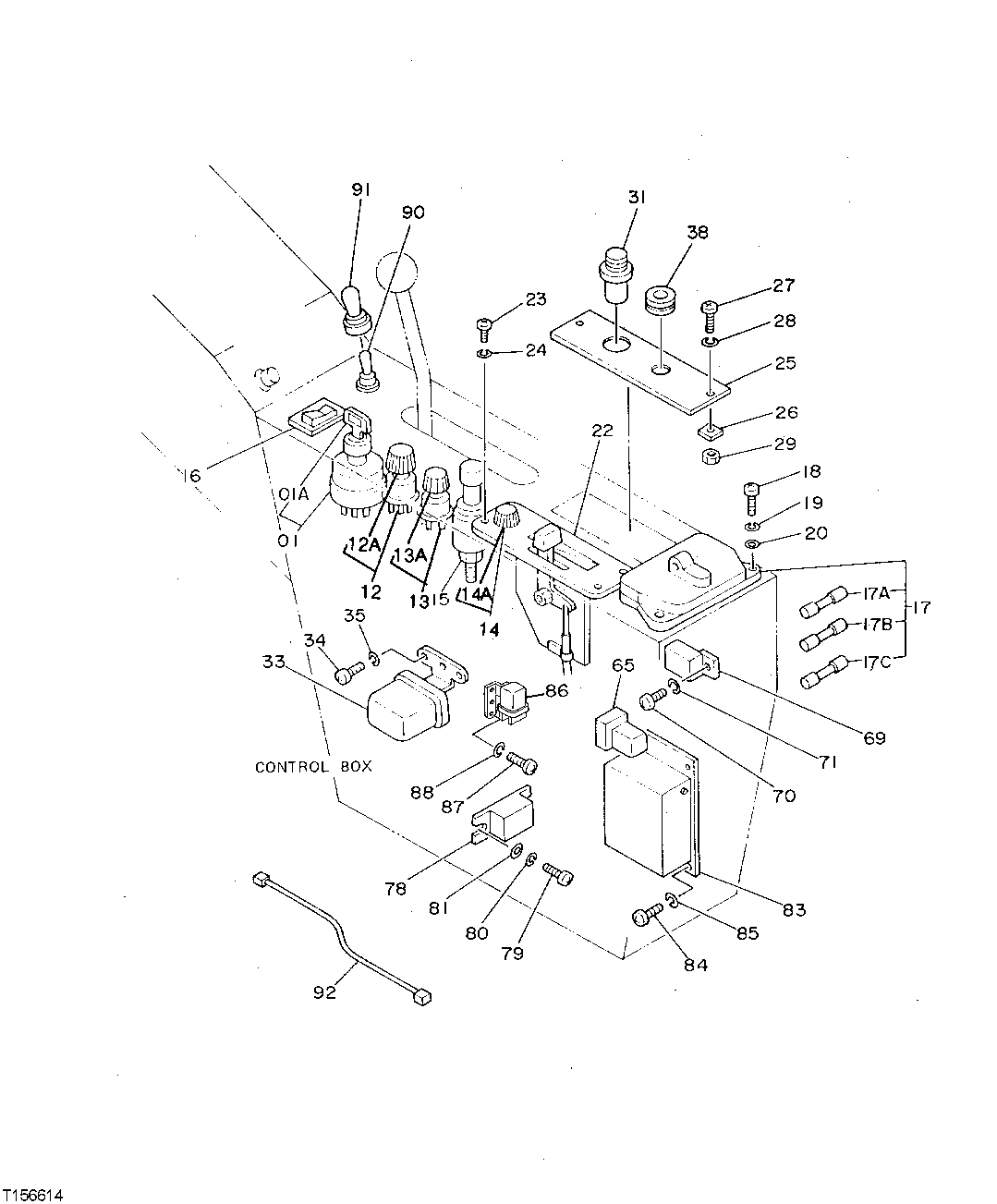

Запчасти John Deere 0D 2 - ELECTRIC PARTS 1674 - ELECTRICAL SYSTEM 16

1

4237505

SWITCH

(SUB FOR TH108551 OR 4186744) (STARTER)

1шт.

1A

AT194969

KEY

(SUB FOR TH108552 AND AT147803)

1шт.

12

4184396

SWITCH

(SUB FOR TH108556) LIGHT

1шт.

12A

4268740

KNOB

(SUB FOR AT130799)

1шт.

13

4184398

SWITCH

(SUB FOR TH108559) WIPER

1шт.

13A

4268741

KNOB

(SUB FOR AT130801)

1шт.

14

4184397

SWITCH

(SUB FOR TH108557) BLOWER

1шт.

14A

4268750

KNOB

(SUB FOR AT130800)

1шт.

15

AR60937

ELECTRICAL LIGHTER

(SUB FOR TH108558, ALONG WITH AT78633, AT78634 AND AU42809) (CIGAR) (12 VOLT)

1шт.

AT78633

HOUSING

(12 VOLT)

1шт.

AT78634

WIRING LEAD

(12 VOLT)

1шт.

AU42809

RESISTOR

(12 VOLT)

1шт.

ELECTRICAL LIGHTER

( 4357862 NO LONGER AVAILABLE) (SUB FOR AT190190) (24 VOLT)

1шт.

16

SWITCH

(MODE SELECT) (SUB TH112234 ALONG WITH TH112235)

1шт.

4251778

SWITCH

(SUB FOR TH112234) (MODE SELECT)

1шт.

17

4205437

FUSE BOX

(SUB FOR TH108560)

1шт.

17A

AT58169

FUSE

1 AMP

3шт.

17B

AT28077

FUSE

10 AMP, (SUB FOR TH108562) (DOME LIGHT, HEATER, WIPER, HORN, CONTROLLER, MONITOR)

9шт.

17C

AT39227

FUSE

15 AMP, (SUB FOR TH104047) (WORK LIGHTS, LIGHTER)

5шт.

18

21M7277

SCREW

M6 X 25

2шт.

19

12M7006

LOCK WASHER

6 MM, (SUB FOR TH103470)

2шт.

20

24M7054

WASHER

6.400 X 12 X 1.600 MM

2шт.

22

4456566

CONTROL

HEATER, (SUB FOR 4189169, ALSO ORDER 4248908)

1шт.

4248908

CABLE

(SUB FOR AT194604)

1шт.

23

21M7396

SCREW

M4 X 10

4шт.

24

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

4шт.

25

4200522

PLATE

(SUB FOR TH108564)

1шт.

26

4200521

PLATE

(SUB FOR TH108565)

2шт.

27

21M7455

SCREW

M6 X 20, (SUB FOR 21M7085)

2шт.

28

12M7006

LOCK WASHER

6 MM

2шт.

29

14M7272

NUT

M6

2шт.

31

4155755

SWITCH

(SUB FOR TH101582) (ETHER START AID)

1шт.

33

4505392

RELAY

(SUB FOR TH100585) HORN

1шт.

34

21M7288

SCREW

M6 X 10, (SUB FOR TH100547)

2шт.

35

12M7006

LOCK WASHER

6 MM

2шт.

38

4146754

BUMPER

(SUB FOR TH100572)

1шт.

65

4192489

DIODE

(SUB FOR TH110500)

1шт.

69

4205029

RELAY

(SUB FOR TH108573) (LOAD DUMP RELAY WITH DIODE)

1шт.

70

21M7288

SCREW

M6 X 10, (SUB FOR TH100547)

1шт.

71

12M7006

LOCK WASHER

6 MM

1шт.

77

14M7165

LOCK NUT

M6, (STARTER RELAY TERMINALS)

2шт.

78

AT85258

RELAY

(STARTER) (WITHOUT BLADE) (SUB AT145341, ALONG WITH (2) T28583 CONNECTORS)

1шт.

AT145341

RELAY

(WITHOUT BLADE) (STARTER)

1шт.

AT85258

RELAY

(SUB AT145341) (WITH BLADE) (STARTER)

1шт.

AT145341

RELAY

(WITH BLADE) (STARTER)

1шт.

79

21M7267

SCREW

M6 X 20

3шт.

80

12M7006

LOCK WASHER

6 MM

3шт.

81

24M7054

WASHER

6.400 X 12 X 1.600 MM

3шт.

83

9062123

PANEL

(SUB FOR TH110961) (CONTROL UNIT)

1шт.

84

21M7288

SCREW

M6 X 10

4шт.

85

12M7006

LOCK WASHER

6 MM

4шт.

86

4357038

RELAY

(SUB FOR AT82709) (AUTO IDLE)

1шт.

87

21M7278

SCREW

M5 X 10

2шт.

88

12M7064

LOCK WASHER

5 MM

2шт.

90

AN15089

TOGGLE/ROCKER SWITCH

(AUTO IDLE)

1шт.

91

4042098

CAP

(SUB FOR TH103939)

1шт.

92

4251779

WIRING HARNESS

(SUB FOR TH112235) (MODE SELECT SWITCH)

1шт.
