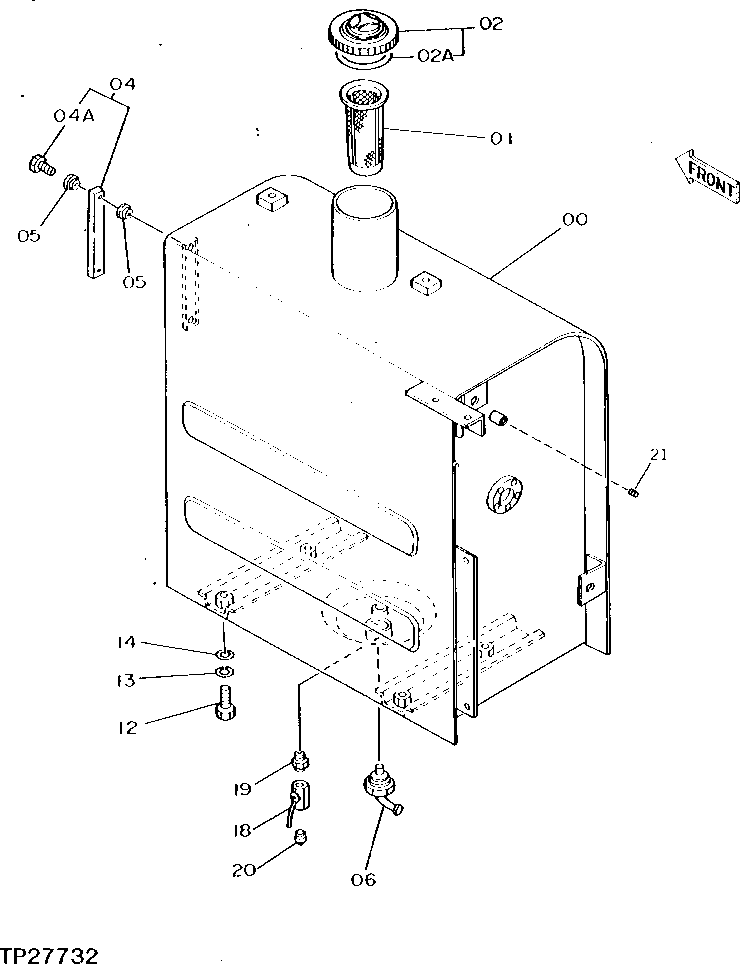

Запчасти John Deere 0D 2 - FUEL TANK 564 - ENGINE AUXILIARY SYSTEM 5

0

9070626

FUEL TANK

(SUB FOR TH110789)

1шт.

1

4121496

FUEL FILTER

(SUB FOR TH100509)

1шт.

2

AT321249

FILLER CAP

(SUB FOR TH108249, AT175989 OR 4361638) (KEY LOCKABLE) (ORDER KEY SEPARATELY)

1шт.

AT194969

KEY

(SUB FOR AT147803) (H800) (NOT ILLUSTRATED)

1шт.

AT323462

FILLER CAP

(SUB FOR TH108249, AT175989 OR 4361638) (CAN BE LOCKED WITH PADLOCK) (PADLOCK NOT INCLUDED)

1шт.

2A

4168820

PACKING

(SUB FOR TH103384) (FOR USE WITH TH108249 FUEL CAP)

1шт.

4

8033923

LEVEL GAUGE

(SUB FOR TH108250)

1шт.

4A

4100967

BOLT

(SUB FOR TH101894)

2шт.

5

449558

WASHER

(SUB FOR TH100675)

4шт.

6

9726772

FITTING

(SUB FOR TH108251)

1шт.

12

19M8035

CAP SCREW

M16 X 35

4шт.

13

12H294

LOCK WASHER

5/8"

4шт.

14

4114405

WASHER

17 X 32 X 4.500 MM (0.669" X 1.260" X 0.177") (SUB FOR TH101105)

4шт.

18

4374265

DRAIN VALVE

(SUB FOR TH111035) (SUB FOR AT177419)

1шт.

19

T116057

FITTING

(SUB FOR TH101997)

1шт.

20

M800462

PLUG

(SUB FOR TH101049)

1шт.

21

94-2024

FITTING PLUG

(SUB FOR TH101292) (WITHOUT BLADE)

1шт.

94-2024

FITTING PLUG

(SUB FOR TH101292) (WITH BLADE)

1шт.
